YK-42D2488-02GZ-100M Stepper Linear Actuator with Brake, 100mm Stroke, High Precision Electric Slide

YK-42D2488-02GZ-100M Electric Linear Slide – 100mm Stroke, Stepper Motor with Brake, High Precision Actuator

Discover YK-42D2488-02GZ-100M – a 100mm stroke linear slide actuator with brake-equipped stepper motor, ±5μm repeatability, and 100N thrust. Built for precision automation.

    Contact us Download
    Detail description
    Technical parameter

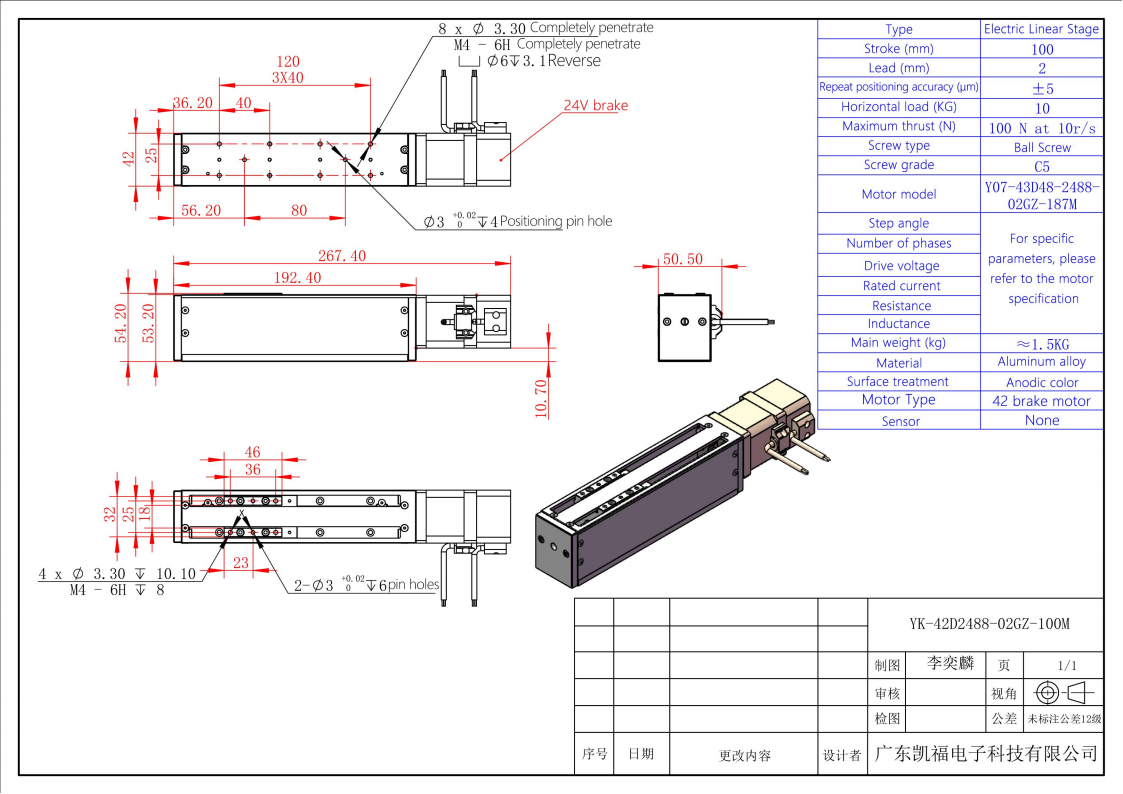

    Product size
    drawing
    The YK-42D2488-02GZ-100M is a precision electric linear actuator equipped with a 42mm stepper motor with brake, designed for applications requiring stable positioning even during power loss. It features a 100mm stroke, a 2mm lead screw, and delivers ±5μm repeatability, ensuring high accuracy and fine motion control. With a maximum thrust of 100N and horizontal load capacity of 10kg, this actuator is ideal for automated inspection, pick-and-place machines, and robotics systems. The brake mechanism ensures safety and reliability, especially in vertical installations or emergency stops. Its compact form factor (42×54.2×267.4mm) supports easy integration into space-limited designs.

    ●Motor configuration and performance parameters

    Model Number

    YK-42D2488-02GZ-100M

     Dimensions (mm)

    42*54.2*267.4

     Stroke (mm)

    100

     Lead (mm)

    2

     Repeatability (μm)

    ±5

    Horizontal Load (kg)

    10

     Max Thrust (N)

    100

     Motor Model

    42 Brakes

     Sensor

    /

     Motor Type

    Y07-43D48-2488-02GZ-187M
    YK-42D2488-02GZ-100M_01
