YK-35D4708-06GZ-150M-I Linear Actuator | 150mm Stroke, Stepper with Brake & Sensor

YK-35D4708-06GZ-150M-I Linear Actuator – 150mm Stroke, Stepper Motor with Brake & Built-in Sensor

Get high-precision motion with the YK-35D4708-06GZ-150M-I linear actuator. Features 150mm stroke, brake stepper motor, and built-in sensor.

    Contact us Download
    Detail description
    Technical parameter
    Product size

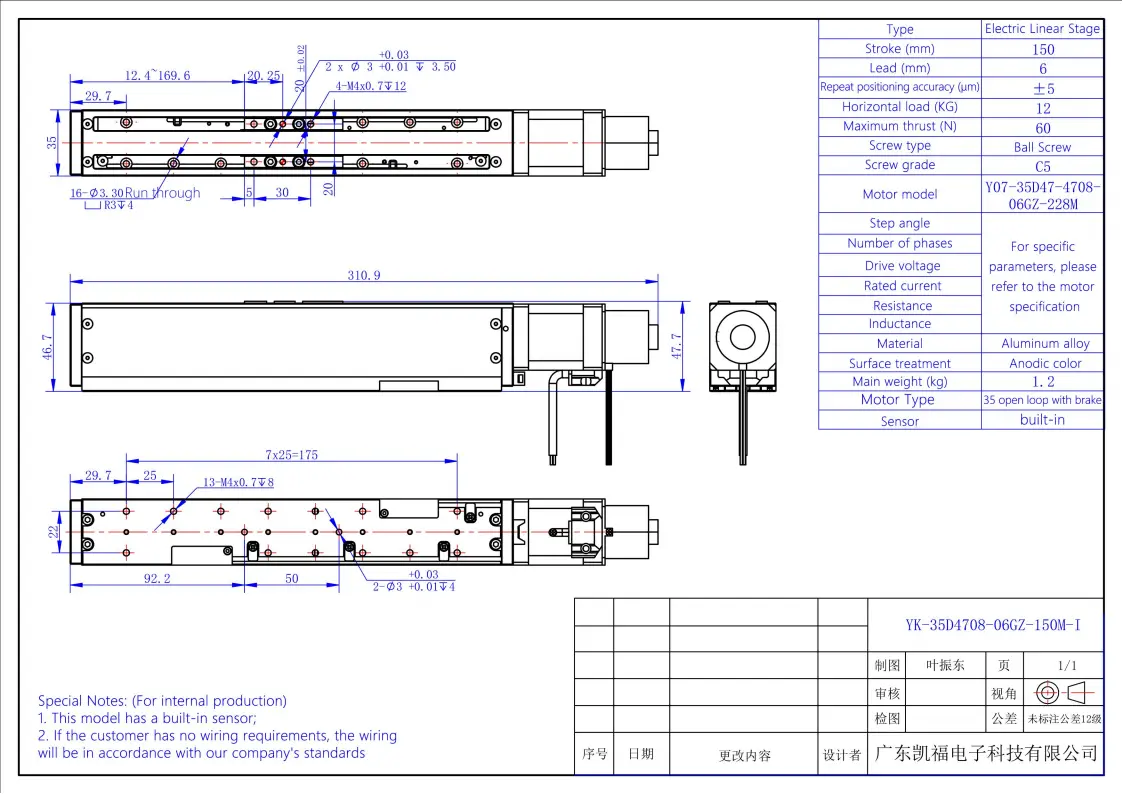

    drawing
    The YK-35D4708-06GZ-150M-I is a precision-engineered linear actuator offering a 150 mm stroke with a 6 mm lead, designed for applications requiring extended travel and high repeatability. With ±5 μm repeatability and 60 N maximum thrust, it easily handles horizontal loads up to 12 kg. This model integrates a 35mm open-loop stepper motor with brake (Y07-35D47-4708-06GZ-228M), ensuring secure position holding even during power loss. The built-in sensor provides enhanced feedback for accurate motion control. Ideal for automation systems, inspection platforms, or compact industrial equipment requiring reliable and safe linear motion.

    ●Motor configuration and performance parameters

    Model Number

    YK-35D4708-06GZ-150M-I

     Dimensions (mm)

    35*47.7*310.9

     Stroke (mm)

    150

     Lead (mm)

    6

     Repeatability (μm)

    ±5

    Horizontal Load (kg)

    12

     Max Thrust (N)

    60

     Motor Model

    35 open loop with brake

     Sensor

    built-in

     Motor Type

    Y07-35D47-4708-06GZ-228M
    YK-35D4708-06GZ-150M-I_01
