YK-35D4706-06GZ-50 Linear Actuator | 50mm Stroke, 6mm Lead, Stepper Motor

YK-35D4706-06GZ-50 Electric Linear Actuator – 50mm Stroke, 6mm Lead, Open-Loop Stepper Motor

High-speed 50mm linear actuator YK-35D4706-06GZ-50 with 6mm lead, 60N thrust, and ±5μm repeatability. Ideal for fast, accurate automation tasks.

    Contact us Download
    Detail description
    Technical parameter
    Product size
    drawing
    The YK-35D4706-06GZ-50 is a compact electric linear actuator designed for fast and precise positioning. It features a 50 mm stroke and a 6 mm lead screw, offering quick movement and ±5 μm repeatability for high-precision tasks. With a robust design measuring 35×45.7×181.4 mm, it supports up to 12 kg horizontal load and delivers a maximum thrust of 60 N. Powered by a 35mm open-loop stepper motor (model Y07-35D47-4706-06GZ-128), this actuator is ideal for automation tasks requiring compact size, high speed, and reliable accuracy—such as small-scale assembly, inspection, and lab automation systems.

    ●Motor configuration and performance parameters

    Model Number

    YK-35D4706-06GZ-50

     Dimensions (mm)

    35*45.7*181.4

     Stroke (mm)

    50

     Lead (mm)

    6

     Repeatability (μm)

    ±5

    Horizontal Load (kg)

    12

     Max Thrust (N)

    60

     Motor Model

    35 Open loop

     Sensor

    /

     Motor Type

    Y07-35D47-4706-06GZ-128

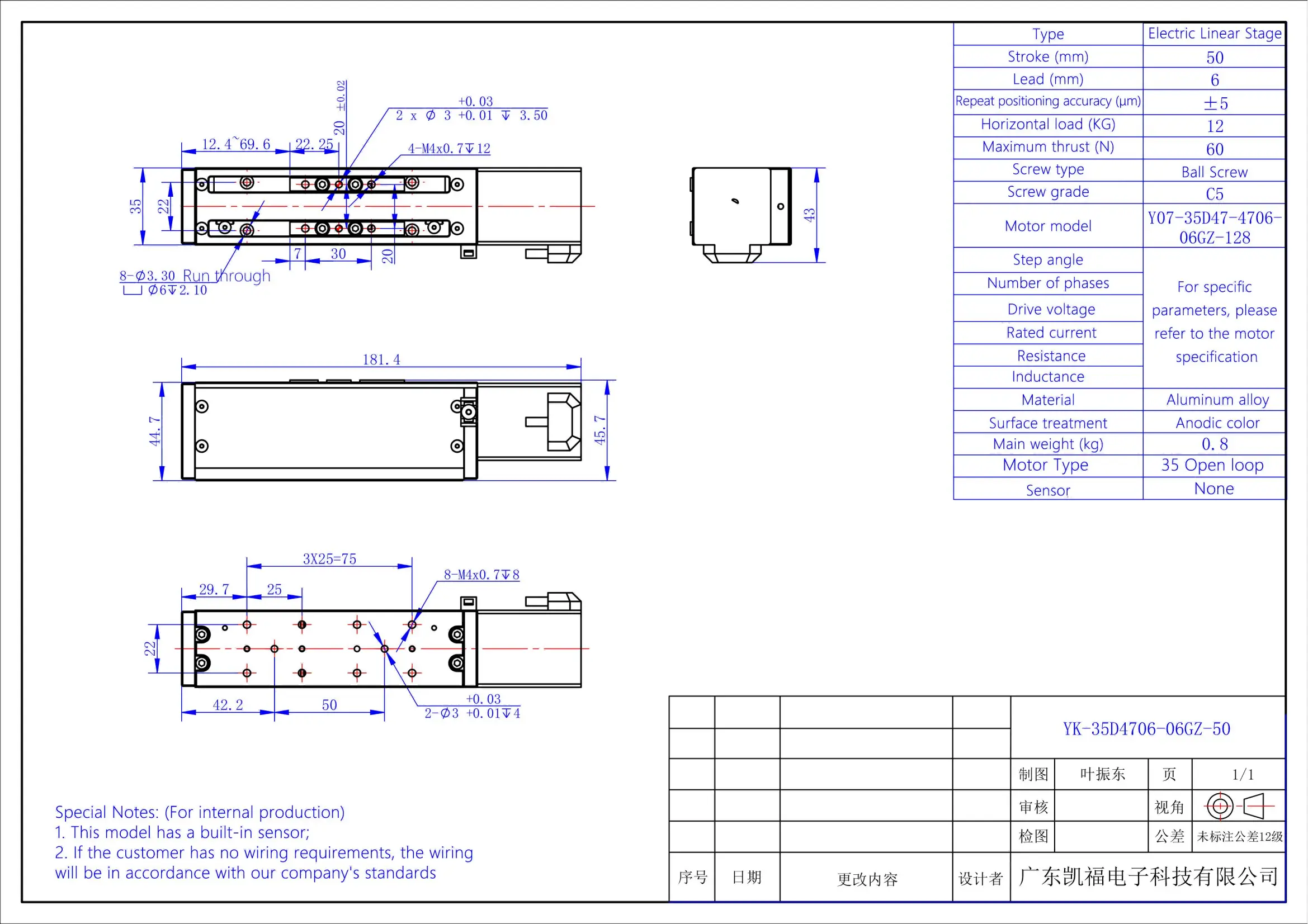

    YK-35D4706-06GZ-50_01(1)
