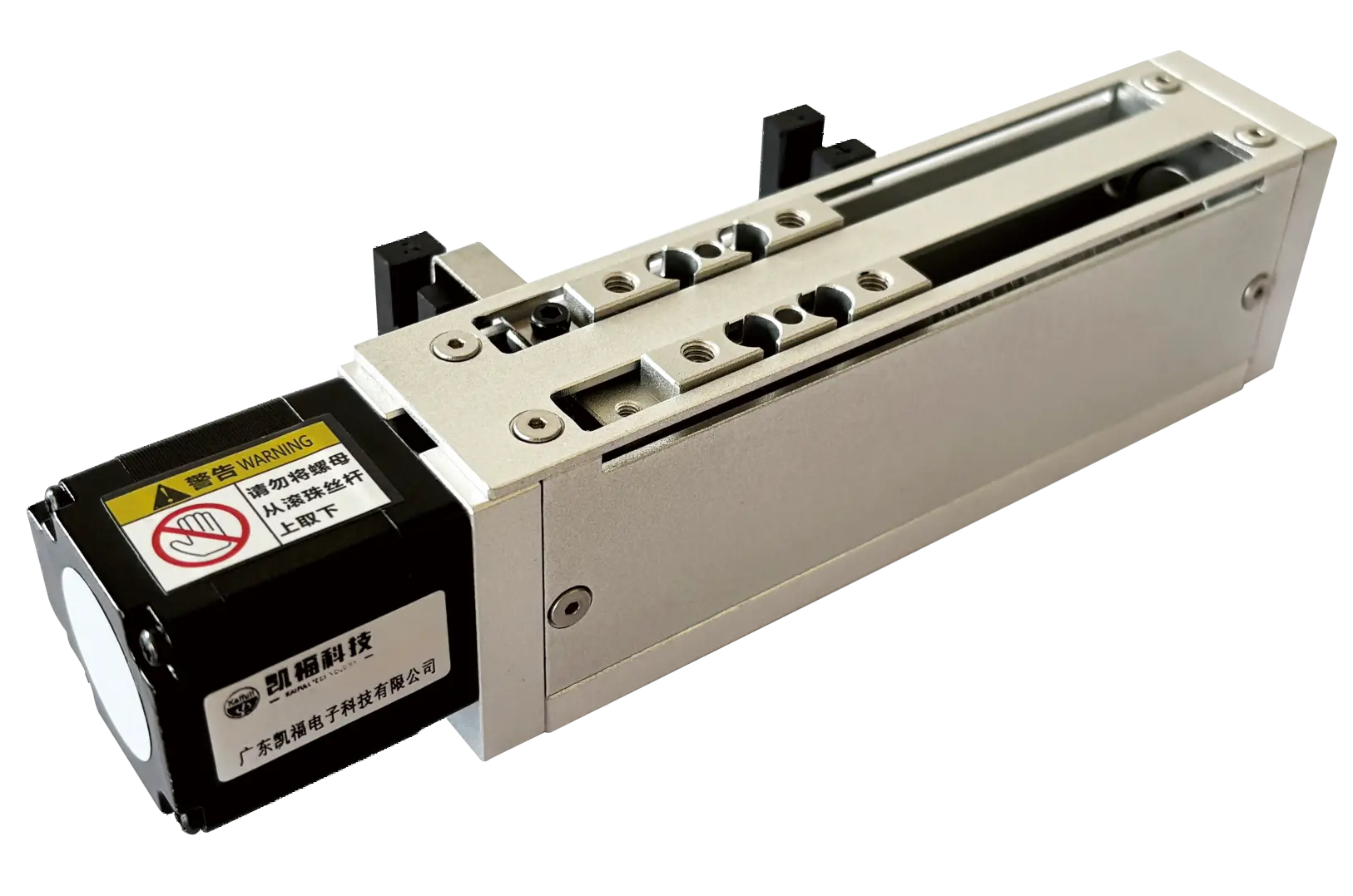

YK-35D4706-06GZ-150 Linear Actuator | 150mm Stroke, Stepper Motor Drive

YK-35D4706-06GZ-150 Linear Actuator – 150mm Stroke, 6mm Lead, Open-Loop Stepper Motor

Explore the YK-35D4706-06GZ-150 linear actuator with 150mm stroke, 6mm lead, ±5μm repeatability, and open-loop stepper motor. Perfect for automation.

    Contact us Download
    Detail description
    Technical parameter
    Product size

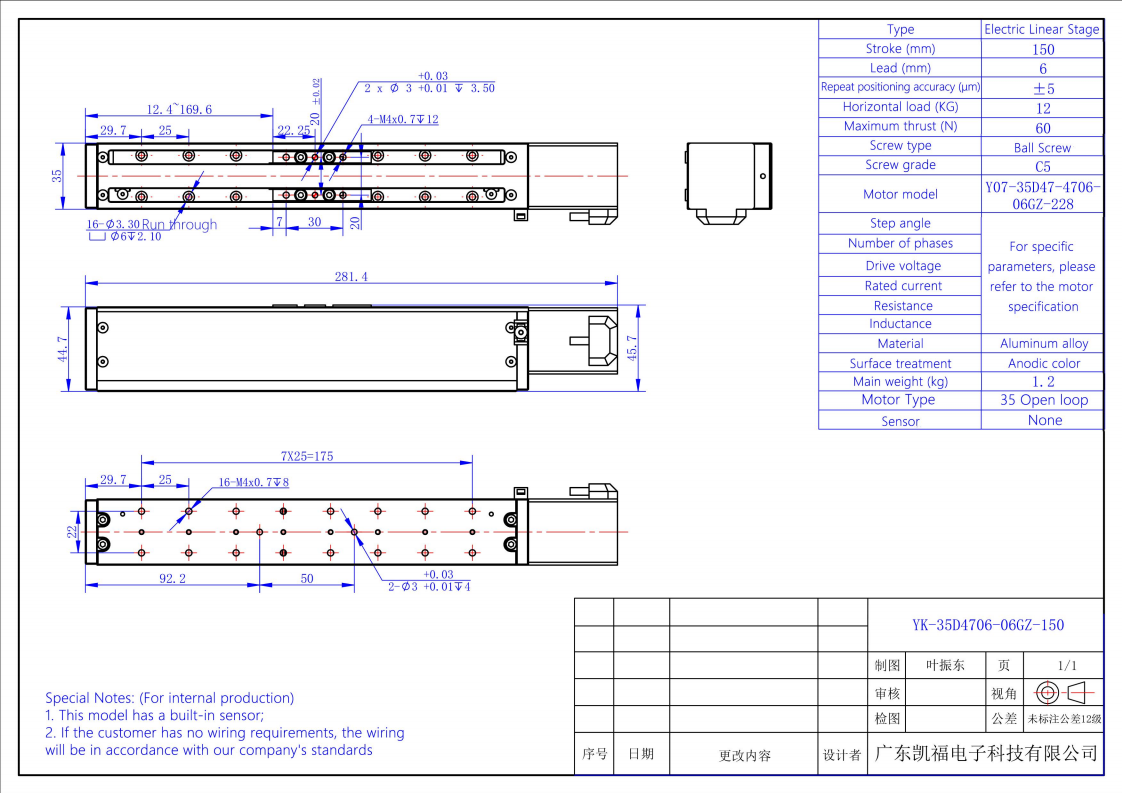

    drawing
    The YK-35D4706-06GZ-150 is a high-performance linear actuator designed for precise and efficient motion in compact spaces. With a 150 mm stroke, 6 mm lead screw, and ±5 μm repeatability, it offers smooth and accurate linear positioning. The actuator can handle 12 kg horizontal load and delivers up to 60 N of thrust, making it suitable for lightweight automation tasks. Driven by a 35mm open-loop stepper motor (model Y07-35D47-4706-06GZ-228), it ensures stable operation with minimal maintenance. Ideal for use in laboratory automation, inspection systems, and miniature production equipment.

    ●Motor configuration and performance parameters

    Model Number

    YK-35D4706-06GZ-150

     Dimensions (mm)

    35*45.7*281.4

     Stroke (mm)

    150

     Lead (mm)

    6

     Repeatability (μm)

    ±5

    Horizontal Load (kg)

    12

     Max Thrust (N)

    60

     Motor Model

    35 Open loop

     Sensor

    /

     Motor Type

    Y07-35D47-4706-06GZ-228
    YK-35D4706-06GZ-150_01
