YK-35D4706-06GZ-100 Linear Actuator | 100mm Stroke, 6mm Lead

YK-35D4706-06GZ-100 Linear Actuator – 100mm Stroke, 6mm Lead, Open-Loop Stepper Motor

YK-35D4706-06GZ-100 electric linear actuator with 100mm stroke, 6mm lead, and ±5μm repeatability. Open-loop stepper motor, ideal for compact automation systems.

    Contact us Download
    Detail description
    Technical parameter
    Product size

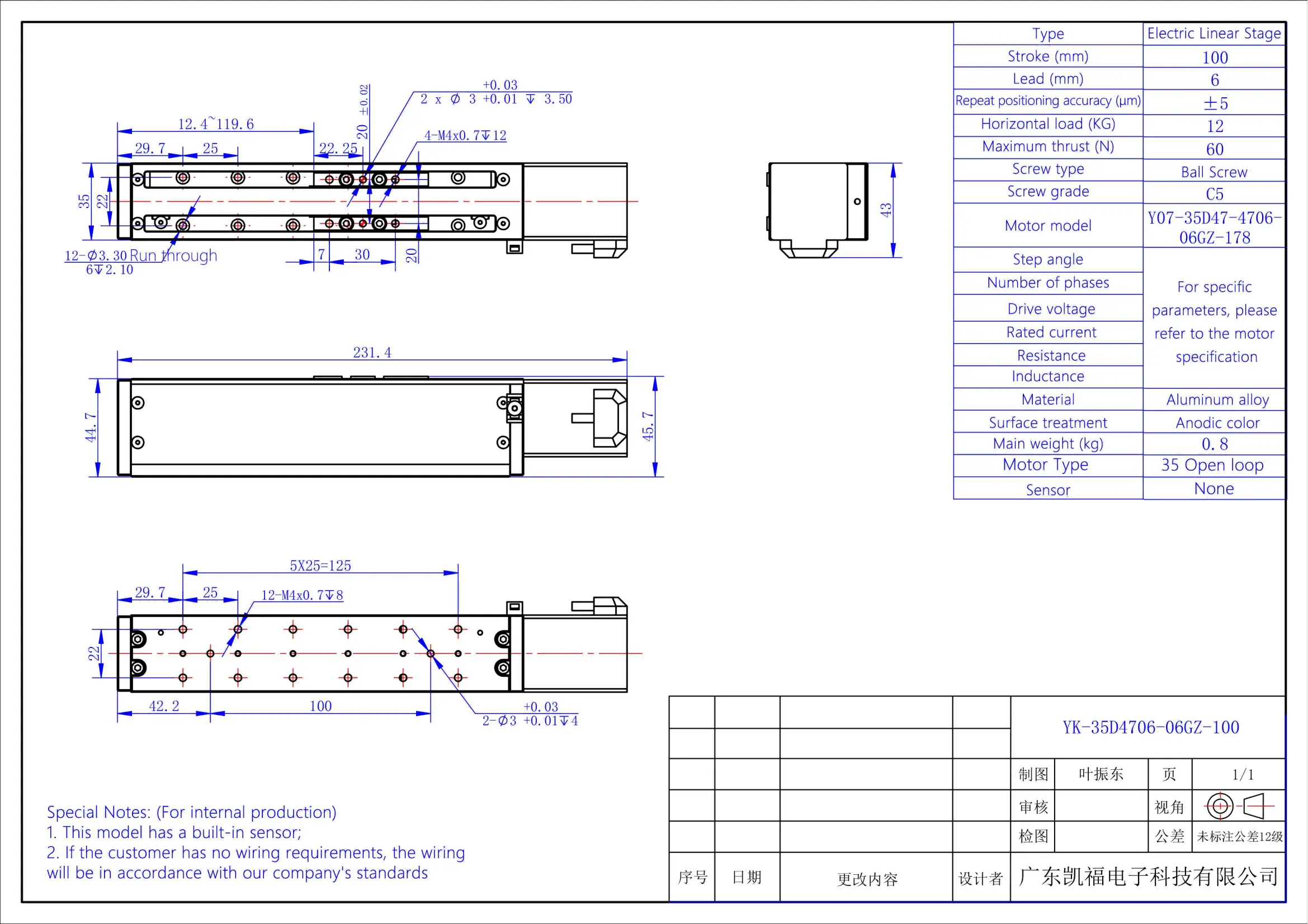

    drawing
    The YK-35D4706-06GZ-100 is a high-efficiency electric linear actuator built for speed and accuracy in compact automation systems. Featuring a 100 mm stroke and a 6 mm lead screw, it offers fast linear movement with ±5 μm repeatability, ensuring precise performance. With dimensions of 35×45.7×231.4 mm, it supports up to 12 kg horizontal load and delivers 60 N maximum thrust. Powered by a 35mm open-loop stepper motor (model Y07-35D47-4706-06GZ-178), this actuator is an excellent solution for applications requiring quick positioning, such as material transfer, testing systems, or lightweight pick-and-place equipment.

    ●Motor configuration and performance parameters

    Model Number

    YK-35D4706-06GZ-100

     Dimensions (mm)

    35*45.7*231.4

     Stroke (mm)

    100

     Lead (mm)

    6

     Repeatability (μm)

    ±5

    Horizontal Load (kg)

    12

     Max Thrust (N)

    60

     Motor Model

    35 Open loop

     Sensor

    /

     Motor Type

    Y07-35D47-4706-06GZ-178
    YK-35D4706-06GZ-100_01(1)
