YK-35D4706-02GZ-50 Linear Actuator | 50mm Stroke, 35mm Open-Loop Stepper Motor

YK-35D4706-02GZ-50 Electric Linear Slide – 50mm Stroke, 2mm Lead, 35mm Open-Loop Stepper Motor

Explore the YK-35D4706-02GZ-50 electric linear actuator with 50mm stroke, 2mm lead, and 12kg load capacity—ideal for compact precision automation.

    Contact us Download
    Detail description
    Technical parameter
    Product size
    drawing
    The YK-35D4706-02GZ-50 electric linear slide is a compact and efficient solution for precision linear motion. Featuring a 50 mm stroke and a 2 mm lead screw, it delivers fine incremental movement with ±5 μm repeatability. The unit measures 35×45.7×181.4 mm, making it ideal for space-constrained applications. Powered by a 35-size open-loop stepper motor (model Y07-35D47-4706-02GZ-128), it can handle horizontal loads up to 12 kg and generate up to 60 N of thrust. This actuator is well-suited for automation systems requiring reliable performance without feedback sensors.

    ●Motor configuration and performance parameters

    Model Number

    YK-35D4706-02GZ-50

     Dimensions (mm)

    35*45.7*181.4

     Stroke (mm)

    50

     Lead (mm)

    2

     Repeatability (μm)

    ±5

    Horizontal Load (kg)

    12

     Max Thrust (N)

    60

     Motor Model

    35 Open loop

     Sensor

    /

     Motor Type

    Y07-35D47-4706-02GZ-128

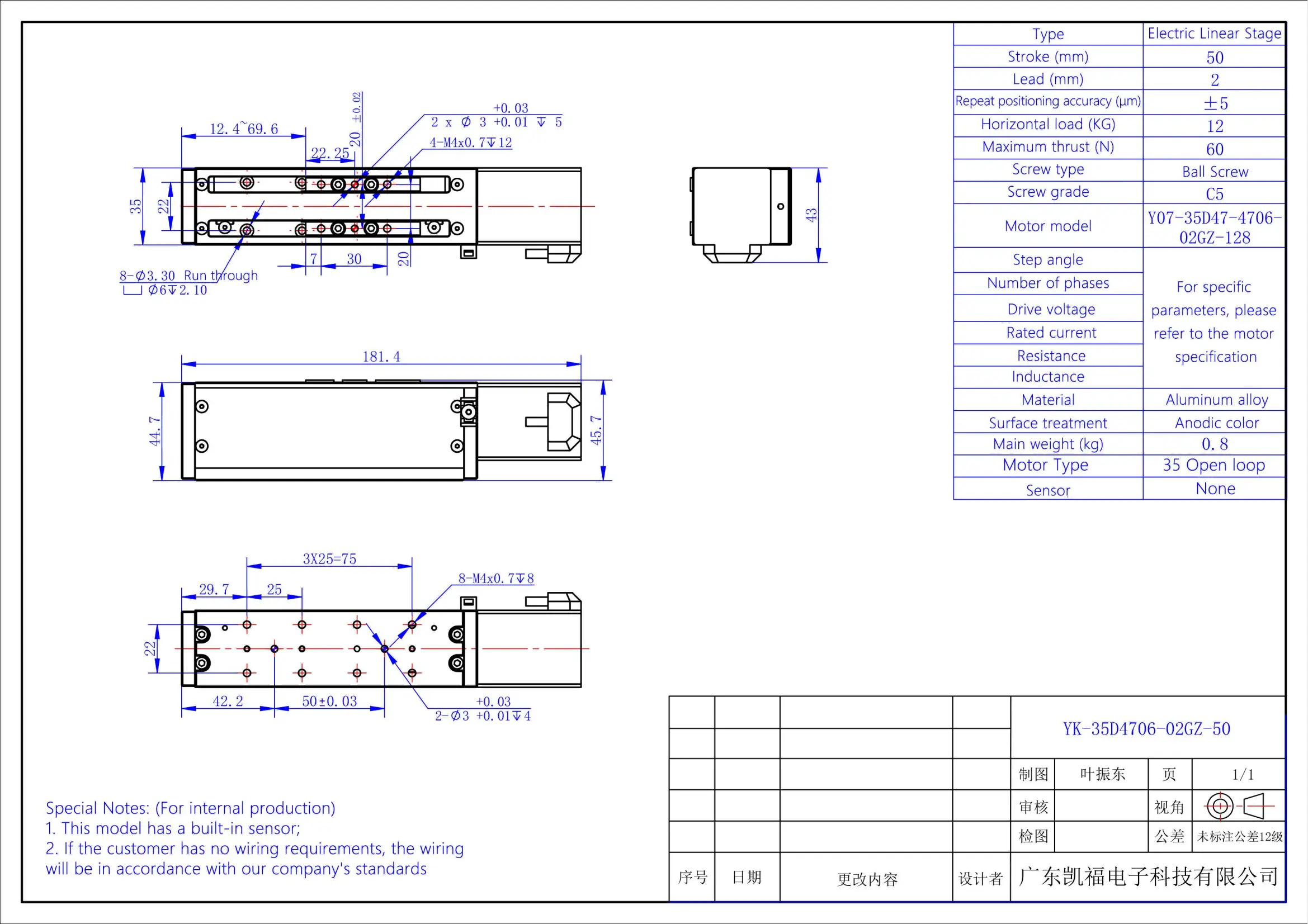

    YK-35D4706-02GZ-50_01(1)
