YK-35D4706-02GZ-100 Linear Actuator | 100mm Stroke, Open-Loop Stepper Slide

YK-35D4706-02GZ-100 Electric Linear Slide – 100mm Stroke, 2mm Lead, Open-Loop Stepper Motor

Discover the YK-35D4706-02GZ-100 linear actuator with 100mm stroke, 2mm lead, and ±5μm repeatability—perfect for accurate, space-saving automation.

    Contact us Download
    Detail description
    Technical parameter

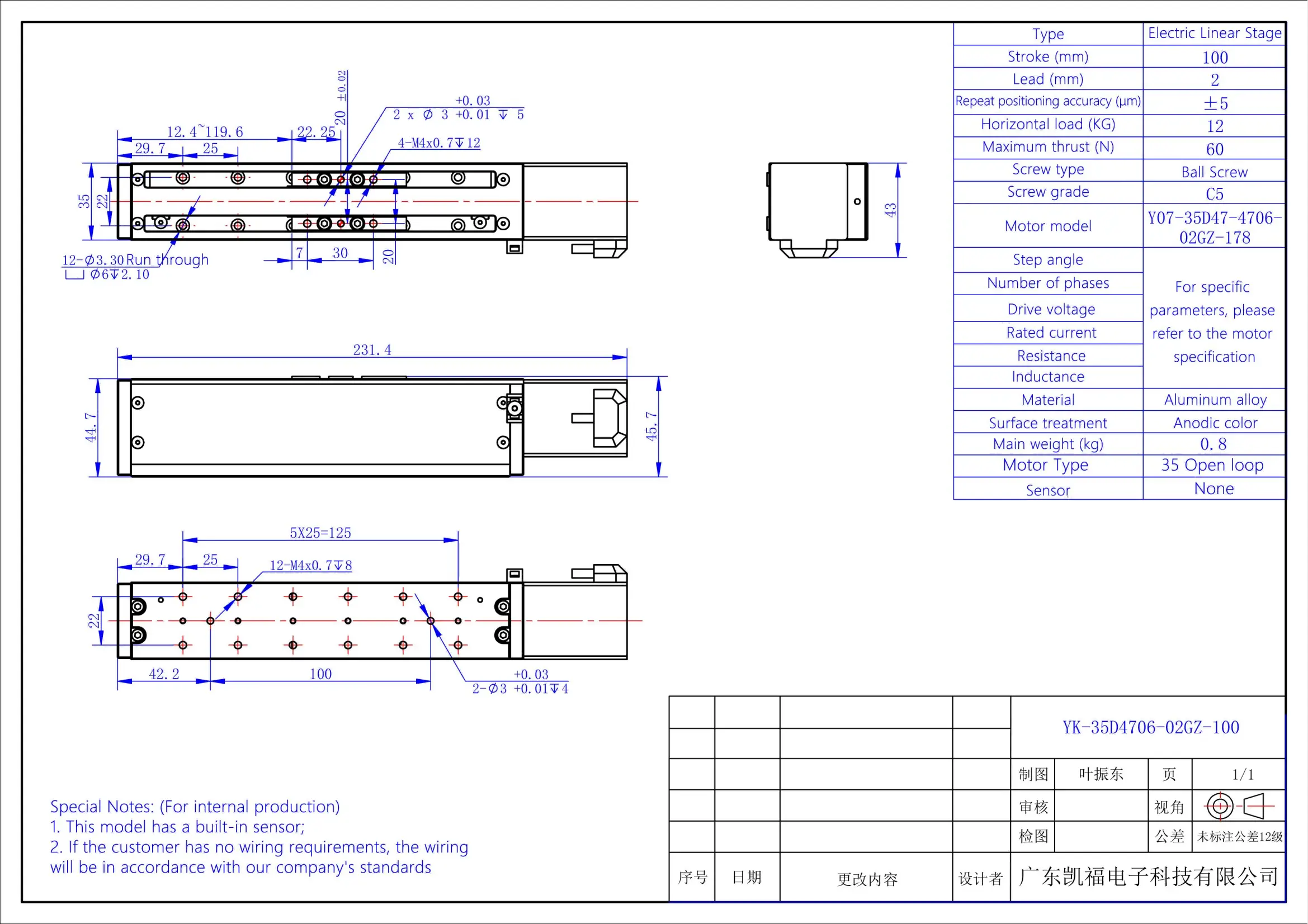

    Product size
    drawing
    The YK-35D4706-02GZ-100 electric linear slide is a reliable actuator designed for applications requiring precise and repeatable motion. Featuring a 100 mm stroke and a 2 mm lead screw, it offers ±5 μm repeatability to ensure high accuracy. The compact unit measures 35×45.7×231.4 mm and supports up to 12 kg horizontal load, with a maximum thrust of 60 N. Driven by a 35mm open-loop stepper motor (model Y07-35D47-4706-02GZ-178), this slide is ideal for light-duty automation, inspection, and pick-and-place systems where consistent motion is essential without needing a feedback sensor.

    ●Motor configuration and performance parameters

    Model Number

    YK-35D4706-02GZ-100

     Dimensions (mm)

    35*45.7*231.4

     Stroke (mm)

    100

     Lead (mm)

    2

     Repeatability (μm)

    ±5

    Horizontal Load (kg)

    12

     Max Thrust (N)

    60

     Motor Model

    35 Open loop

     Sensor

    /

     Motor Type

    Y07-35D47-4706-02GZ-178
    YK-35D4706-02GZ-100_01(1)
