YK-35D3406-06GZ-60E-I Electric Linear Slide | 60mm Stroke, Closed-Loop Actuator with Sensor

YK-35D3406-06GZ-60E-I Electric Linear Slide – 60mm Stroke, Closed-Loop Motor with 6mm Lead and Built-In Sensor

Discover the YK-35D3406-06GZ-60E-I closed-loop electric linear slide with 60mm stroke, 6mm lead, and built-in sensor for high-speed precision automation.

    Contact us Download
    Detail description
    Technical parameter
    Product size

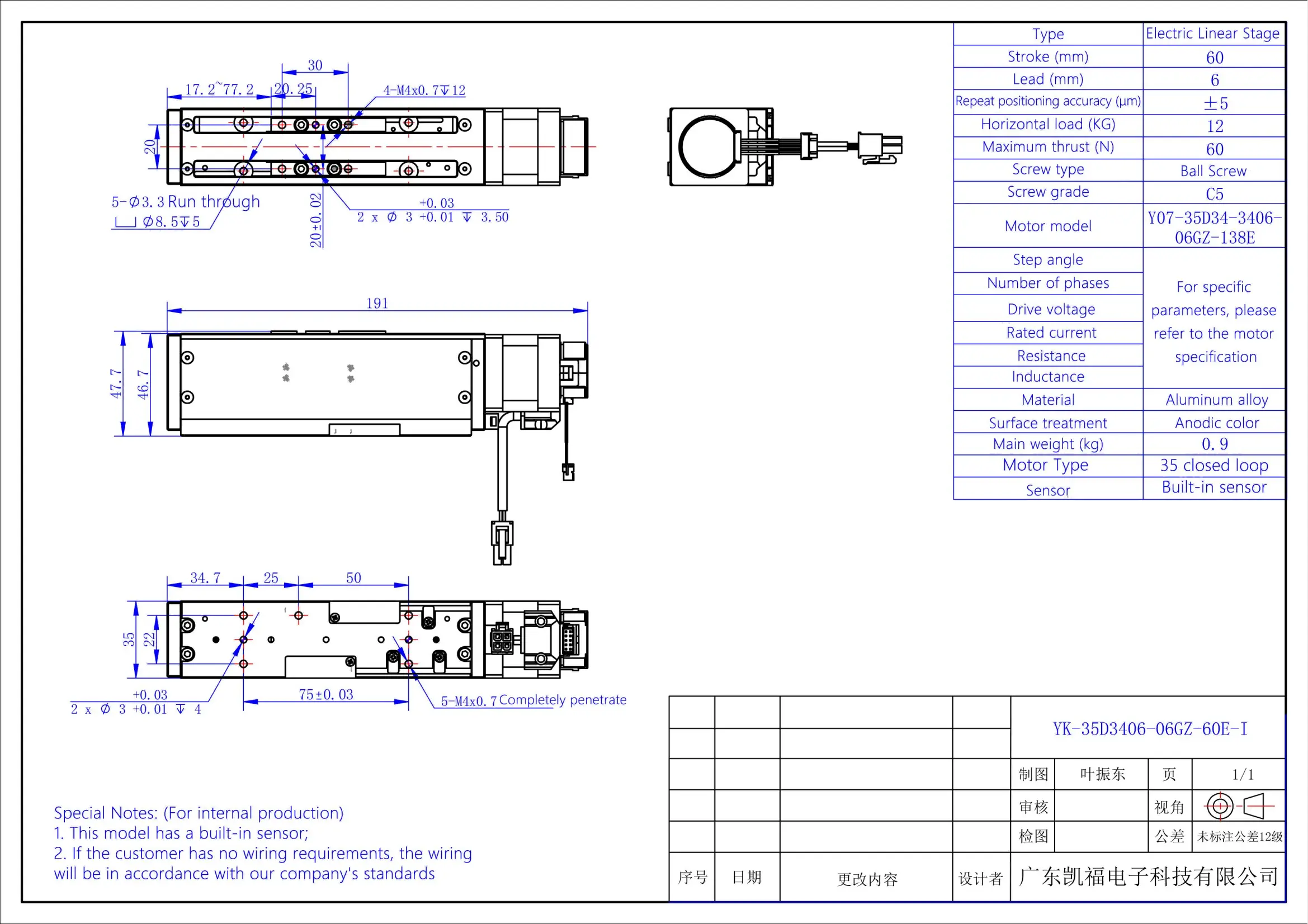

    drawing
    The YK-35D3406-06GZ-60E-I electric linear slide offers compact performance and precision motion control in a space-saving footprint of 35×47.7×191 mm. Designed with a 60 mm stroke and 6 mm lead screw, it delivers high-speed linear motion with a repeatability of ±5 μm. Powered by a 35-size closed-loop stepper motor (model Y07-35D34-3406-06GZ-138E) and equipped with a built-in sensor, it ensures stable and accurate position feedback. Capable of handling 12 kg horizontal loads and providing 60 N max thrust, it’s ideal for applications in automated inspection, micro-assembly, laboratory automation, and precision handling.

    ●Motor configuration and performance parameters

    Model Number

    YK-35D3406-06GZ-60E-I

     Dimensions (mm)

    35*47.7*191

     Stroke (mm)

    60

     Lead (mm)

    6

     Repeatability (μm)

    ±5

    Horizontal Load (kg)

    12

     Max Thrust (N)

    60

     Motor Model

    35 Closed loop

     Sensor

    built-in

     Motor Type

    Y07-35D34-3406-06GZ-138E
    YK-35D3406-06GZ-60E-I_01(1)
