YK-35D31-02GZ-200E-I Linear Actuator | 200mm Stroke, Closed-Loop Electric Slide with Sensor

YK-35D31-02GZ-200E-I Electric Linear Slide – 200mm Stroke, Closed-Loop Screw Motor with Built-In Sensor

Explore the YK-35D31-02GZ-200E-I electric linear slide featuring 200mm stroke, 150N thrust, and closed-loop screw motor with built-in sensor for precision automation.

    Contact us Download
    Detail description
    Technical parameter
    Product size

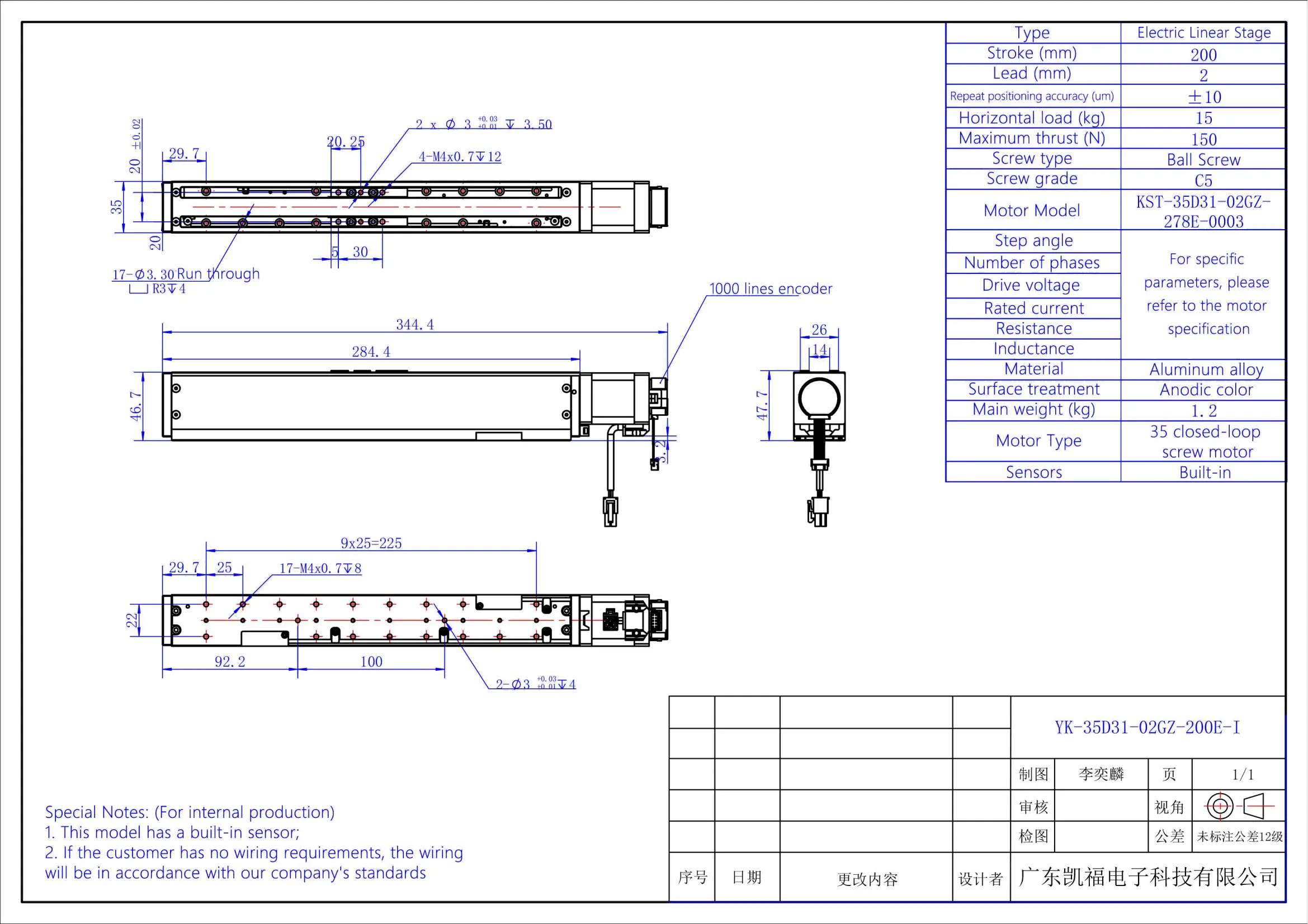

    drawing
    The YK-35D31-02GZ-200E-I is a precision-engineered electric linear slide ideal for high-performance automation systems. It features a 200 mm stroke, 2 mm lead screw, and a repeatability of ±10 μm, providing dependable motion control for demanding applications. Equipped with a 35-size closed-loop stepper motor (model KST-35D31-02GZ-278E-0003) and an integrated built-in sensor, this actuator ensures precise positioning feedback without external encoders. Supporting up to 15 kg horizontal load and delivering up to 150 N of thrust, this compact yet powerful actuator (35×47.7×344.4 mm) is suitable for automated assembly lines, robotics, inspection stations, and more.

    ●Motor configuration and performance parameters

    Model Number

    YK-35D31-02GZ-200E-I

     Dimensions (mm)

    35*47.7*344.4

     Stroke (mm)

    200

     Lead (mm)

    2

     Repeatability (μm)

    ±10

    Horizontal Load (kg)

    15

     Max Thrust (N)

    150

     Motor Model

    35 Closed loop screw motor

     Sensor

    built-in

     Motor Type

    KST-35D31-02GZ-278E-0003
    YK-35D31-02GZ-200E-I_01(1)
