YK-35D31-02GZ-150E-I Linear Slide | 150mm Stroke Closed-Loop Actuator with Sensor

YK-35D31-02GZ-150E-I Electric Linear Slide – 150mm Stroke, Closed-Loop Stepper Motor with Built-In Sensor

Discover the YK-35D31-02GZ-150E-I electric linear slide with 150mm stroke, 150N thrust, and closed-loop stepper motor with built-in sensor.

    Contact us Download
    Detail description
    Technical parameter
    Product size

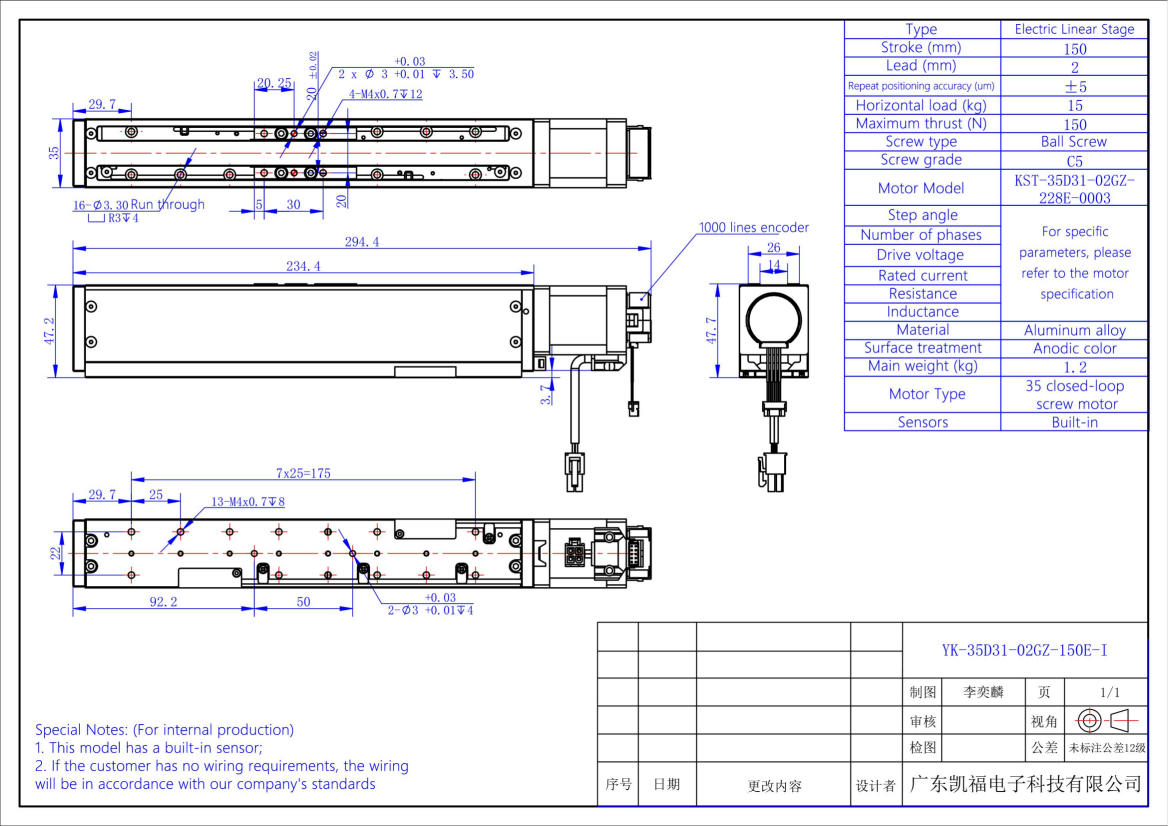

    drawing
    The YK-35D31-02GZ-150E-I electric linear slide is a high-performance actuator designed for industrial automation tasks that demand precision, strength, and integrated feedback. With a 150 mm stroke, 2 mm lead screw, and ±5 μm repeatability, it delivers exceptional positioning accuracy. Powered by a 35-size closed-loop screw motor (model KST-35D31-02GZ-228E-0003), it integrates a built-in sensor to monitor positioning without the need for external devices. The unit supports up to 15 kg of horizontal load and generates up to 150 N of thrust, all within a compact 35×47.7×294.4 mm footprint. Ideal for pick-and-place, dispensing, and automated inspection applications.

    ●Motor configuration and performance parameters

    Model Number

    YK-35D31-02GZ-150E-I

     Dimensions (mm)

    35*47.7*294.4

     Stroke (mm)

    150

     Lead (mm)

    2

     Repeatability (μm)

    ±5

    Horizontal Load (kg)

    15

     Max Thrust (N)

    150

     Motor Model

    35 Closed loop screw motor

     Sensor

    built-in

     Motor Type

    KST-35D31-02GZ-228E-0003
    YK-35D31-02GZ-150E-I_01(1)
