YK-28D3011-02GZ-30E Mini Electric Linear Slide – 30mm Stroke, 50N Thrust, ±5μm Repeatability

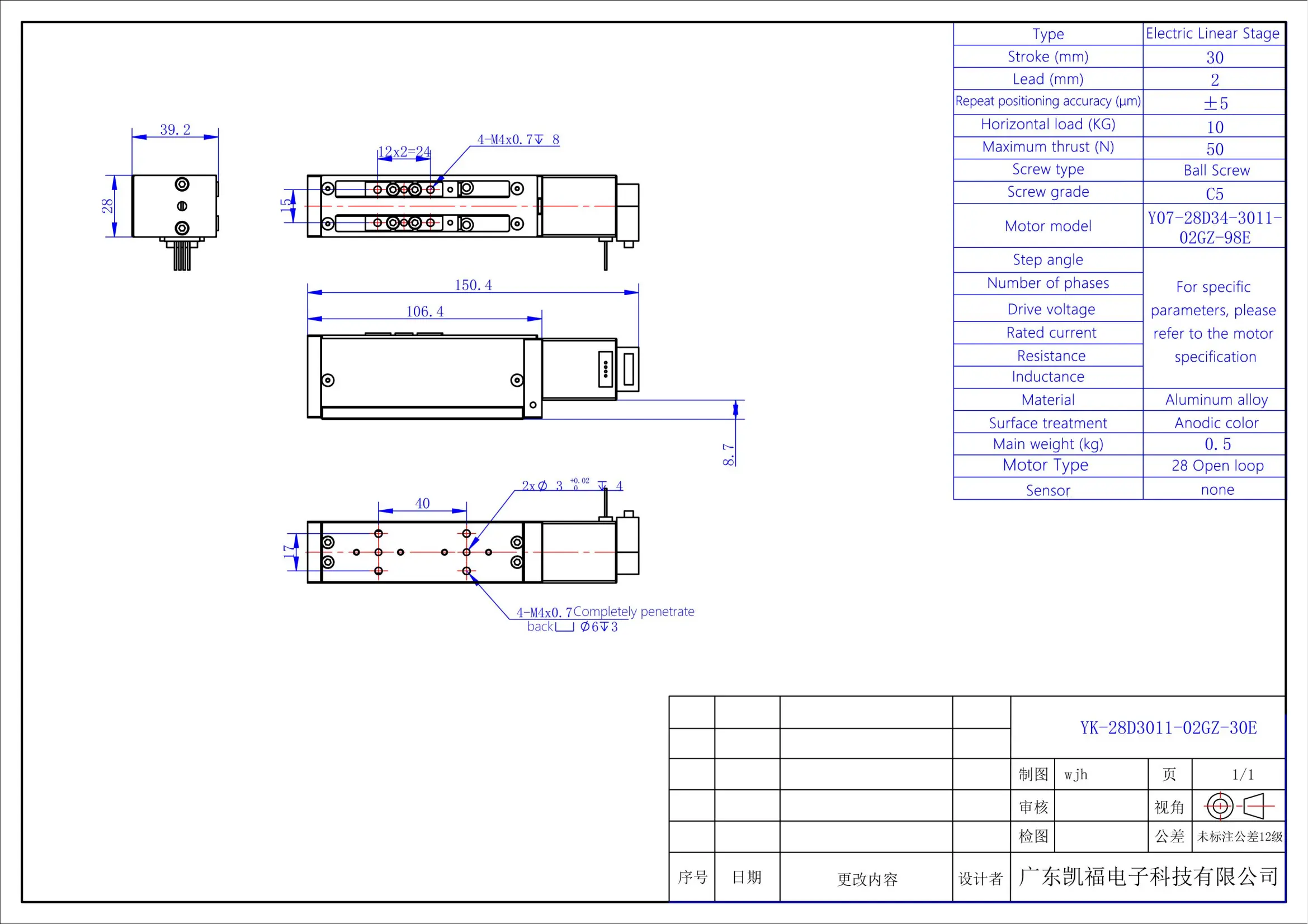

The YK-28D3011-02GZ-30E electric linear slide is a compact and high-precision actuator, designed for automation systems where space-saving and accuracy are critical. With a 30 mm stroke and a 2 mm lead, it is driven by a 28 open-loop stepper motor (Y07-28D34-3011-02GZ-98E) and delivers up to 50 N of thrust force. The unit achieves a repeatability of ±5 μm and supports a horizontal load of up to 10 kg. The structure is compact at only 28×39.2×150.4 mm, making it suitable for equipment in electronics assembly, optical positioning, or lab automation. Ideal for integration into sensorless control environments.
