YK-28D3011-02GZ-30 Linear Slide | Compact Electric Actuator with 50N Thrust

YK-28D3011-02GZ-30 Compact Electric Linear Slide – 30mm Stroke, 50N Thrust, ±5μm Repeatability

Discover the YK-28D3011-02GZ-30 compact electric linear slide with 30mm stroke, 50N thrust, and ±5μm repeatability. Ideal for precision automation.

    Contact us Download
    Detail description
    Technical parameter
    Product size

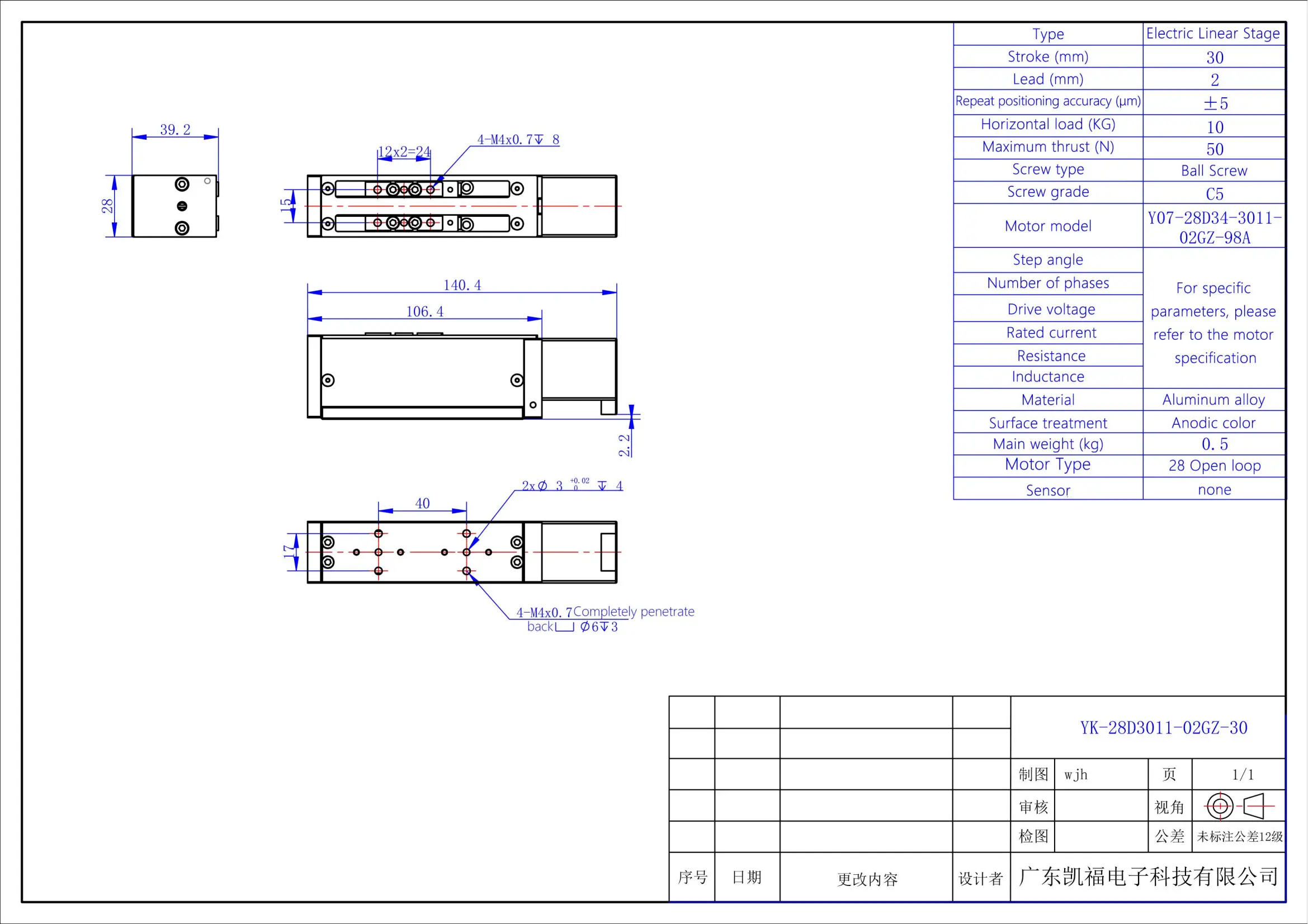

    drawing
    The YK-28D3011-02GZ-30 electric linear slide offers precise, compact motion control for automation tasks requiring high accuracy and limited space. With a stroke of 30 mm and a 2 mm lead, it delivers smooth, linear positioning supported by a 28 open-loop stepper motor (Y07-28D34-3011-02GZ-98A). This unit achieves a repeatability of ±5 μm and a maximum thrust of 50 N, handling horizontal loads up to 10 kg. Designed without a built-in sensor, it provides a cost-effective solution for applications that rely on external control feedback. Ideal for use in precision assembly, inspection systems, and semiconductor equipment.

    ●Motor configuration and performance parameters

    Model Number

    YK-28D3011-02GZ-30

     Dimensions (mm)

    28*39.2*140.4

     Stroke (mm)

    30

     Lead (mm)

    2

     Repeatability (μm)

    ±5

    Horizontal Load (kg)

    10

     Max Thrust (N)

    50

     Motor Model

    28 Open loop

     Sensor

    /

     Motor Type

    Y07-28D34-3011-02GZ-98A
    YK-28D3011-02GZ-30_01
