YK-28D3011-02GZ-100E-I Linear Slide | 100mm Closed-Loop Stepper Actuator with Sensor

YK-28D3011-02GZ-100E-I Electric Linear Slide – 100mm Stroke, Closed-Loop Stepper Actuator with NPN Sensor

Explore the YK-28D3011-02GZ-100E-I electric slide with 100mm stroke, ±5μm repeatability, and closed-loop control. Compact, precise, and sensor-integrated.

    Contact us Download
    Detail description
    Technical parameter
    Product size

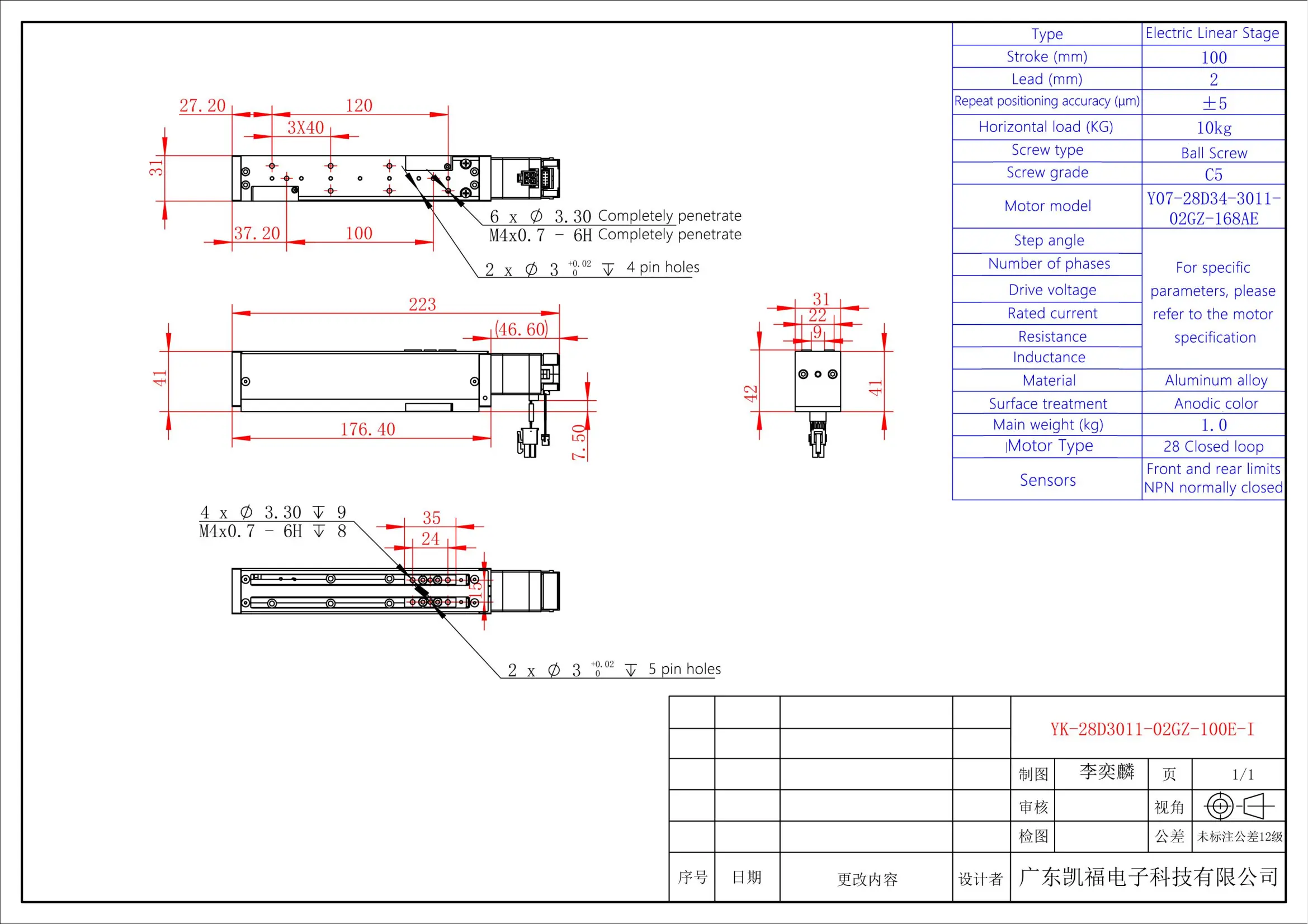

    drawing
    The YK-28D3011-02GZ-100E-I is a high-precision electric linear slide designed for compact automation environments requiring stable and accurate motion. It features a 100 mm stroke, 2 mm lead screw, and ±5 μm repeatability, powered by a closed-loop 28 stepper motor (model Y07-28D34-3011-02GZ-168AE). Its 31×42×223 mm compact form factor supports a 10 kg horizontal load and integrates an NPN closed sensor for precise position feedback and control. This actuator is well-suited for applications in vision inspection, electronics assembly, and laboratory automation that demand repeatability and positional accuracy within a small footprint.

    ●Motor configuration and performance parameters

    Model Number

    YK-28D3011-02GZ-100E-I

     Dimensions (mm)

    31*42*223

     Stroke (mm)

    100

     Lead (mm)

    2

     Repeatability (μm)

    ±5

    Horizontal Load (kg)

    10

     Max Thrust (N)

    /

     Motor Model

    28 Closed loop

     Sensor

    NPN closed

     Motor Type

    Y07-28D34-3011-02GZ-168AE
    YK-28D3011-02GZ-100E-I_01
