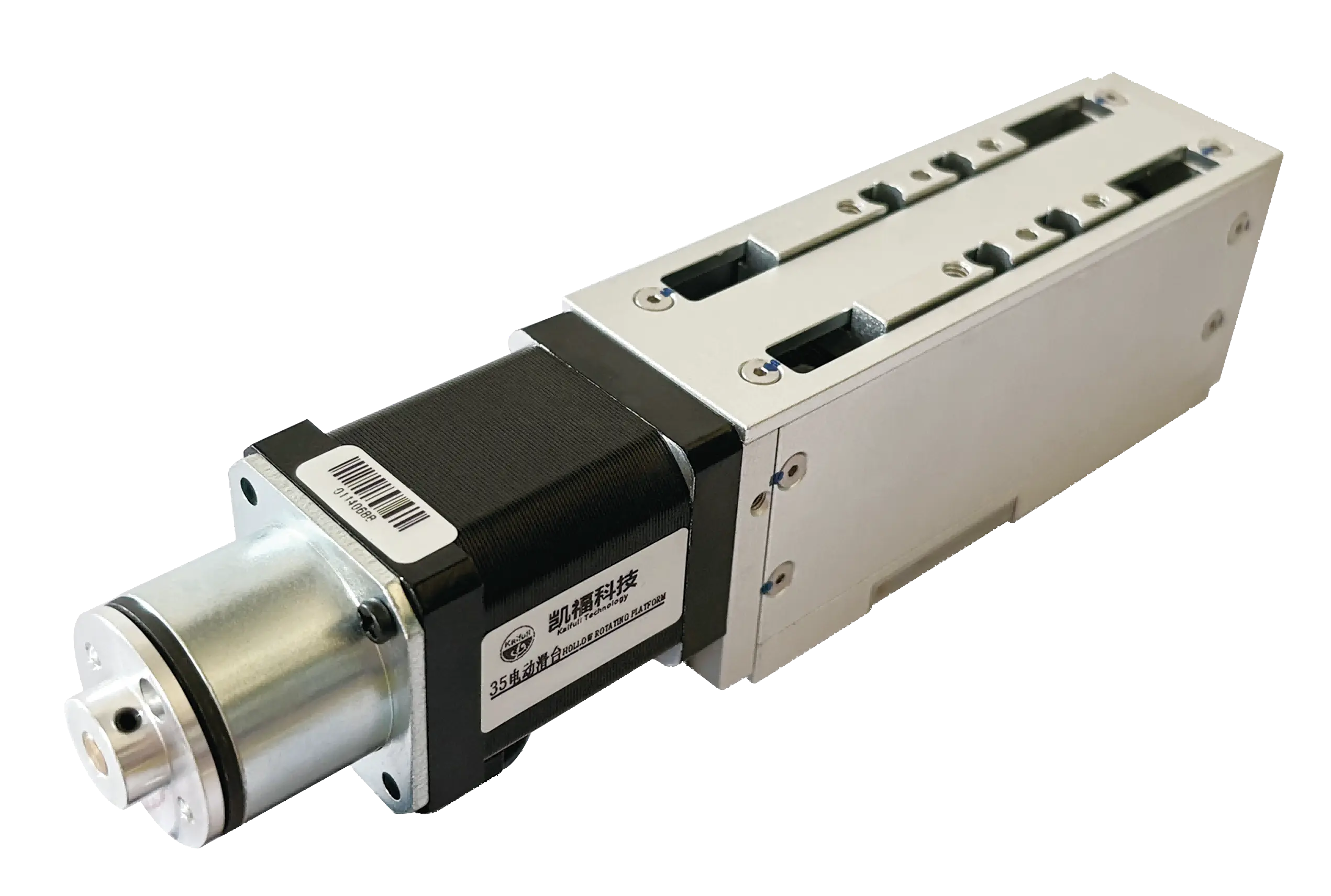

YK-28D3011-02GZ-100-I Linear Slide | 100mm Stroke Open-Loop Stepper with Sensor

YK-28D3011-02GZ-100-I Electric Linear Slide – 100mm Stroke, Open-Loop Stepper Motor with NPN Sensor

Discover the YK-28D3011-02GZ-100-I electric slide, featuring 100mm stroke, ±5μm repeatability, and open-loop stepper motor with NPN sensor.

    Contact us Download
    Detail description
    Technical parameter

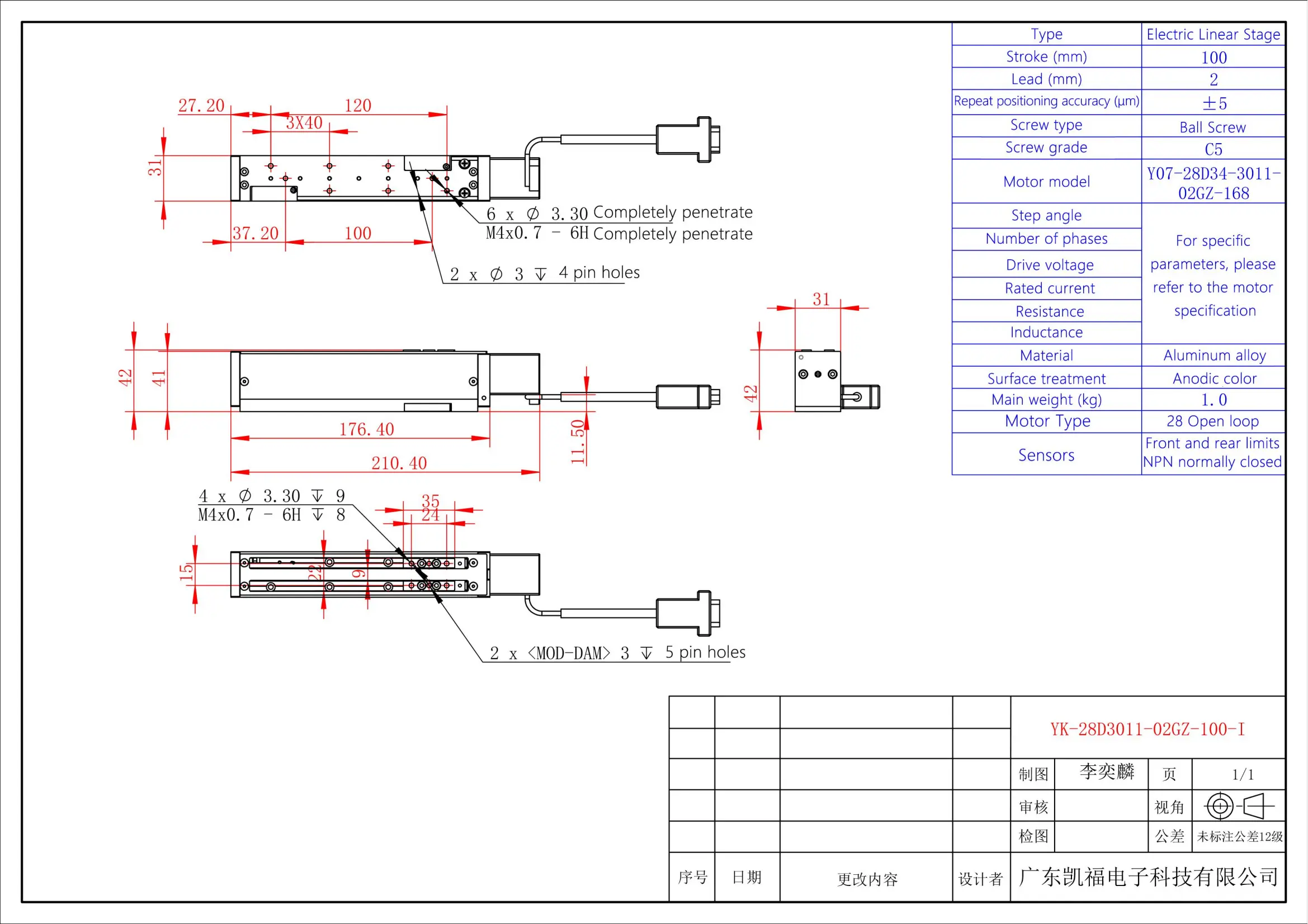

    Product size
    drawing
    The YK-28D3011-02GZ-100-I is a compact electric linear slide designed for applications requiring precise, repeatable positioning in a space-saving format. This unit features a 100 mm stroke, 2 mm lead screw, and ±5 μm repeatability, making it ideal for automation systems that demand high accuracy. It is driven by a 28-size open-loop stepper motor (model Y07-28D34-3011-02GZ-168) and equipped with an NPN closed sensor for basic position feedback. Measuring just 31×42×210.4 mm, the actuator is well-suited for use in pick-and-place systems, inspection devices, and laboratory automation where control simplicity and reliability are key.

    ●Motor configuration and performance parameters

    Model Number

    YK-28D3011-02GZ-100-I

     Dimensions (mm)

    31*42*210.4

     Stroke (mm)

    100

     Lead (mm)

    2

     Repeatability (μm)

    ±5

    Horizontal Load (kg)

    /

     Max Thrust (N)

    /

     Motor Model

    28 Open loop

     Sensor

    NPN closed

     Motor Type

    Y07-28D34-3011-02GZ-168
    YK-28D3011-02GZ-100-I_01
