Y3SA3-F01 AC Velocity Driver for 57-130mm Three-Phase Stepper Motors

Y3SA3-F01 driver, 80-265V AC, 0.4-8.0A output for 57-130mm three-phase motors in velocity mode, ensuring precision and stability.

    Contact us
    Detail description
    Technical parameter

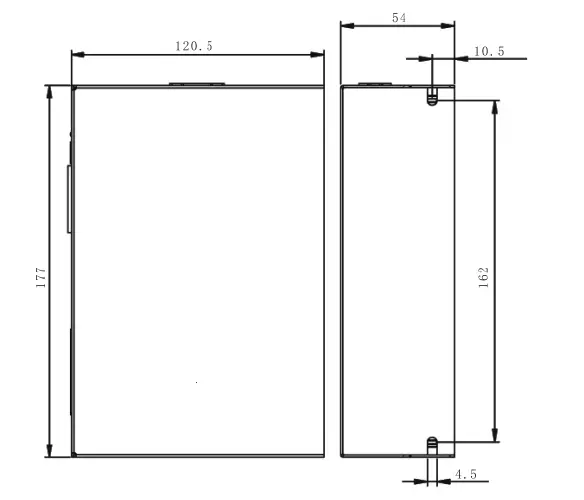

    Product size
    drawing

    The Y3SA3-F01 is a high-performance AC driver tailored for 57-130mm three-phase stepper motors, operating in velocity mode for accurate and consistent speed control. With an input voltage range of 80-265V AC and an output current capacity from 0.4 to 8.0A, this driver suits demanding applications requiring precise motor speed regulation. Designed with a compact structure of 177x120.5x54mm and a 5-24V input signal voltage, the Y3SA3-F01 driver offers reliability and versatility across various industrial control settings.

    ●Motor configuration and performance parameters

    Parameter type

    Numerical value

    unit

    Input voltage

    80-265

    VAC

    Output current

    0.4-8.0

    A

    Control mode

    Velocity mode



    Adaptive motor

    57~130mm



    Phase number

    3

    phases

    Encoder input

    nonsupport



    Encoder output

    nonsupport



    Product size

    177*120.5*54

    mm

    weight

    1.18

    kg

    Y3SA3
