Y2SS3-S Advanced Stepper Motor Driver

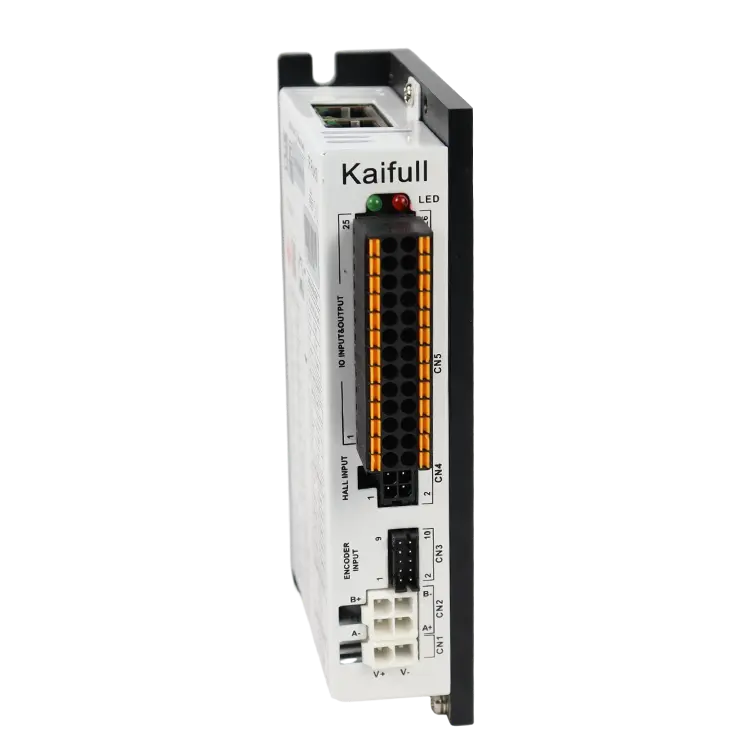

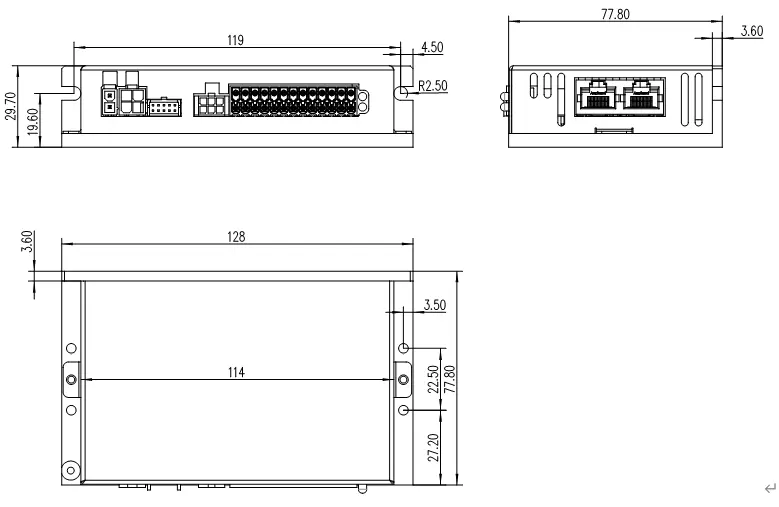

The Y2SS3-S stepper motor driver is a state-of-the-art solution designed to meet the demands of modern automation and motion control systems. With compact dimensions of 128 × 77.8 × 29.7 mm, this driver seamlessly fits into various setups while delivering robust performance. It supports a versatile input power range, operating on both DC (24-75V) and AC (18-50V) supplies, making it adaptable to different electrical environments.

Engineered specifically for two-phase closed-loop stepper motors of size 86 and below, the Y2SS3-S offers exceptional control and efficiency. Its peak current output capability ranges from 0.1A to 7A, ensuring that it can handle varying load demands effectively. This driver utilizes fully closed-loop control technology, which enhances torque performance and positional accuracy while reducing the risk of missed steps.

A standout feature of the Y2SS3-S is its encoder interface, which supports up to 5000-line incremental encoders, translating to an impressive 20,000 pulses per revolution. This high-resolution feedback allows for precise motion control, making the driver ideal for applications requiring accurate positioning and smooth operation. The control mode employs pulse control with both pulse + direction signals, facilitating easy integration with various control systems.

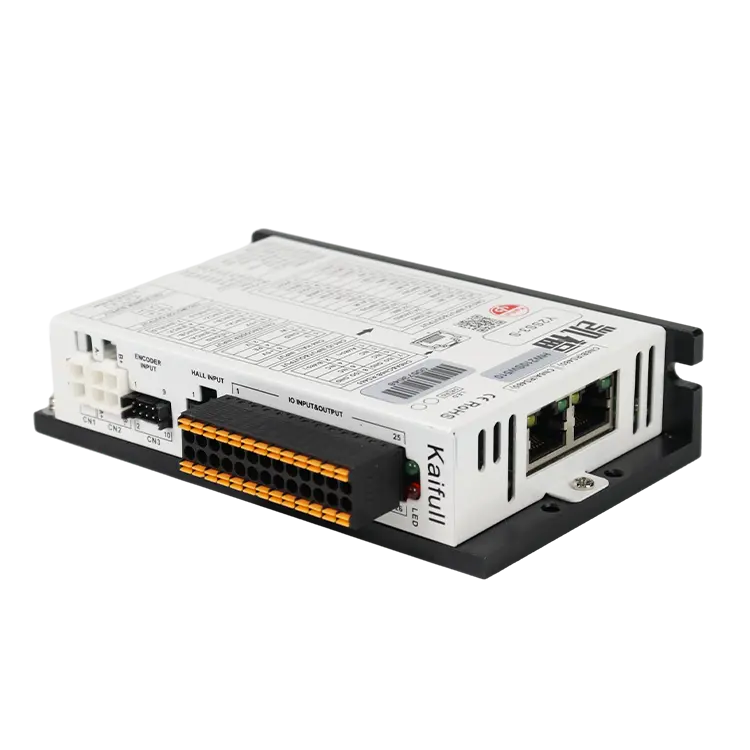

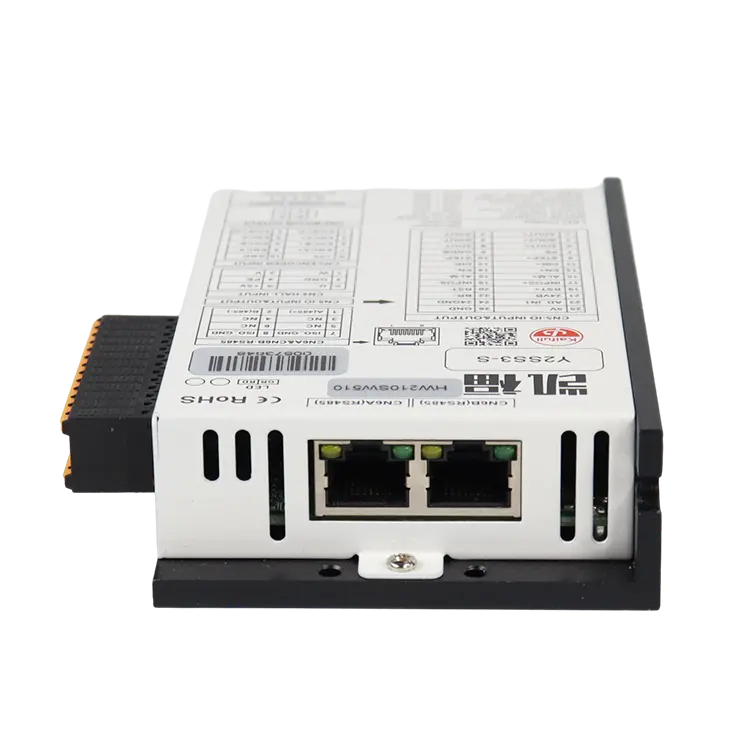

Communication and connectivity are streamlined through the RJ45 network port, which allows for connection to a PC for parameter settings and real-time status monitoring. This feature enhances user convenience, enabling quick adjustments and diagnostics to optimize performance.

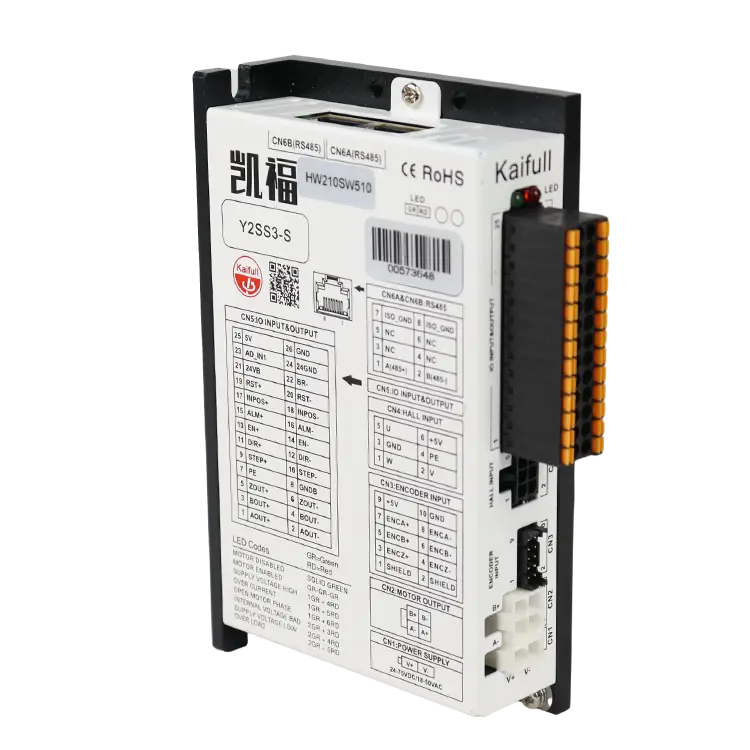

In terms of control signals, the Y2SS3-S is equipped with two high-speed pulse input circuits and two digital signal inputs, both featuring opto-isolation. It supports both differential and single-ended signals, with a high-level voltage tolerance of 5-24VDC. Additionally, the driver provides A/B/Z encoder differential signal outputs, two opto-isolated output signals, and a dedicated brake output, each with a maximum output of 100mA at 30V.

Designed for a wide operating range, the Y2SS3-S functions efficiently in temperatures between 0 to 55 °C, with humidity levels up to 90% RH (non-condensing) and an altitude of up to 1000 meters. Care should be taken to prevent exposure to corrosive gases, dust, water, and oil to ensure longevity and reliability.

Safety features include a dielectric strength of AC 1.5KV between ground wires, capable of withstanding voltage for one minute, coupled with a protection grade of IP20. These specifications ensure the Y2SS3-S is not only effective but also safe for various industrial applications.

Overall, the Y2SS3-S stepper motor driver stands out as a robust, reliable choice for precise control in advanced automation systems, making it suitable for a diverse range of applications.
