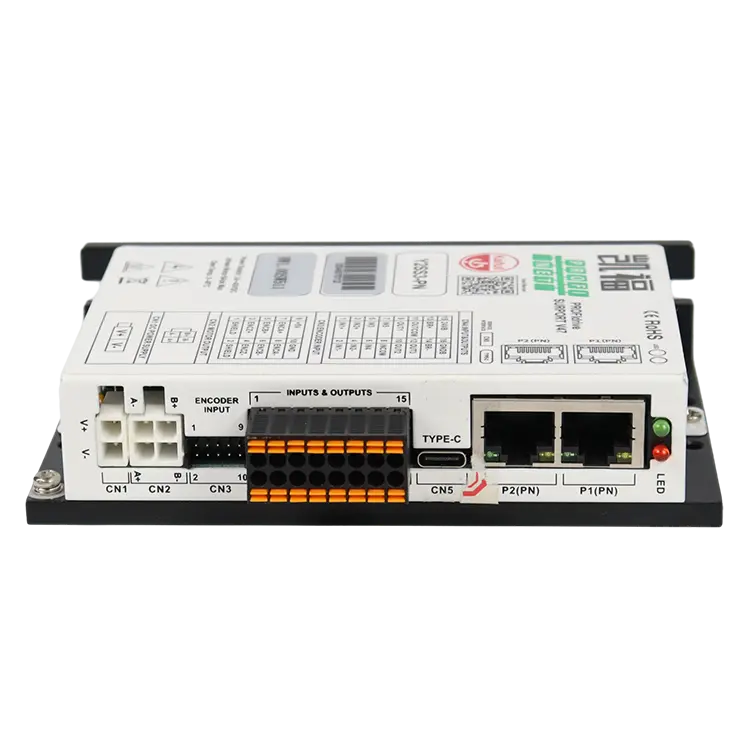

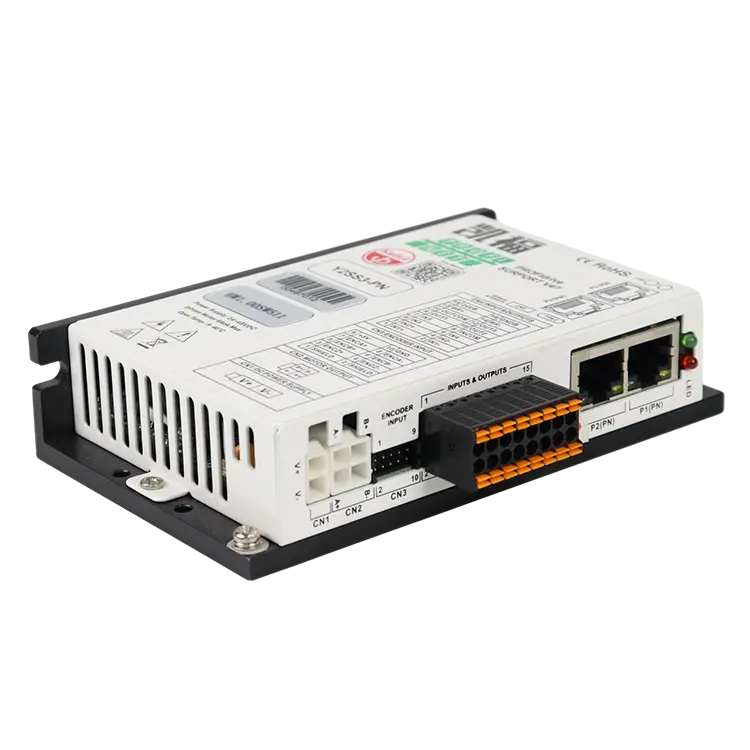

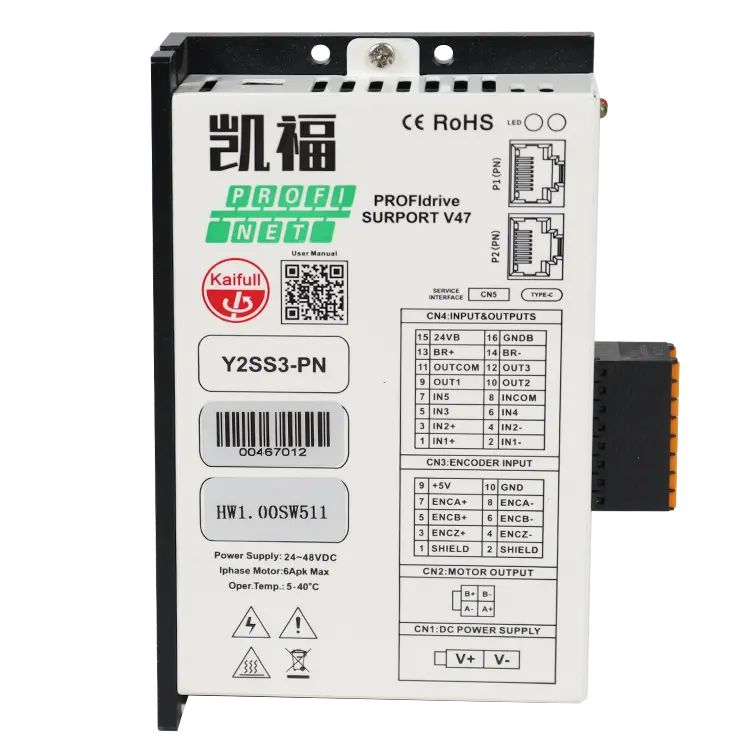

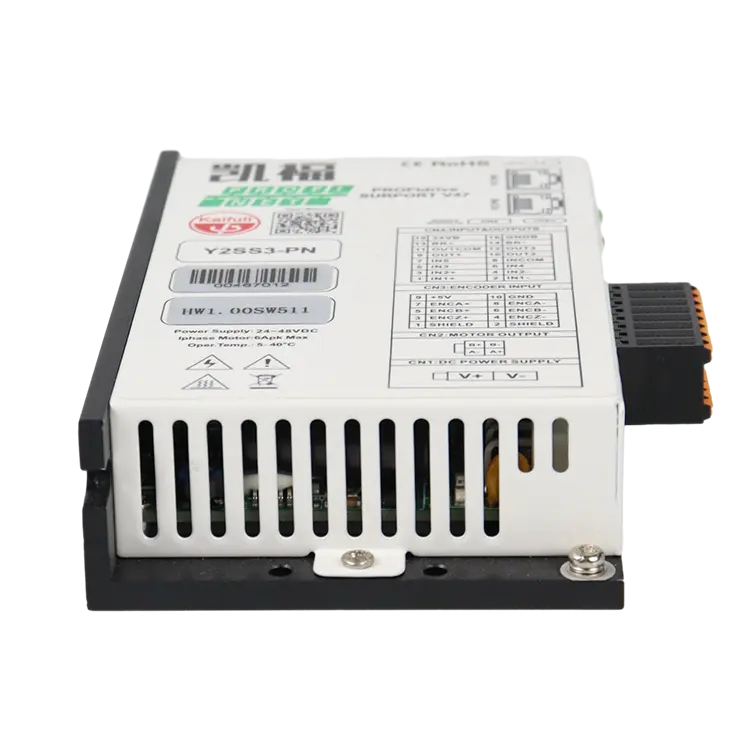

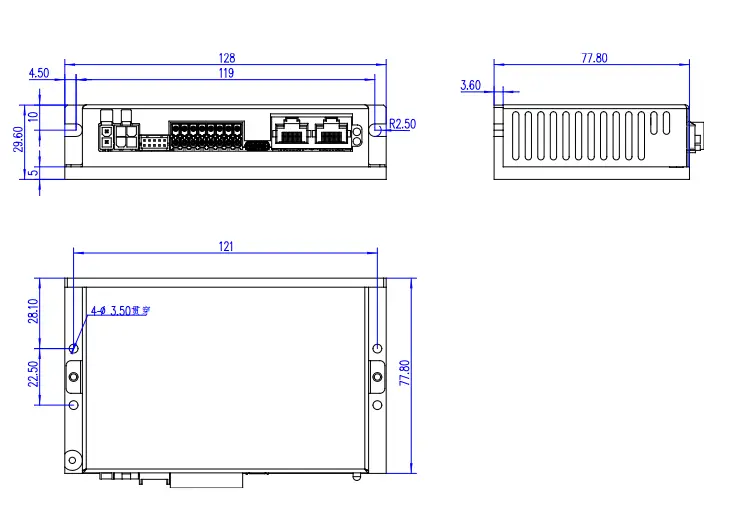

Y2SS3-PN Versatile Stepper Motor Driver

The Y2SS3-PN stepper motor driver is engineered for modern automation systems, offering compatibility with both open-loop and closed-loop control configurations. This driver is designed to operate effectively with two-phase stepper motors of size 86 and below, making it a versatile solution for various applications. With an input power range of 24 to 60V DC (±15%), the Y2SS3-PN is capable of providing peak current outputs from 0.1A to 7A, ensuring robust performance under demanding conditions.

One of the standout features of the Y2SS3-PN is its encoder interface, which supports incremental encoders with up to 5000 lines, equating to 20,000 pulses per revolution. This capability allows for high precision in motion control, vital for applications requiring accurate positioning and speed regulation. The control mode utilizes PROFINET bus communication, enabling seamless integration into industrial networks and enhancing operational efficiency.

The driver includes a USB-C interface for connecting to a PC, allowing for easy parameter settings and real-time status monitoring. This feature not only simplifies configuration but also aids in troubleshooting and system diagnostics, making it a user-friendly option for engineers and technicians.

In terms of control signals, the Y2SS3-PN offers a variety of digital input and output options. It includes three differential digital inputs and two single-ended inputs, all with opto-isolation for enhanced signal integrity. Additionally, the driver features three open collector outputs with a maximum output of 100mA at 30V, as well as a dedicated brake output, ensuring that all necessary control functions are covered.

Designed for a broad operating environment, the Y2SS3-PN functions optimally in temperatures ranging from 0 to 55 °C, with a humidity tolerance of up to 90% RH (non-condensing) and an altitude of 1000 meters or below. It is essential to avoid exposure to corrosive gases, dust, water, and oil to maintain the driver’s performance and longevity.

Safety and reliability are further reinforced with a dielectric strength of AC 1.5KV between ground wires, capable of withstanding voltage for one minute. The driver has a protection grade of IP20, making it suitable for a variety of industrial applications while ensuring operator safety.

Overall, the Y2SS3-PN stepper motor driver represents a robust, versatile solution for contemporary automation needs, combining advanced features with reliable performance.
