Y2SD2-S80E-N2 DC Driver for Incremental Two-Phase Stepper Motors

Y2SD2-S80E-N2 driver, DC 24-48V, peak current 6.5A, with opto-isolated inputs and outputs, ideal for incremental 2-phase stepper motors.

    Contact us
    Detail description
    Technical parameter

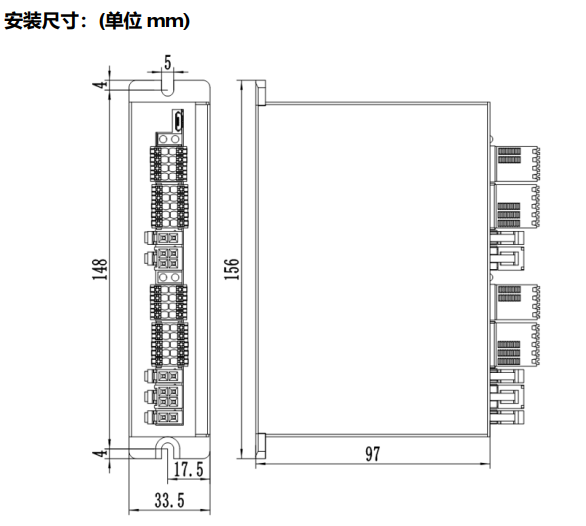

    Product size
    drawing

    The Y2SD2-S80E-N2 is a DC driver optimized for two-phase hybrid incremental stepper motors, handling peak currents up to 6.5A. With a 24-48V DC power supply range and a PWM full-bridge bipolar driving method, it ensures efficient and stable performance. The Y2SD2-S80E-N2 includes one probe input (opto-isolated with 24V high-level input) and three general-purpose inputs, plus two opto-isolated outputs rated up to 30VDC and 50mA. An additional brake output, also opto-isolated, can handle currents up to 500mA, making this driver versatile for various industrial applications. With a quick initialization time of 2 seconds, it offers reliable and responsive control.

    ●Motor configuration and performance parameters

    Driver type

    Y2SD2-S80E-N2

    Adaptive motor

    Suitable for two-phase hybrid incremental stepper motor, up to 6.5A(peak)

    Mains supply

    DC 24V~48V

    Output current

    0.4A~6.5A/ phase (peak)

    Driving mode

    Full bridge bipolar PWM drive

    Device initialization time

    2s

    Input signal

    1 probe input

    Optocouple input voltage: H=24V,L= 0-0.8V conduction current 5~8mA



    Three universal input signals



    Output signal

    2 universal output signals

    Photoelectric isolation output, maximum withstand voltage 30VDC, maximum saturation current 50mA



    1 lock output

    Photoelectric isolation output, maximum withstand voltage 30VDC, maximum saturation current 500mA

    dimension

    156×97×34 mm (without connectors)

    weight

    About 500g

    Use environment

    Use occasion

    Avoid dust, oil mist and corrosive gases



    humidity

    < 85%RH, no condensation



    Operating temperature

    0℃~+40℃



    Storage temperature

    -10℃ ~ +75℃



    Dissipate heat

    Install in a ventilated environment

    Y2-S80E-N2
