Y2SA2-F01 Velocity Control Driver for 60-130mm Stepper Motors

Y2SA2-F01 driver for 60-130mm two-phase stepper motors with 80-265V AC input, 0.4-4.0A output, offering precise velocity control.

    Contact us
    Detail description
    Technical parameter
    Product size
    Data download

    The Y2SA2-F01 is a high-performance velocity control driver tailored for two-phase stepper motors with frame sizes from 60mm to 130mm. With a broad input voltage range of 80-265V AC and an output current of 0.4A to 4.0A, this driver is ideal for applications requiring robust motor control. It supports a 5-24V input signal voltage, ensuring compatibility across diverse control systems, and provides reliable and smooth motor speed adjustments for precise operation in larger motor setups.

    ●Motor configuration and performance parameters

    Parameter type

    Numerical value

    unit

    Input voltage

    24-48

    VDC

    Output current

    1.0-4.5

    A

    Control mode

    Velocity mode



    Adaptive motor

    42-60mm



    Phase number

    2

    phases

    Encoder input

    nonsupport



    Encoder output

    nonsupport

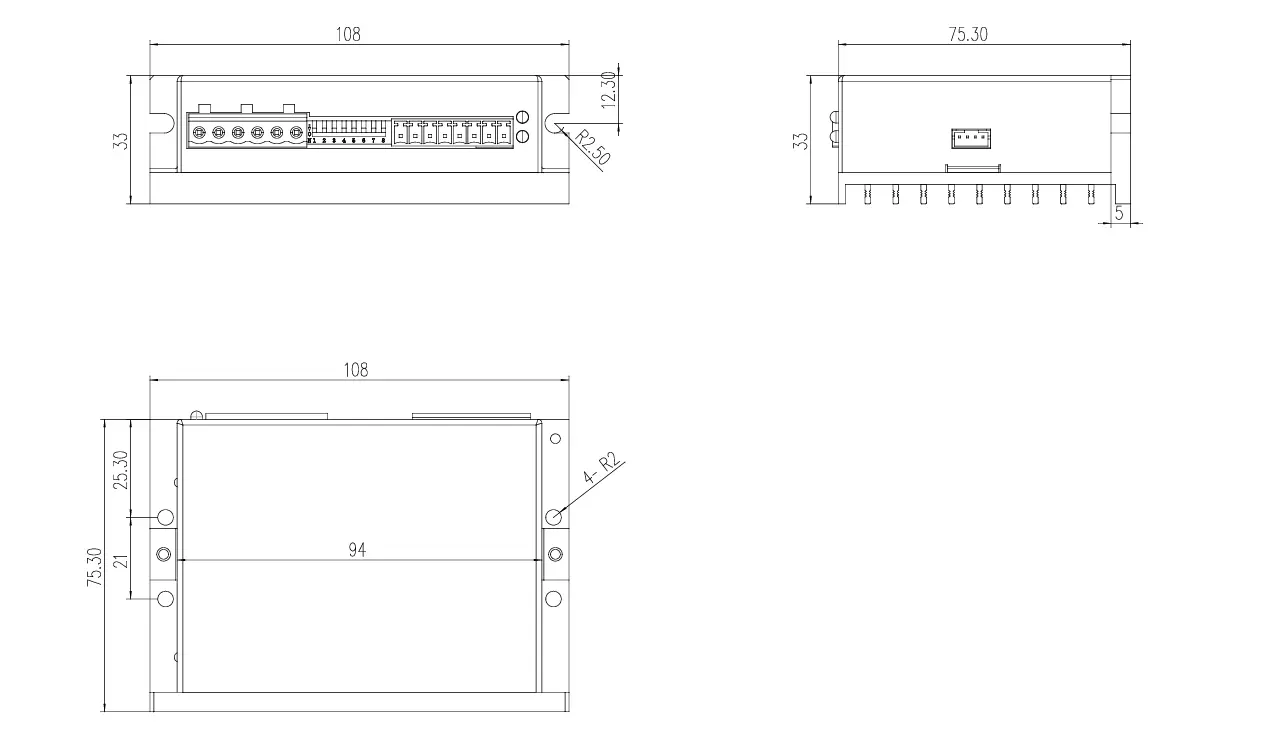

    Product size

    109*75*33

    mm

    weight

    0.2

    kg

    Y2SED2
