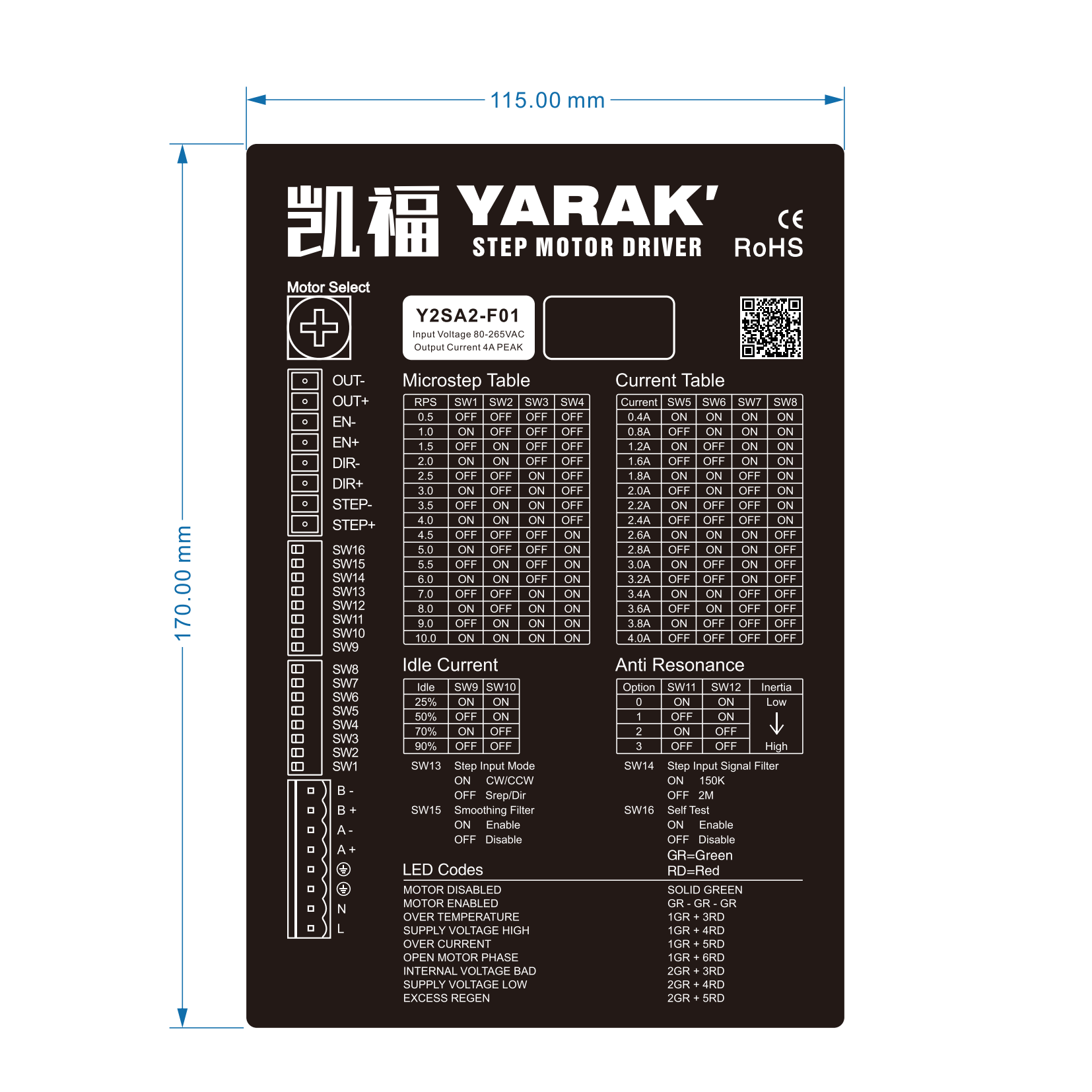

Y2SA2-F01 AC Velocity Control Driver for 60-130mm Stepper Motors

Y2SA2-F01 AC Velocity Control Driver for 60-130mm Stepper Motors

Y2SA2-F01 velocity control driver, 80-265V AC input, 0.4-4.0A output for 60-130mm two-phase stepper motors, ensuring precision control.

    Contact us
    Detail description
    Technical parameter

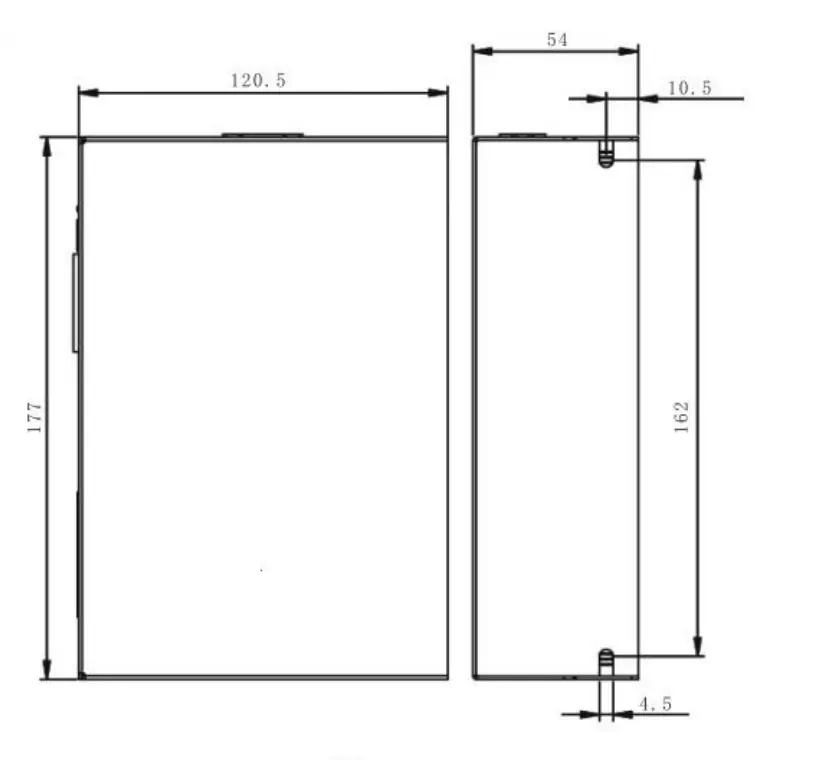

    Product size
    drawing

    The Y2SA2-F01 is an AC velocity control driver, specially designed for two-phase stepper motors ranging from 60mm to 130mm. Supporting an input voltage of 80-265V AC and delivering an output current of 0.4 to 4.0A, it enables stable and precise motor speed control. The driver’s 5-24V input signal voltage ensures compatibility with a variety of control systems, making it a dependable solution for high-performance motion control applications. Compact and efficient, the Y2SA2-F01 offers excellent control in compact dimensions of 177x120x54mm.

    ●Motor configuration and performance parameters

    Parameter type

    Numerical value

    unit

    Input voltage

    80-265

    VAC

    Output current

    0.4-4.0

    A

    Control mode

    Velocity mode



    Adaptive motor

    60~86mm



    Phase number

    2

    phases

    Encoder input

    nonsupport



    Encoder output

    nonsupport



    Product size

    177*120.5*54

    mm

    weight

    1.18

    kg

    Y2SA2-F01
