Y09-86D97-6303E Closed-loop Stepper Motor, 86mm Frame, 5A Current
Y09-86D97-6303E Closed-loop Stepper Motor, 86mm Frame, 5A Current

Y09-86D97-6303E Closed-loop Stepper Motor – 86mm Frame, 1.8° Step Angle

Y09-86D97-6303E closed-loop stepper motor, 86mm frame, 1.8° step angle, 5A current, ideal for high-torque motion control applications.

    Contact us Download
    Detail description
    Technical parameter
    Product size
    drawing

    The Y09-86D97-6303E closed-loop stepper motor is designed for high-performance applications requiring superior torque and precision. With an 86mm frame size and 1.8° step angle, this motor operates at a rated current of 5A, resistance of 0.55Ω, and inductance of 5mH. Offering a remarkable minimum thrust of 6.5N and rotor inertia of 1750g.cm², it is ideal for demanding industrial automation, robotics, and CNC machinery tasks. Its 12.7mm shaft diameter and motor length of 130mm ensure reliable and smooth motion control in high-load environments.

    ●Motor configuration and performance parameters

    Frame size/mm

    86mm

    Model

    Y09-86D97-6303E

    Step Angle

    1.8

    Rated current/A

    5

    Resistance/Ω

    0.55

    Inductance/mH

    5

    Maintain torque/N.m Minimum thrust N

    6.5

    Rotor inertia/g.cm²

    1750

    Number of leads

    4

    Shaft diameter

    12.7

    Axis length

    37

    Motor length/mm

    130

    Mass/g

    2700

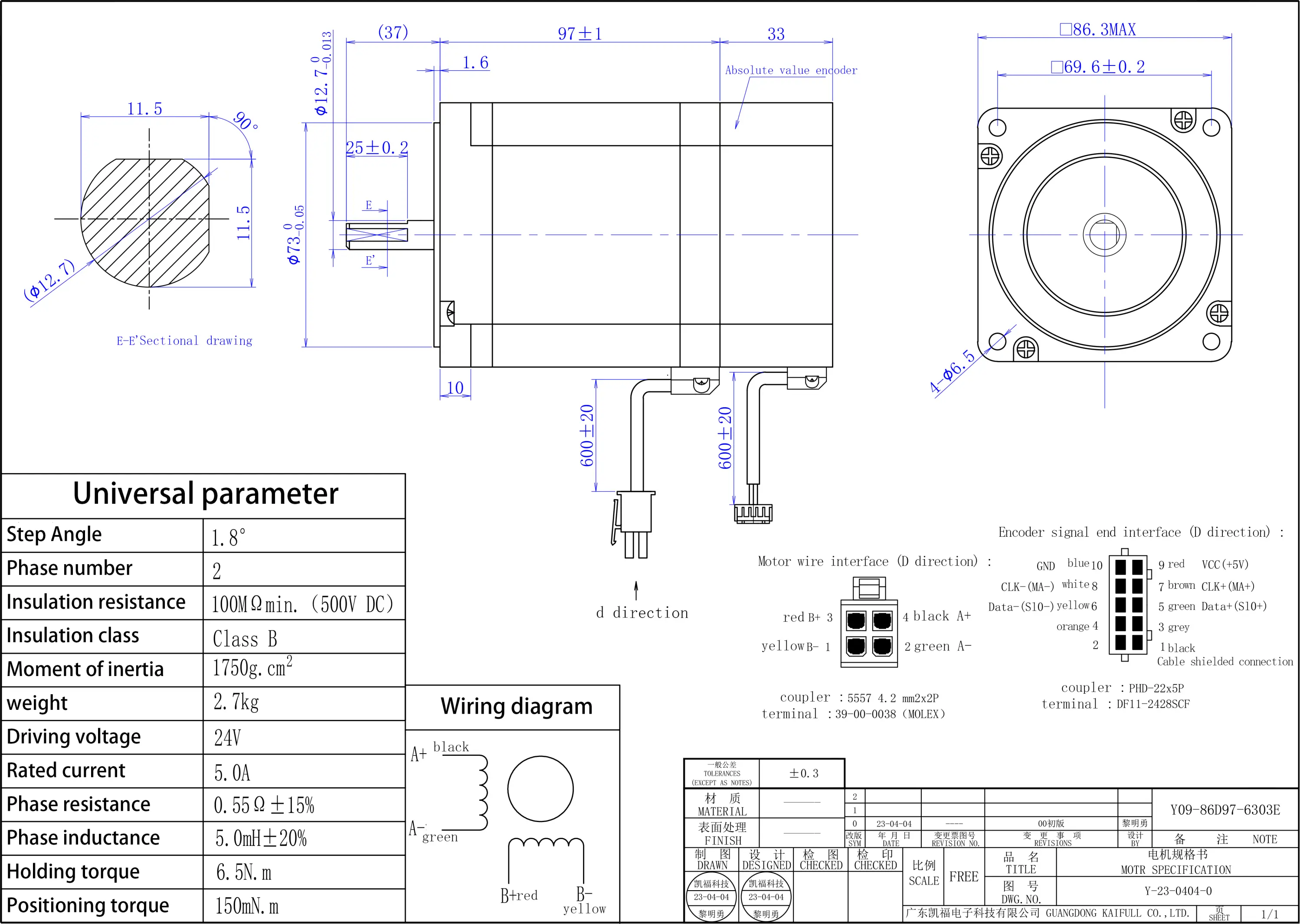

    Y09-86D97-6303E_00
