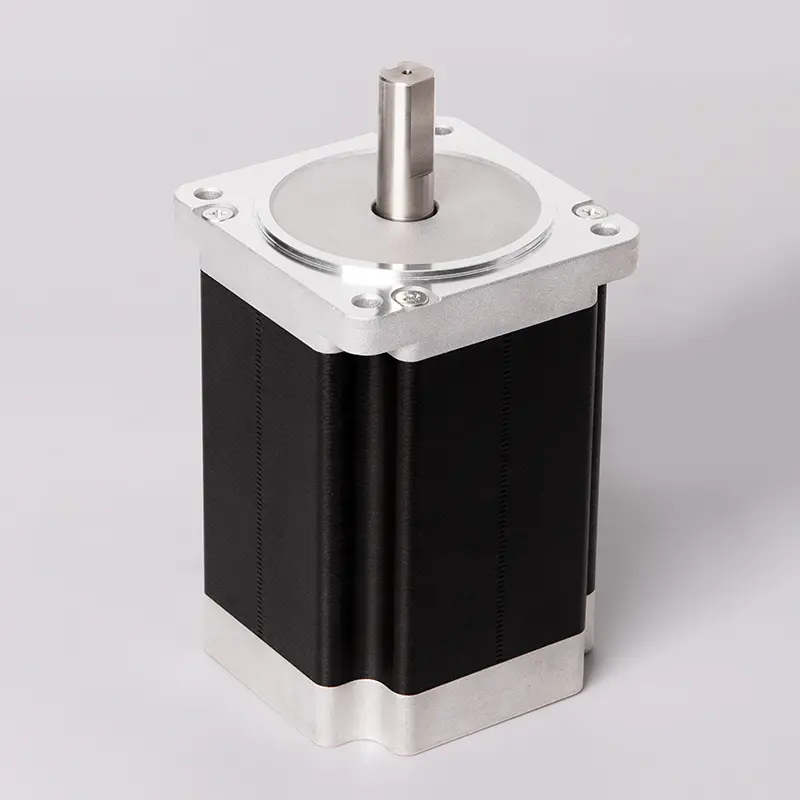

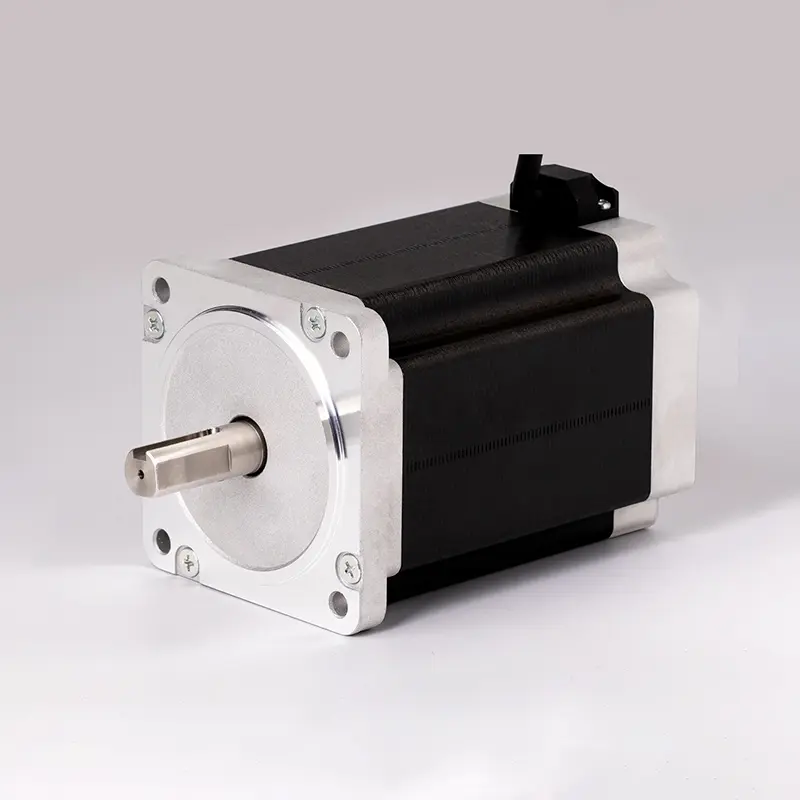

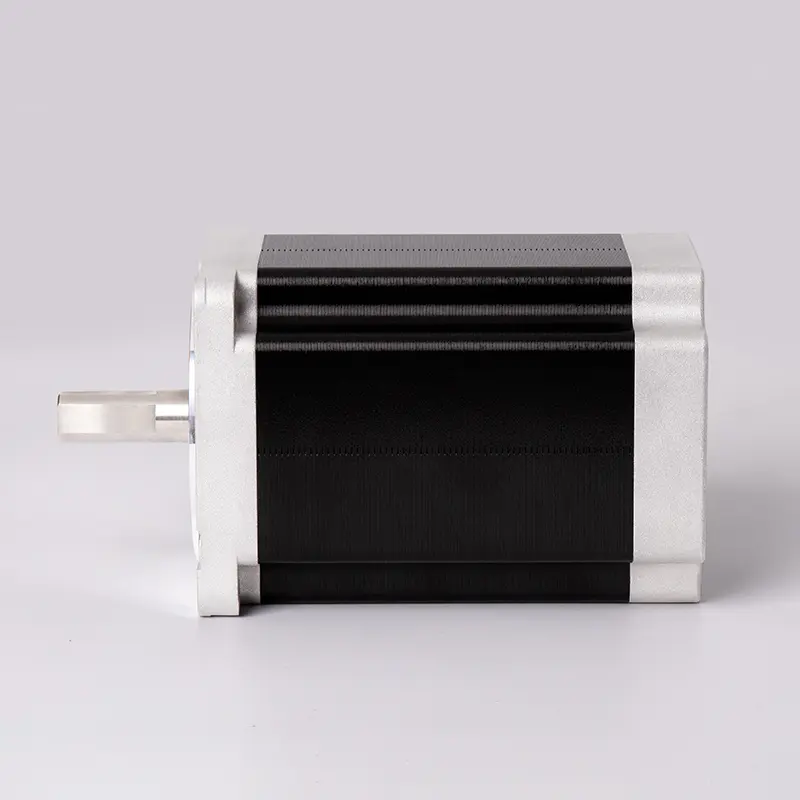

Y09-59D3-7655-H High-Torque Stepper Motor

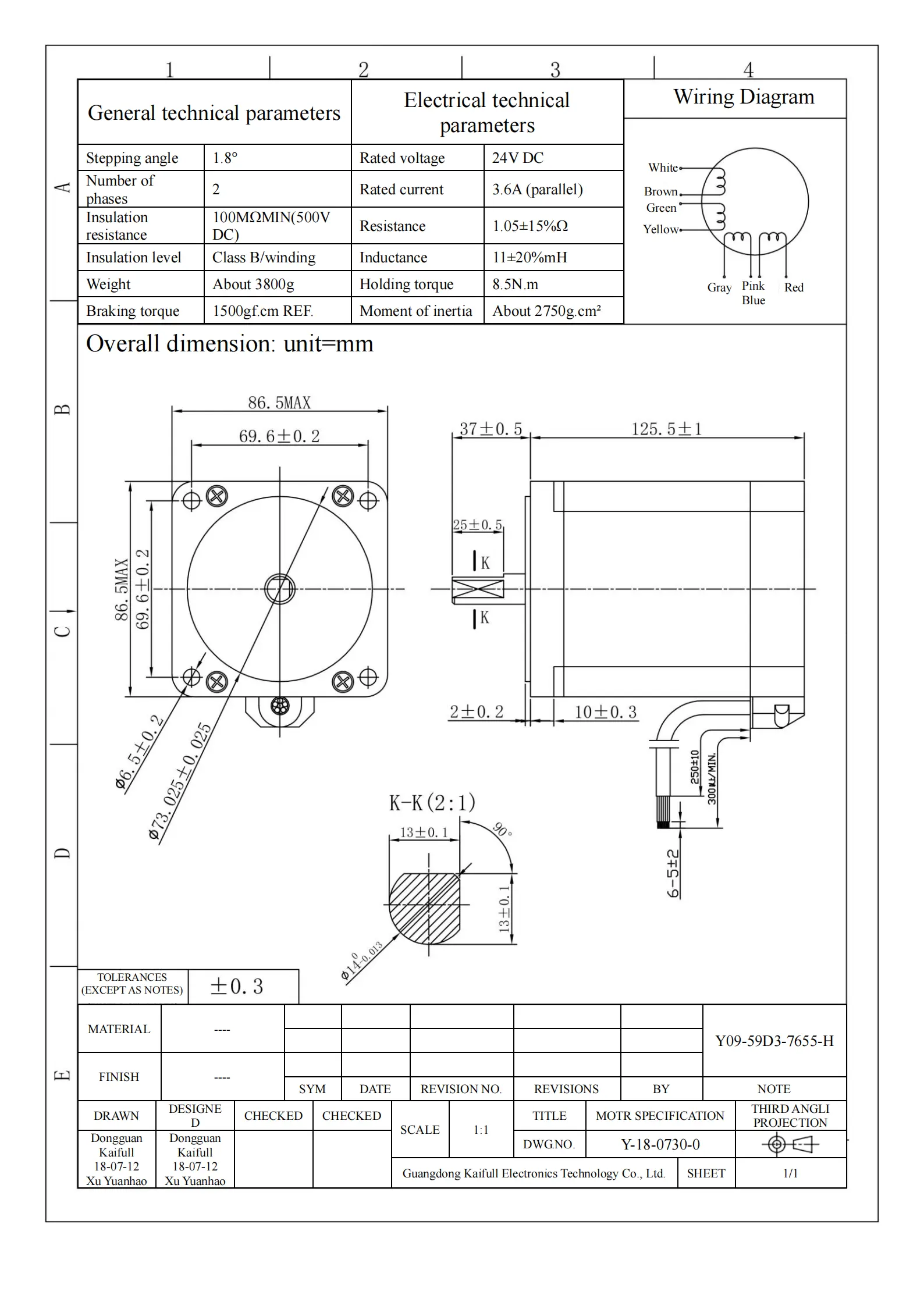

The Y09-59D3-7655-H stepper motor is designed for high-performance applications requiring reliable and precise motion control. With a stepping angle of 1.8°, this motor ensures accurate positioning, making it suitable for robotics, CNC machines, and automated equipment. Operating at a rated voltage of 24V DC, the motor is capable of handling a rated current of 3.6A when configured in parallel, allowing for enhanced torque output.

This model boasts a substantial holding torque of 8.5N·m, which is ideal for applications that demand consistent and powerful performance. Additionally, the braking torque of 1500gf·cm provides strong stopping power, enhancing the motor's utility in dynamic applications. The insulation resistance is rated at a minimum of 100MΩ (at 500V DC), ensuring robust electrical performance and durability over time.

With an inductance of 11±20%mH and a resistance of 1.05±15Ω, the motor is optimized for efficient operation and reduced heat generation. Weighing approximately 3800g, the Y09-59D3-7655-H is engineered for stability and durability, making it a reliable choice for heavy-duty applications. Its moment of inertia is around 2750g·cm², allowing for smooth acceleration and deceleration during operation.

The insulation level is classified as Class B, which provides sufficient thermal protection for extended use in various environments. The two-phase configuration enhances the motor’s torque characteristics, ensuring consistent performance across a range of speeds. This motor is a perfect solution for demanding industrial applications where high torque and precision are paramount.
