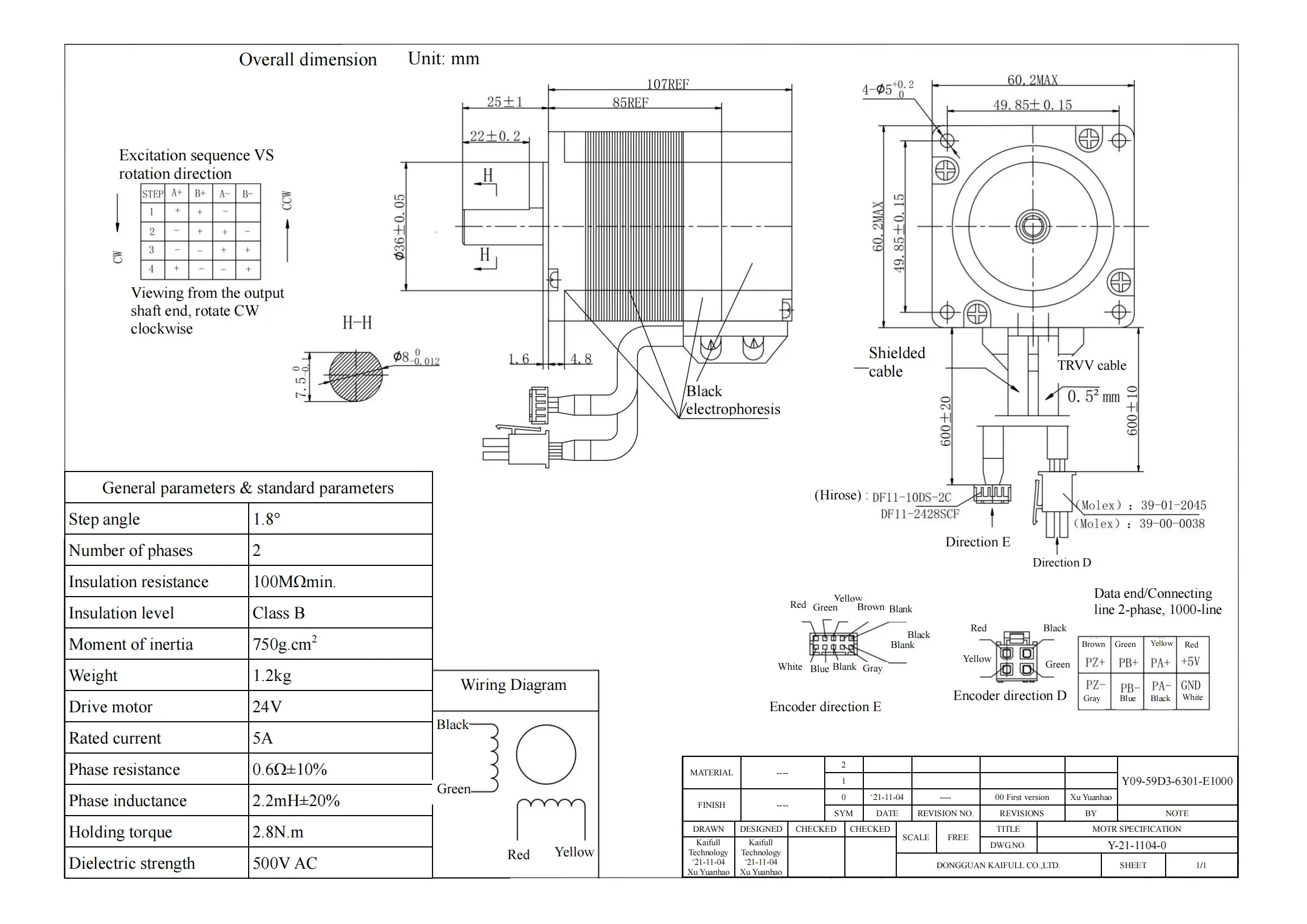

Y09-59D3-6301-E1000 Precision Stepper Motor for Robust Applications

The Y09-59D3-6301-E1000 is a high-performance stepper motor designed for applications that demand precision and reliability. With a step angle of 1.8°, this motor enables accurate positioning and smooth motion control, making it suitable for a variety of automated systems, CNC machinery, and robotics.

Operating at a drive voltage of 24V, this motor is capable of delivering a rated current of 5A, ensuring powerful performance under load. The phase resistance of 0.6Ω ±10% and a phase inductance of 2.2mH ±20% provide a balanced combination of speed and torque, allowing for smooth operation even in high-demand scenarios.

Safety and durability are key features of the Y09-59D3-6301-E1000. It boasts an insulation resistance of a minimum of 100MΩ, providing a safeguard against electrical faults. Rated with Class B insulation, the motor can withstand temperatures up to 130°C, ensuring reliability in various environmental conditions.

With a holding torque of 2.8N·m, this stepper motor excels at maintaining position stability even under varying loads. Its moment of inertia of 750g·cm² allows for quick acceleration and deceleration, enhancing its responsiveness during operation. The dielectric strength of 500V AC further enhances the motor's reliability, providing protection against voltage spikes.

Weighing approximately 1.2kg, the Y09-59D3-6301-E1000 is robust yet compact, making it suitable for integration into a wide range of equipment without compromising on performance.

In summary, the Y09-59D3-6301-E1000 stepper motor is engineered for precision, safety, and performance, making it an ideal choice for applications where reliability and accuracy are paramount.
