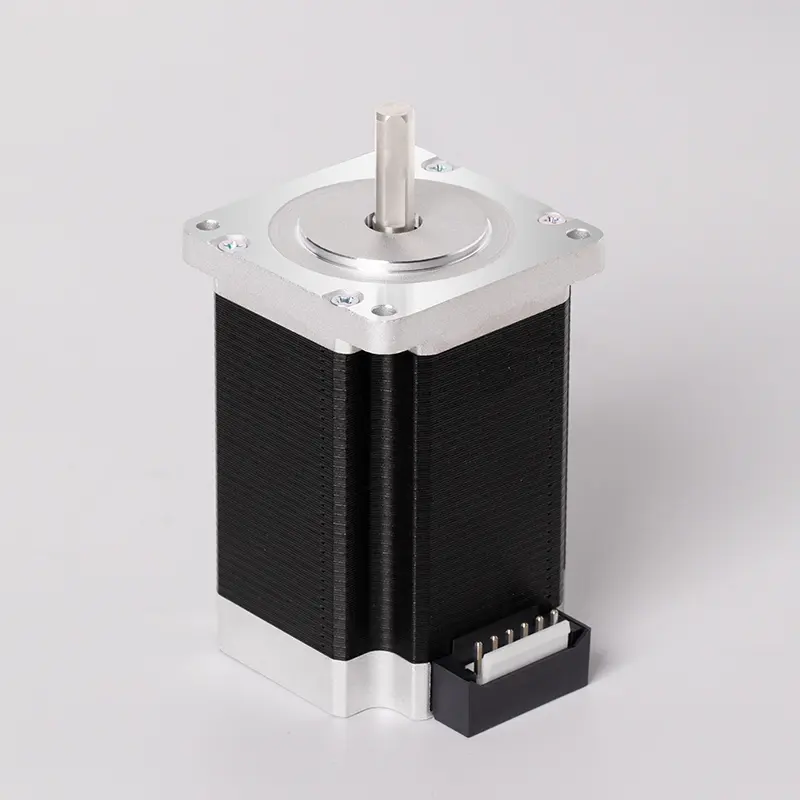

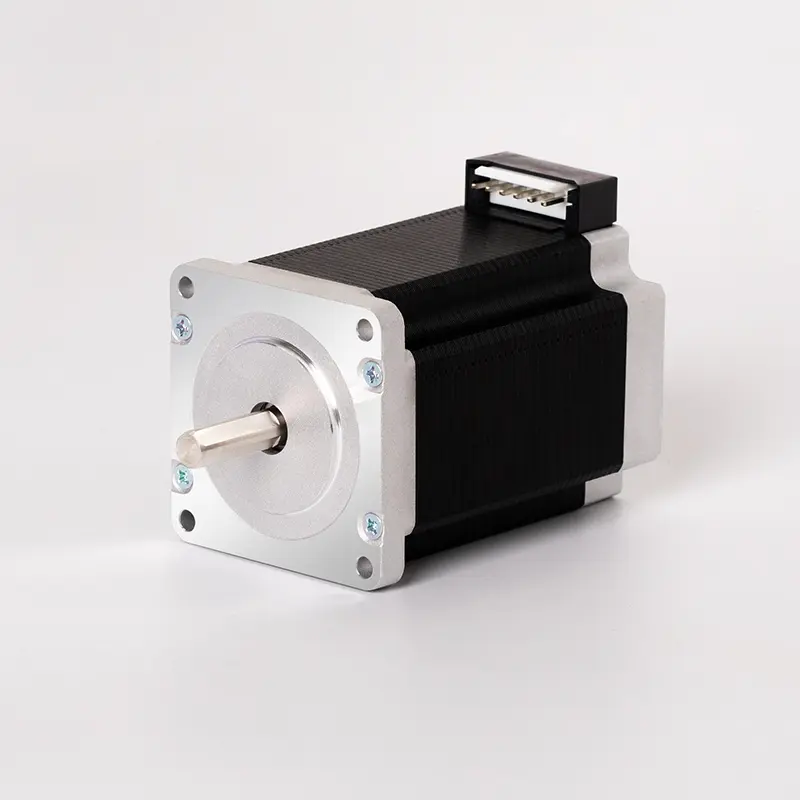

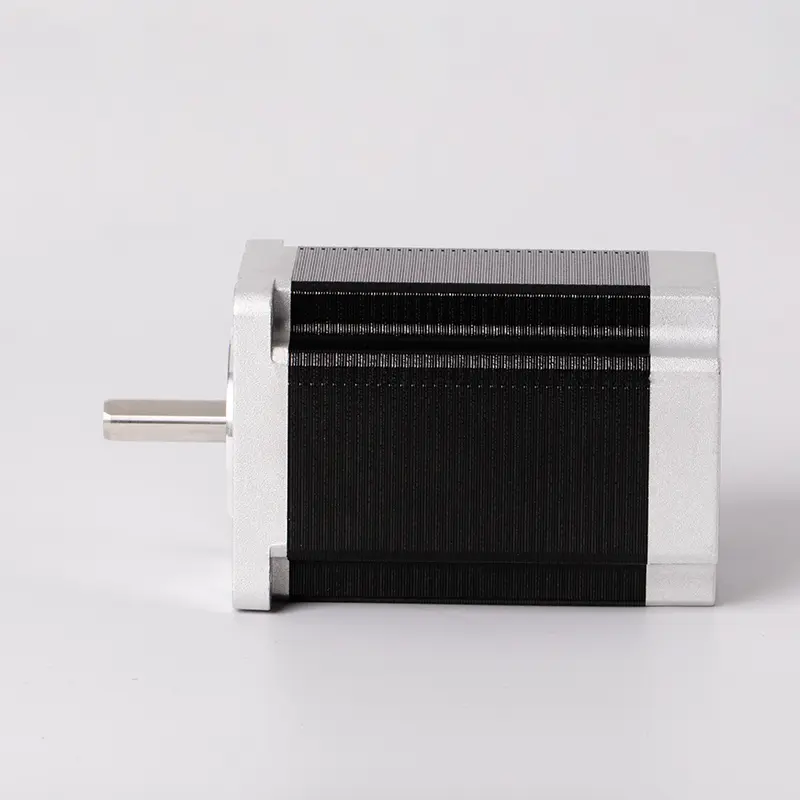

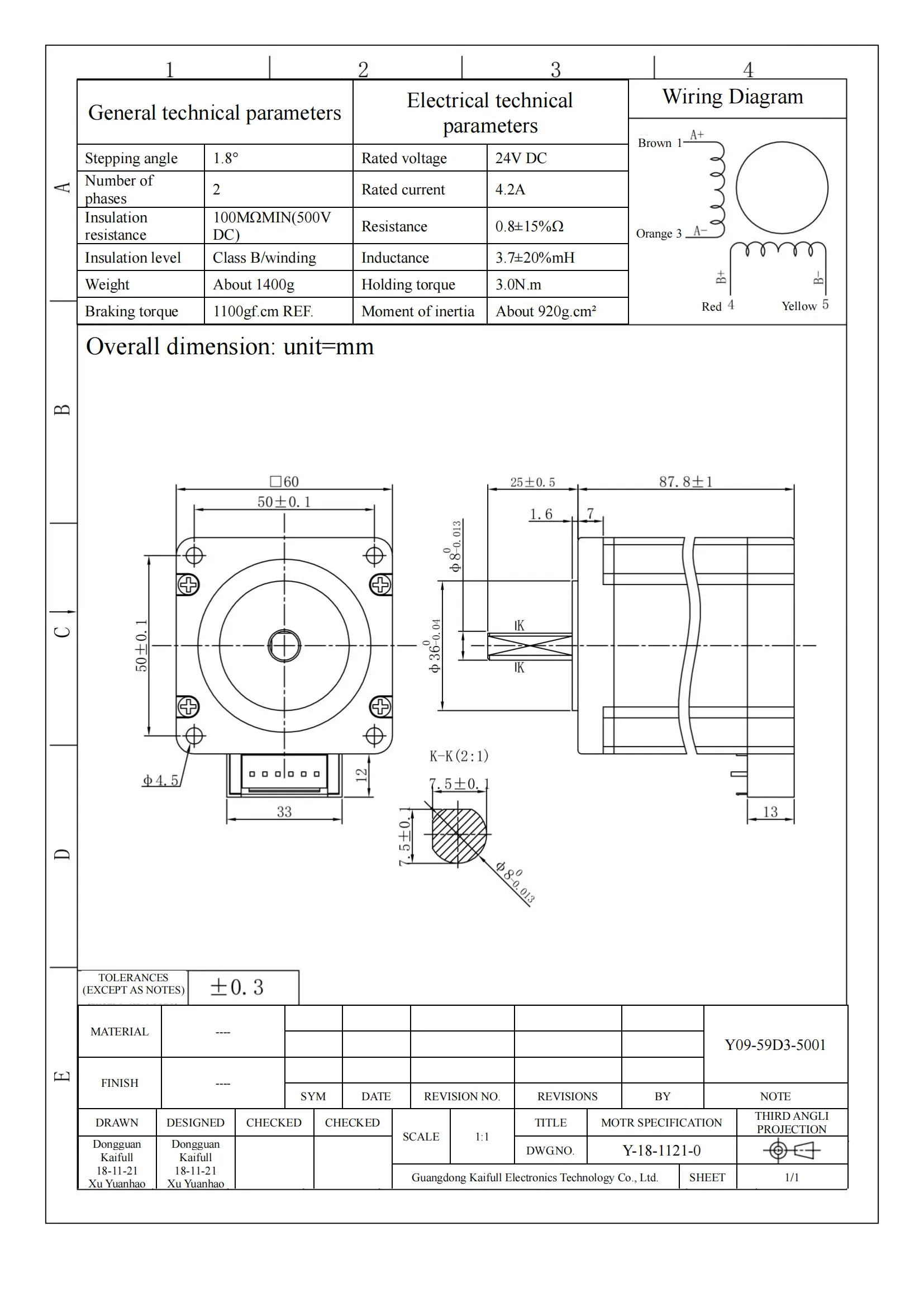

Y09-59D3-5001 Precision Stepper Motor

The Y09-59D3-5001 stepper motor is engineered for applications requiring high precision and reliable performance. With a stepping angle of 1.8°, it delivers accurate positioning and smooth motion, making it ideal for various automation systems, CNC machinery, and robotics. This model operates on a rated voltage of 24V DC and is designed with two phases, allowing for efficient power distribution and enhanced torque output.

This motor's rated current is 4.2A, which enables it to achieve a holding torque of 3.0N·m. This significant torque ensures stability and control during operation, particularly in applications involving vertical movement or heavy loads. The braking torque is rated at 1100gf·cm, providing robust stopping power for enhanced safety and performance.

The Y09-59D3-5001 features an insulation resistance of a minimum of 100MΩ at 500V DC, ensuring durability and reliability in demanding environments. Its electrical specifications include a resistance of 0.8±15Ω and an inductance of 3.7±20%mH, optimizing the motor for efficient performance with minimal energy loss.

Weighing approximately 1400g, this motor is designed for compact applications where space and weight are considerations. The moment of inertia is about 920g·cm², allowing for smooth acceleration and deceleration, which is crucial for precision applications. The insulation level is classified as Class B, providing adequate thermal protection during extended use.

With its reliable performance characteristics and robust design, the Y09-59D3-5001 is a top choice for engineers and designers seeking a dependable stepper motor that meets the demands of modern industrial applications.
