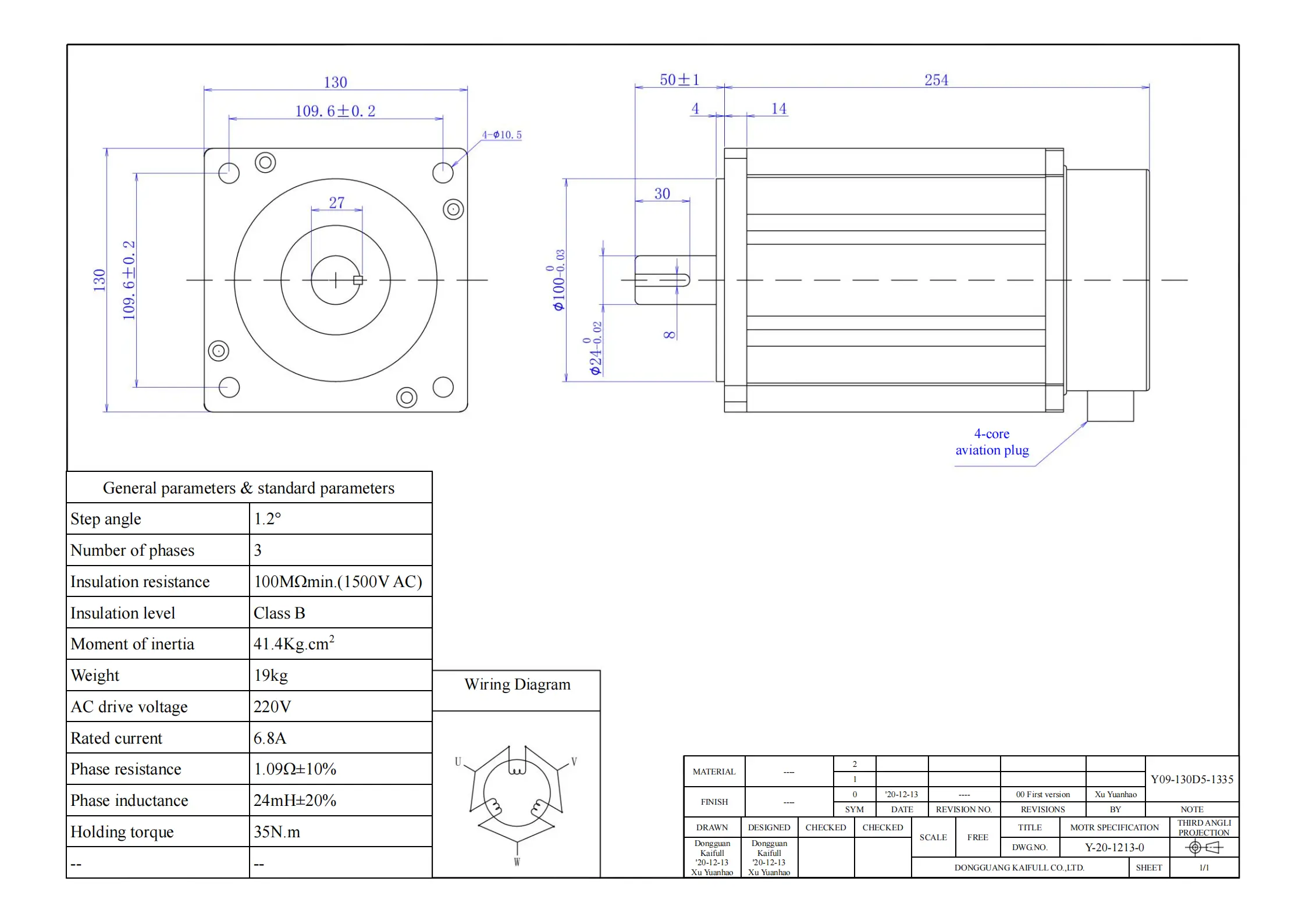

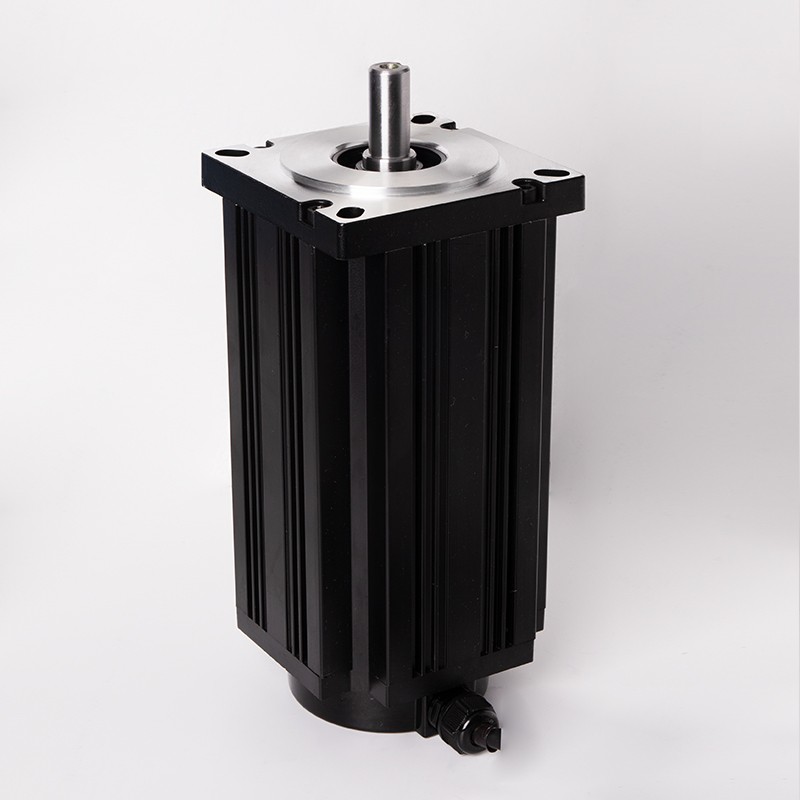

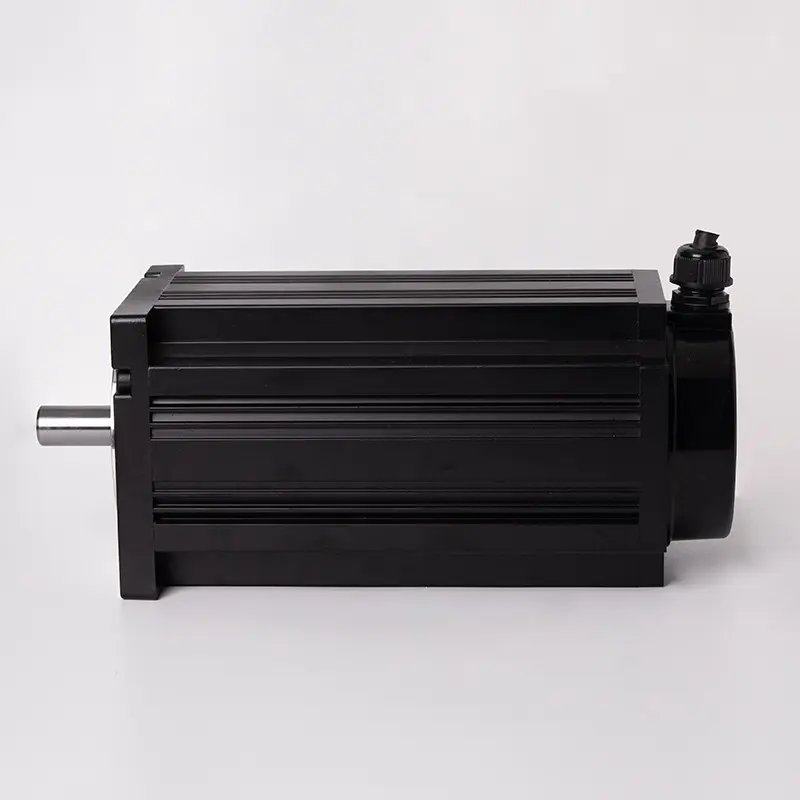

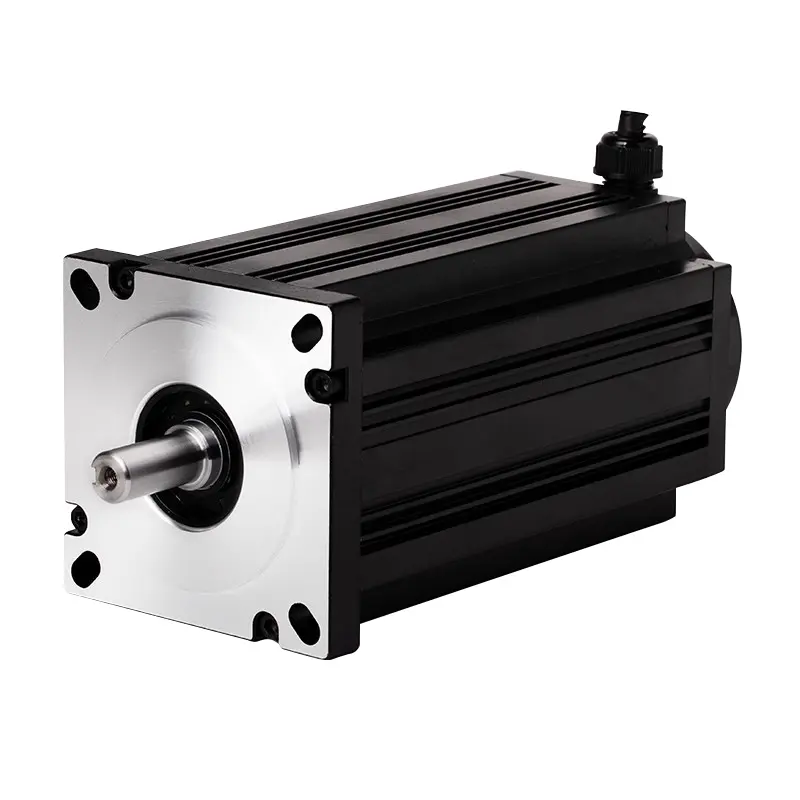

Y09-130D5-1335 220V 3-Phase Stepper Motor, 1.2° Precision, 35N.m Holding Torque

The Y09-130D5-1335 is a powerful 3-phase stepper motor built for high-demand industrial and automation applications. Offering a precise 1.2° step angle and a substantial holding torque of 35N.m, this motor is ideal for applications that require heavy-duty torque with fine-tuned accuracy, such as CNC machines, high-load robotics, and sophisticated automated systems. Operating at 220V AC with a rated current of 6.8A, it ensures efficient power delivery even under the toughest operational conditions.

Engineered with Class B insulation and tested for an insulation resistance of 100MΩ at 1500V AC, the Y09-130D5-1335 provides reliable and secure electrical performance. The high moment of inertia (41.4Kg.cm²) and a solid weight of 19kg ensure stability, reducing vibrations and enhancing control for demanding tasks. With a low phase resistance of 1.09Ω and an inductance of 24mH, this motor achieves smooth and controlled movement across various speeds and operational loads, positioning it as a preferred choice for industrial-grade precision applications.
