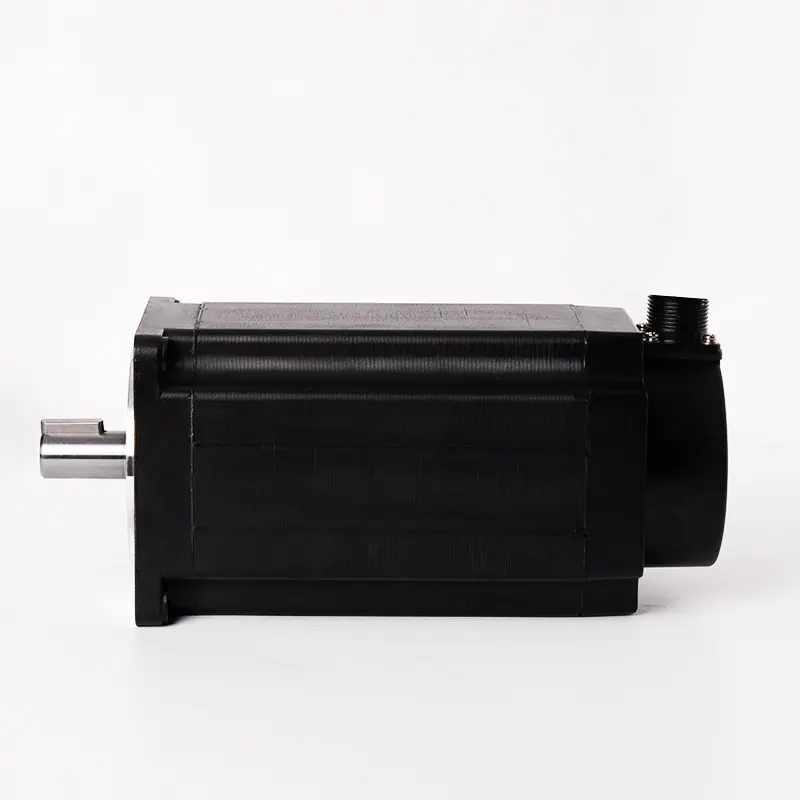

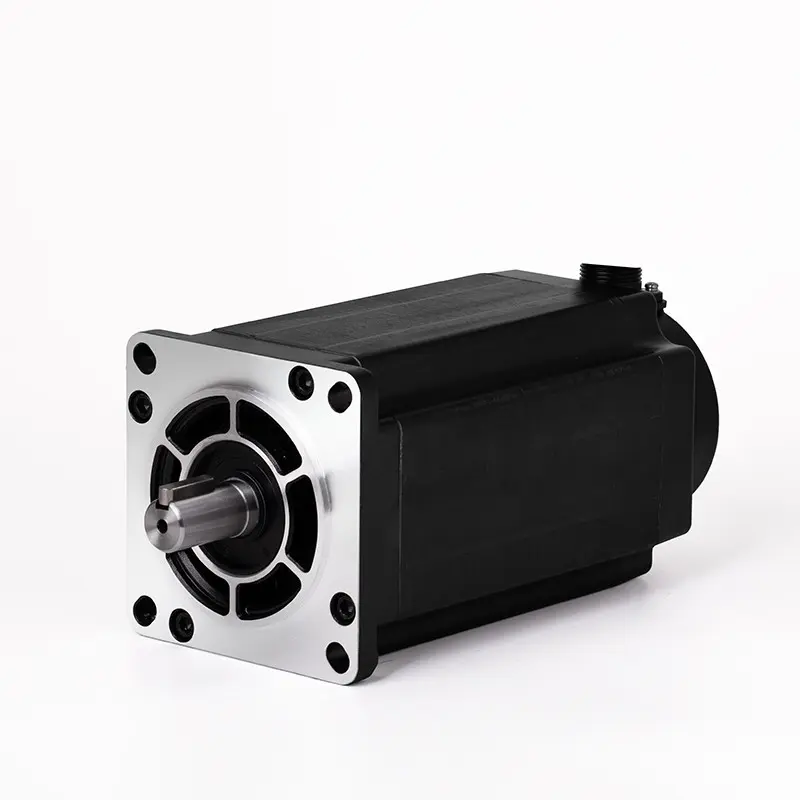

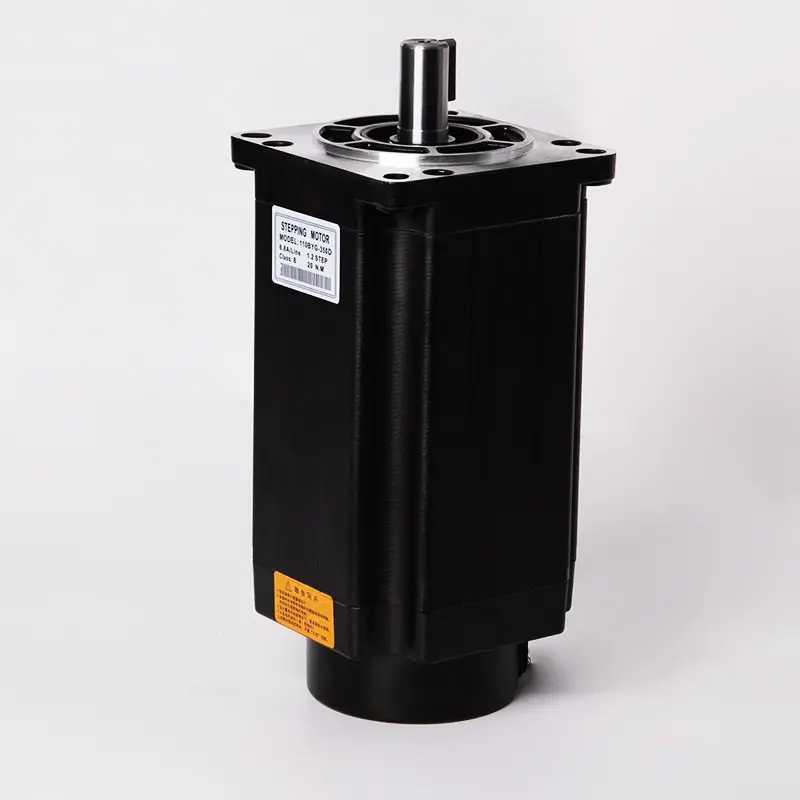

Y09-110D5-1119 220V 3-Phase Stepper Motor, 1.2° Precision, 19N.m Torque

The Y09-110D5-1119 is a robust 3-phase stepper motor designed for high-performance applications requiring precise control and high torque. Featuring a refined 1.2° step angle and delivering an impressive holding torque of 19N.m, this motor excels in tasks demanding accuracy, stability, and power, such as in CNC machinery, heavy-duty robotics, and advanced automation systems. Operating at 220V AC with a rated current of 6.0A, it provides efficient power utilization, even under intense operational demands.

Constructed with Class B insulation and offering an insulation resistance of 100MΩ at 1500V AC, the Y09-110D5-1119 ensures dependable electrical performance. With a high moment of inertia (14.8Kg.cm²) and weighing 8.8kg, it is built for applications that require sustained stability and reduced vibration. This motor’s low phase resistance (1.28Ω) and 19mH inductance support smooth performance across a range of speeds and loads, making it an ideal choice for complex motion control systems.
