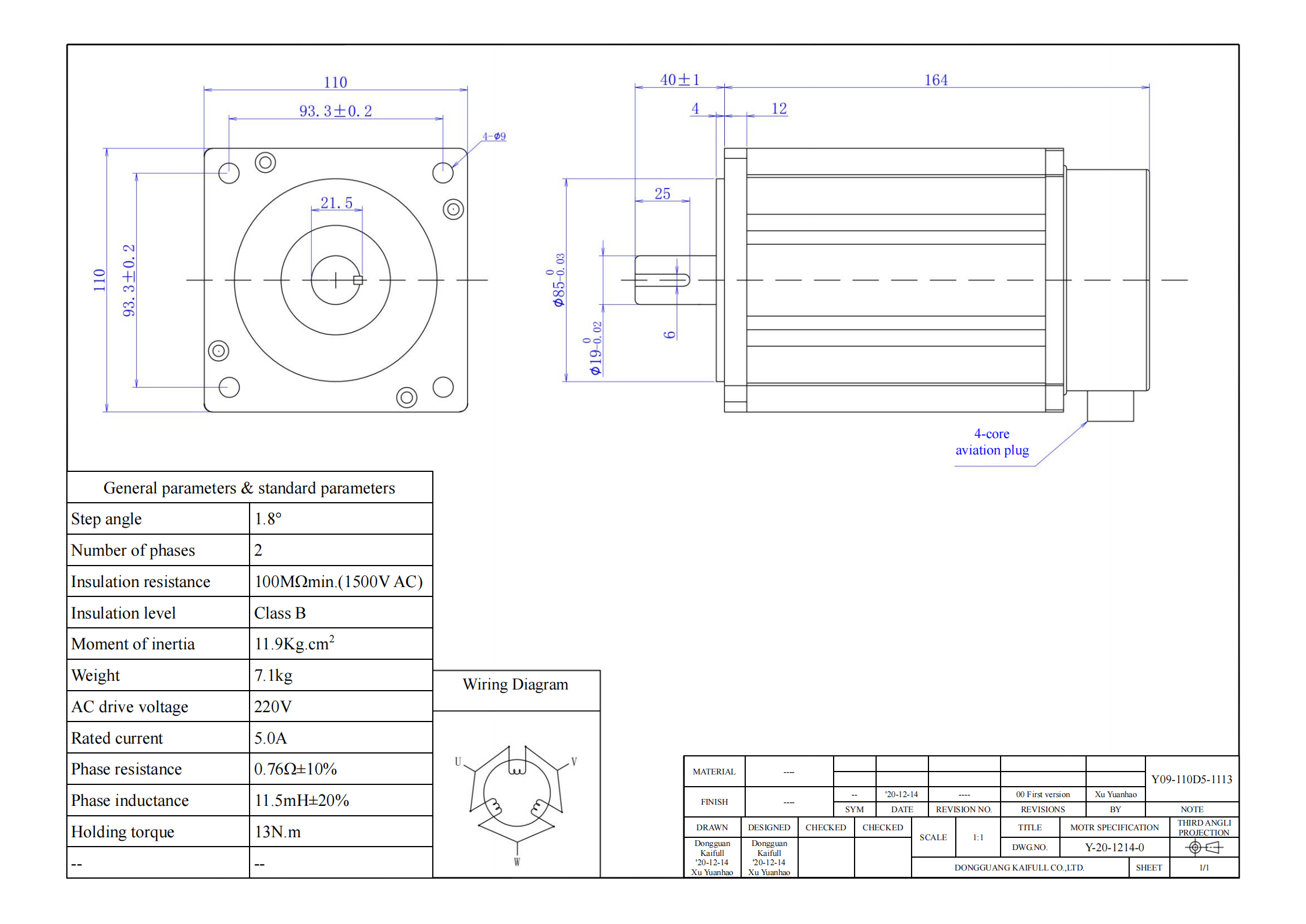

Y09-110D5-1113 Heavy-Duty 220V Stepper Motor, 13N.m Holding Torque

The Y09-110D5-1113 is a powerful stepper motor tailored for high-torque applications, delivering a robust holding torque of 13N.m. With a 1.8° step angle and dual-phase structure, this motor operates efficiently at 220V AC and a rated current of 5.0A, making it ideal for precision-oriented tasks in industrial automation, robotics, and CNC machinery. Constructed with a durable Class B insulation system and a high insulation resistance of 100MΩ at 1500V AC, the Y09-110D5-1113 ensures exceptional electrical stability and longevity under continuous use.

Designed to handle demanding loads, this stepper motor features a low phase resistance of 0.76Ω and an inductance of 11.5mH, promoting efficient power usage. Its substantial moment of inertia (11.9Kg.cm²) and weight (7.1kg) make it a reliable choice for maintaining stability and accuracy in motion control applications. With a durable construction built to withstand rigorous environments, the Y09-110D5-1113 is an optimal solution for tasks requiring high torque and precise control.
