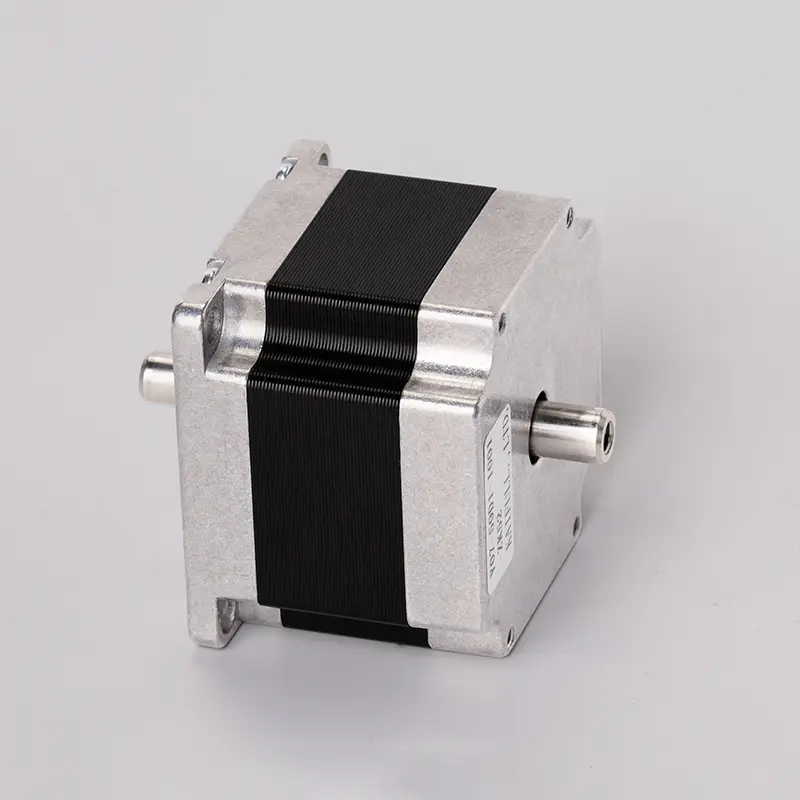

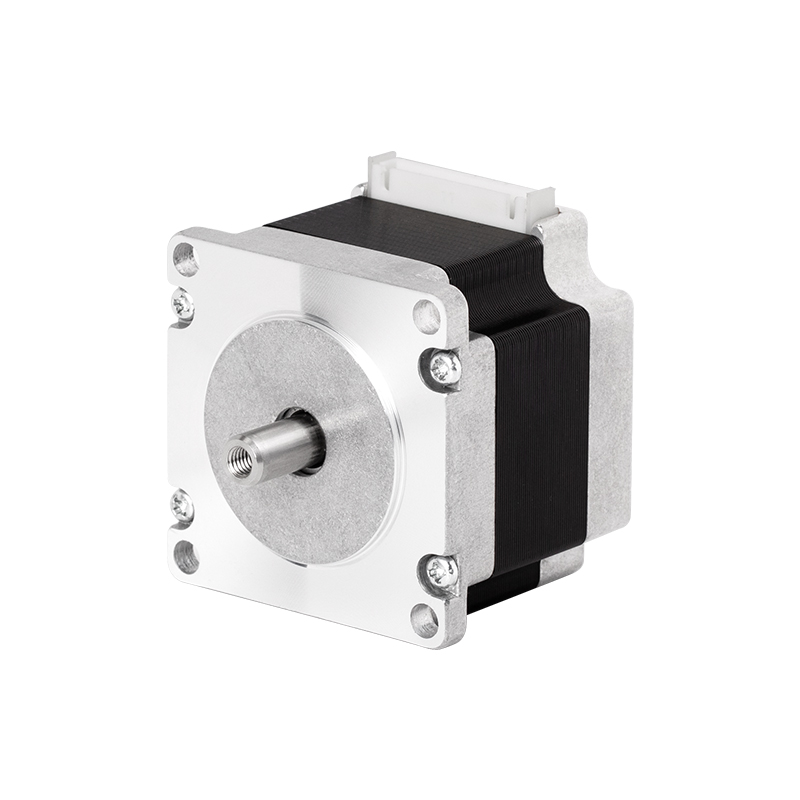

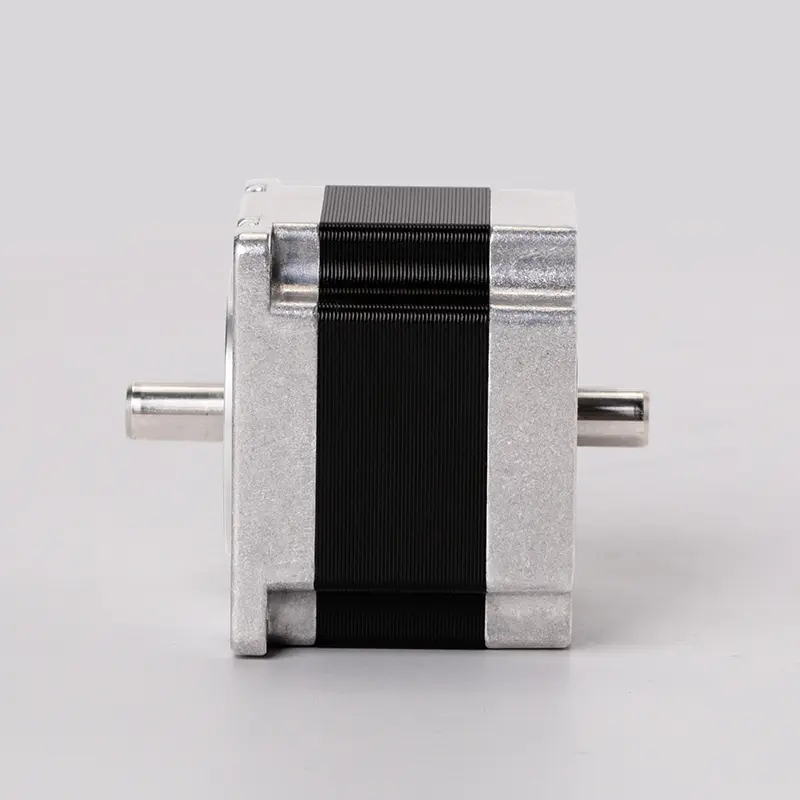

Y07-59D1-1001-ZK52 Closed-Loop Stepper Motor with 760mN.m Torque

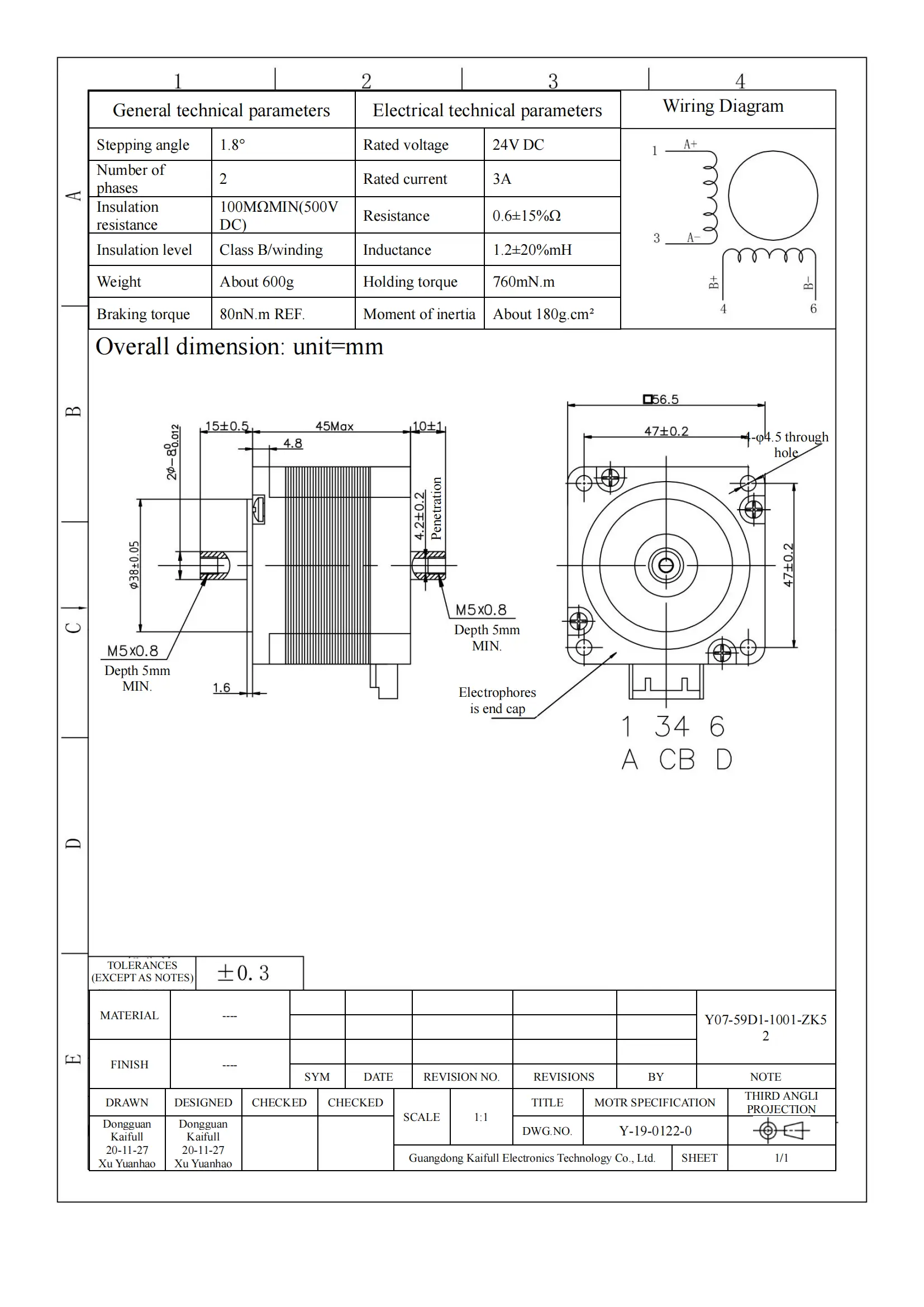

The Y07-59D1-1001-ZK52 Closed-Loop Stepper Motor is specifically designed for high-torque applications requiring precise control and reliability. With a stepping angle of 1.8° and a two-phase configuration, it delivers consistent and accurate motion. The motor boasts an impressive holding torque of 760mN.m, making it suitable for demanding tasks that require strong performance. Constructed with a minimum insulation resistance of 100MΩ at 500V DC and Class B insulation standards, it ensures safe and durable operation. Operating on a rated voltage of 24V DC with a rated current of 3A, it has a resistance of 0.6Ω±15% and an inductance of 1.2mH±20%, optimizing its energy efficiency. Weighing about 600g and with a moment of inertia of approximately 180g.cm², this motor combines robust performance with a manageable weight. Additionally, it features a braking torque of 80nN.m, enhancing its effectiveness in various industrial applications.
