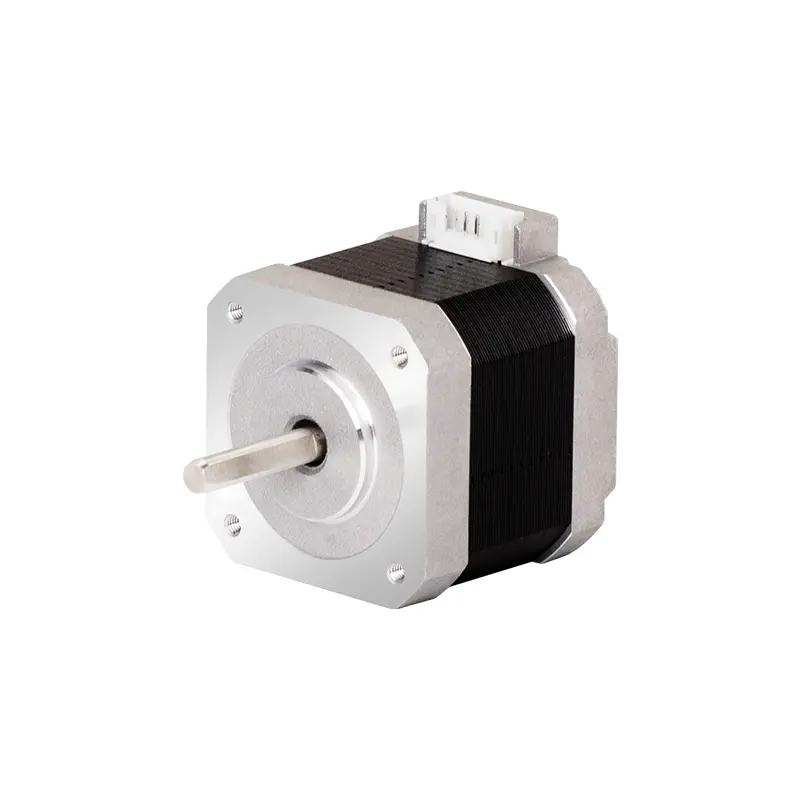

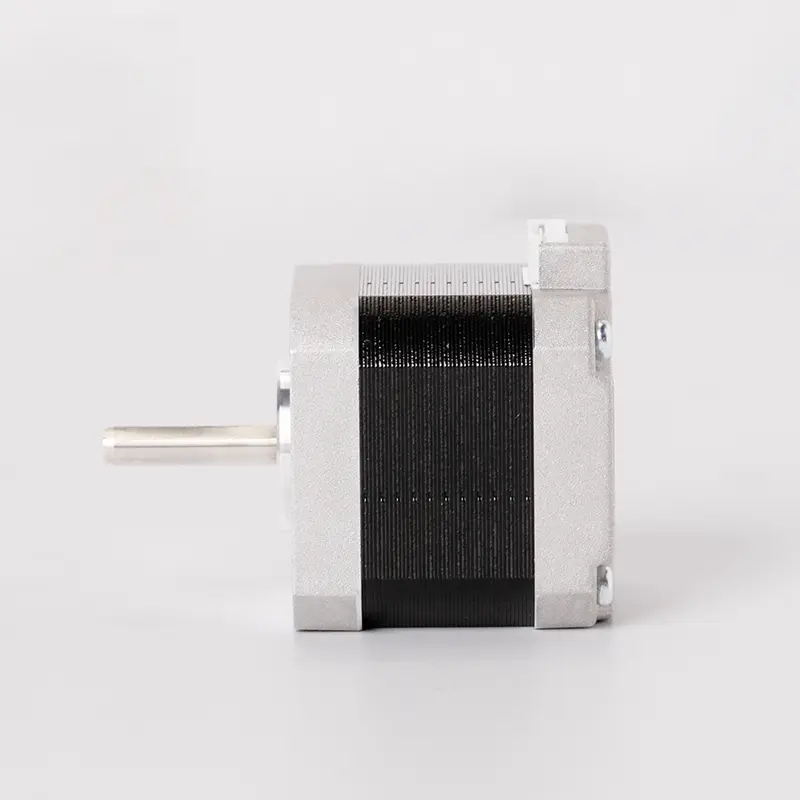

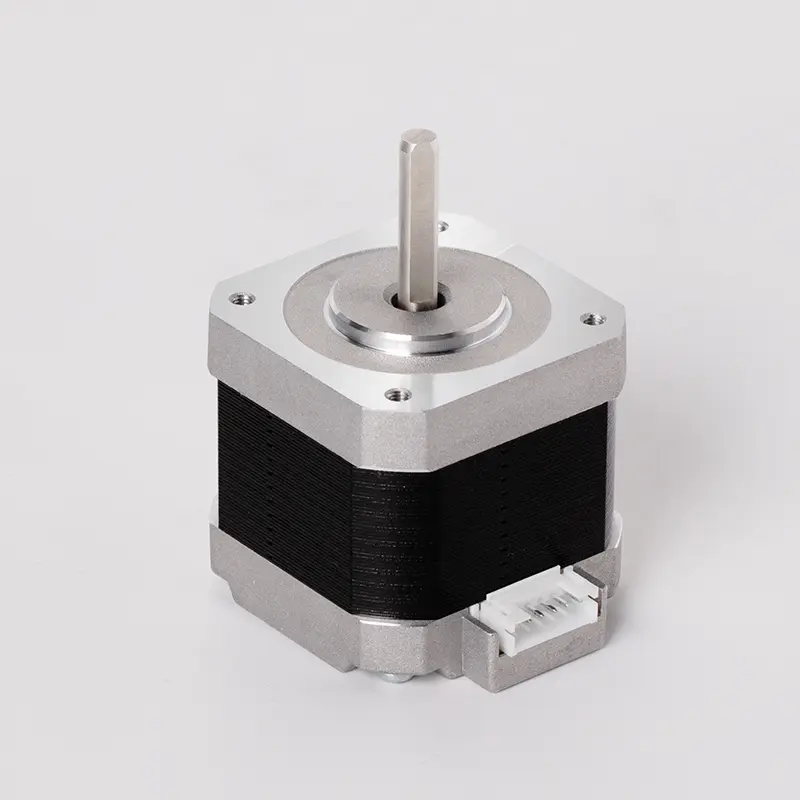

Y07-43D1-4271 1.8° Stepper Motor with High Holding Torque for Precision Control
Y07-43D1-4271 1.8° Stepper Motor with High Holding Torque for Precision Control
Y07-43D1-4271 1.8° Stepper Motor with High Holding Torque for Precision Control

Y07-43D1-4271 1.8° Stepper Motor with High Holding Torque for Precision Control

The Y07-43D1-4271 stepper motor offers high holding torque and precise control, making it ideal for industrial applications requiring reliable and accurate motion control, such as robotics and CNC systems.

    Contact us
    Detail description
    Technical parameter
    Product size

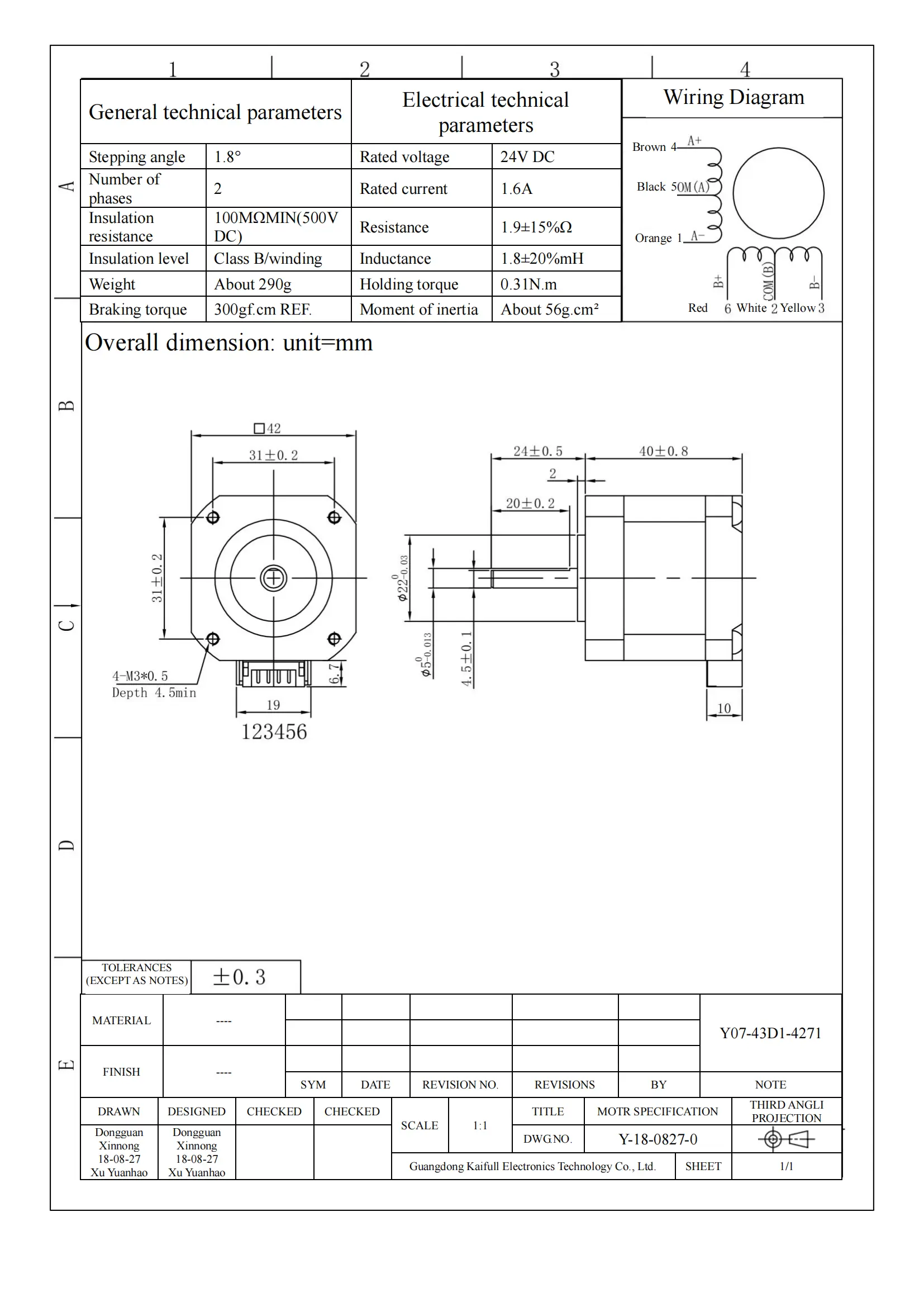

    drawing





    ●Motor configuration and performance parameters

    General technical parameters

    Electrical technical parameters

    Stepping angle

    1.8°

    Rated voltage

    24V DC

    Number of phases

    2

    Rated current

    1.6A

    Insulation resistance

    100MΩMIN(500V DC)

    Resistance

    1.9±15%Ω

    Insulation level

    Class B/winding

    Inductance

    1.8±20%mH

    Weight

    About 290g

    Holding torque

    0.31N.m

    Braking torque

    300gf.cm REF.

    Moment of inertia

    About 56g.cm²

    Y07-43D1-4271_00
