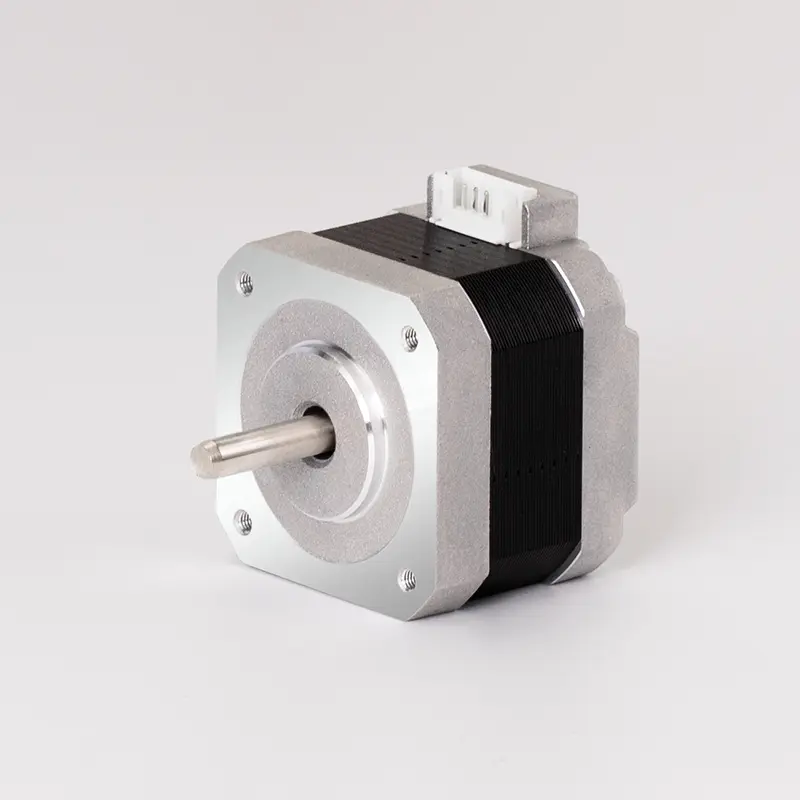

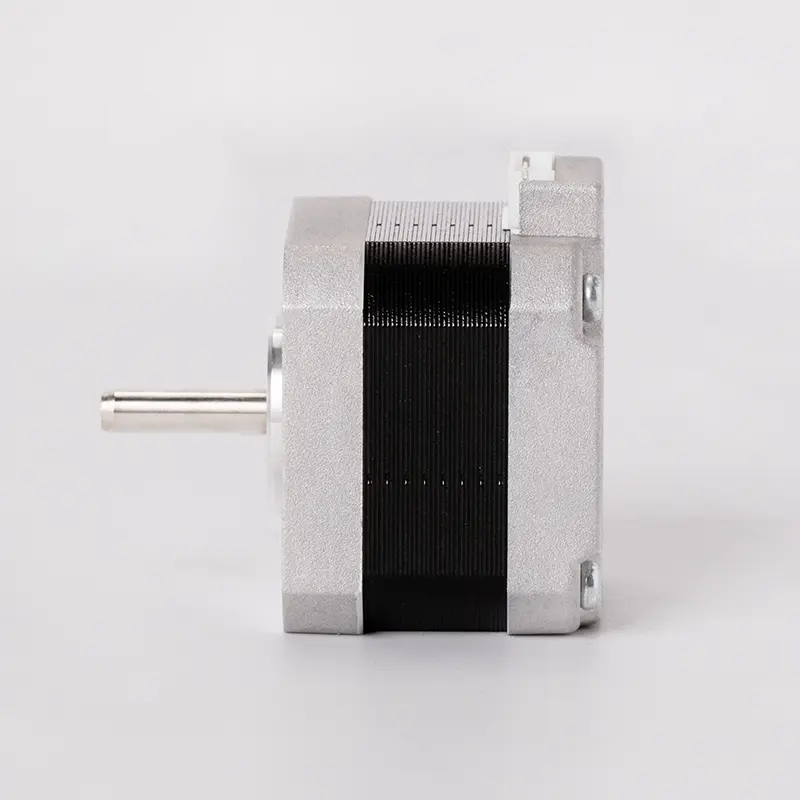

Y07-43D1-1065 Stepper Motor: High-Torque and Precision Performance

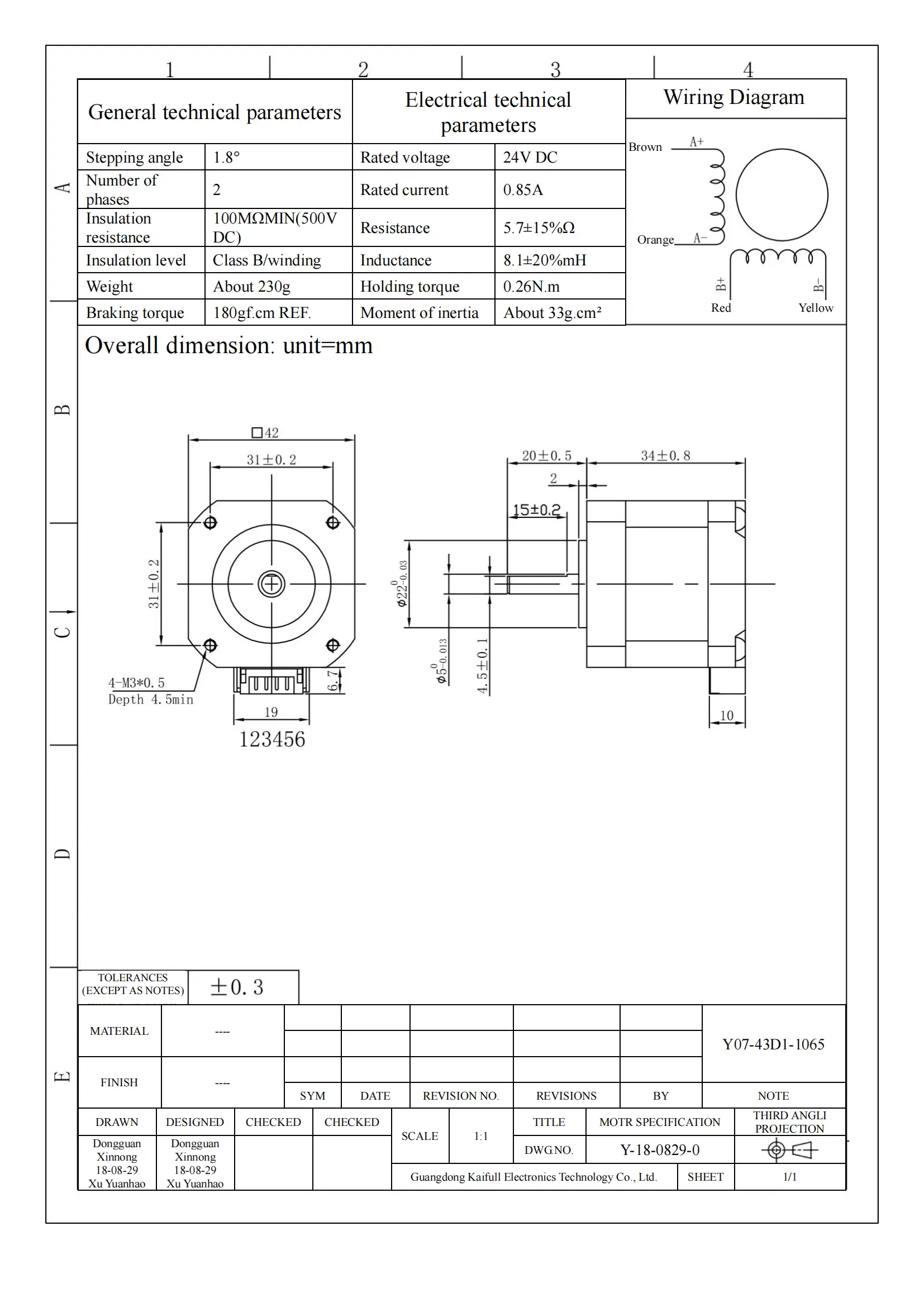

The Y07-43D1-1065 stepper motor is designed for precise and reliable motion control in a variety of applications. Featuring a 1.8° step angle and a 24V DC rated voltage, this motor provides optimal torque and efficiency with its two-phase design. It operates with a rated current of 0.85A, ensuring consistent power delivery. With an insulation resistance of 100MΩ minimum (500V DC) and Class B insulation, this motor can withstand rigorous environments. The motor's electrical characteristics include a resistance of 5.7±15%Ω and an inductance of 8.1±20%mH, providing excellent stability and responsiveness. Weighing approximately 230g, the Y07-43D1-1065 delivers a holding torque of 0.26N.m and a braking torque of 180gf.cm. Its moment of inertia of about 33g.cm² makes it suitable for precise positioning tasks in automation, CNC machinery, and robotics.
