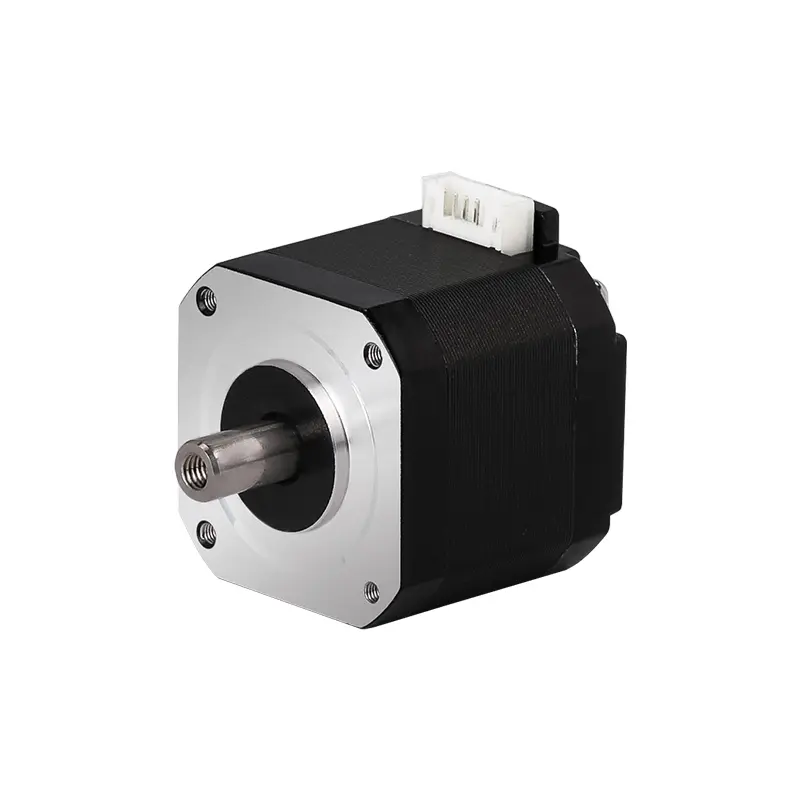

Y07-35D47-5247-E1000 Closed-Loop Stepper Motor with 0.2Nm Holding Torque

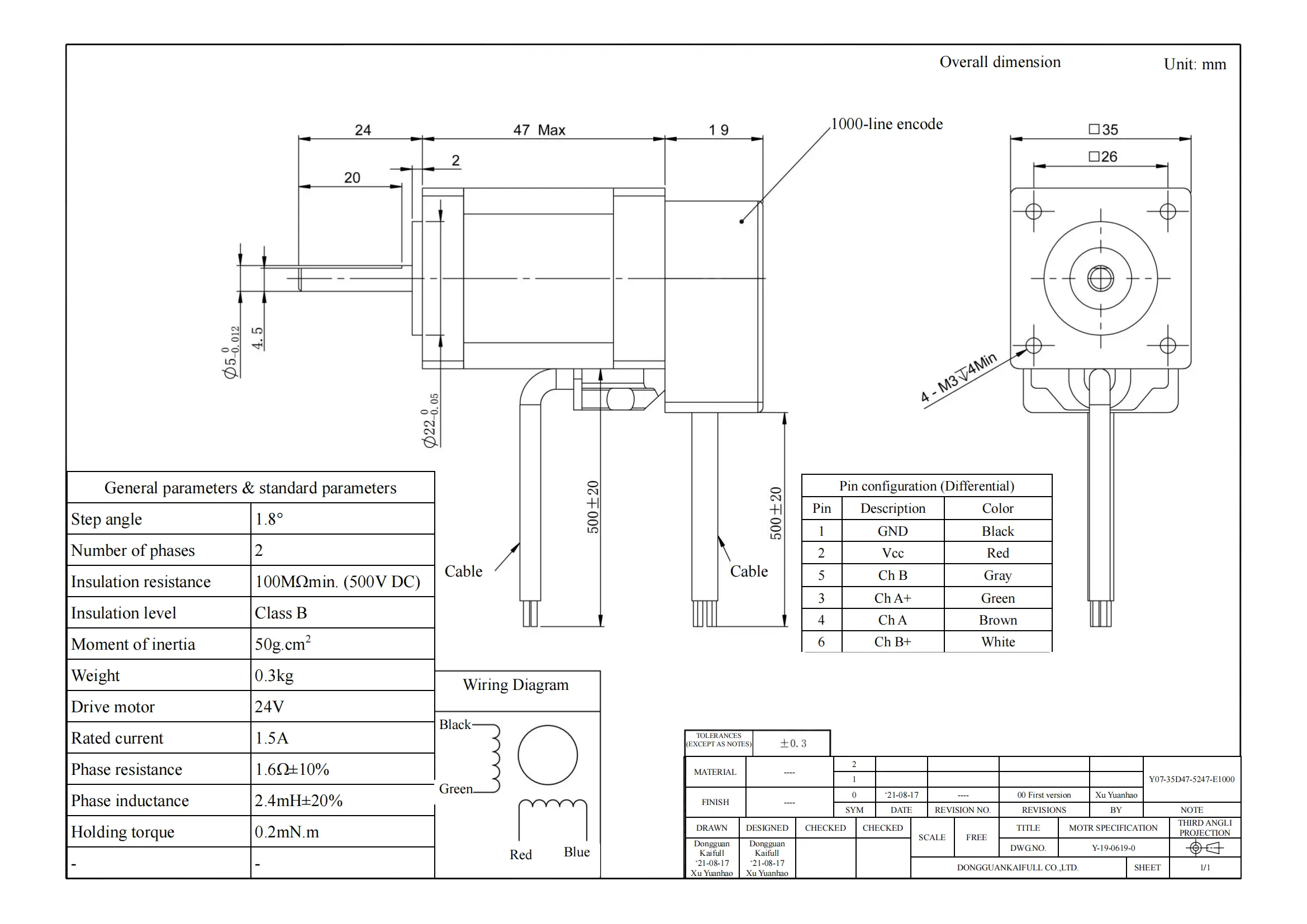

The Y07-35D47-5247-E1000 Closed-Loop Stepper Motor is designed for applications requiring precise and stable performance, offering a 1.8° step angle with two-phase operation for reliable control. With a holding torque of 0.2Nm, this motor is ideal for tasks needing consistent, fine positioning. It is built with a minimum insulation resistance of 100MΩ at 500V DC and meets Class B insulation standards, ensuring safe and efficient operation. This 24V motor operates at a rated current of 1.5A, featuring a phase resistance of 1.6Ω±10% and a phase inductance of 2.4mH±20%, which optimizes performance while minimizing energy consumption. With a moment of inertia of 50g.cm² and a weight of just 0.3kg, the Y07-35D47-5247-E1000 combines lightweight design with high precision, making it an excellent choice for compact industrial applications.
