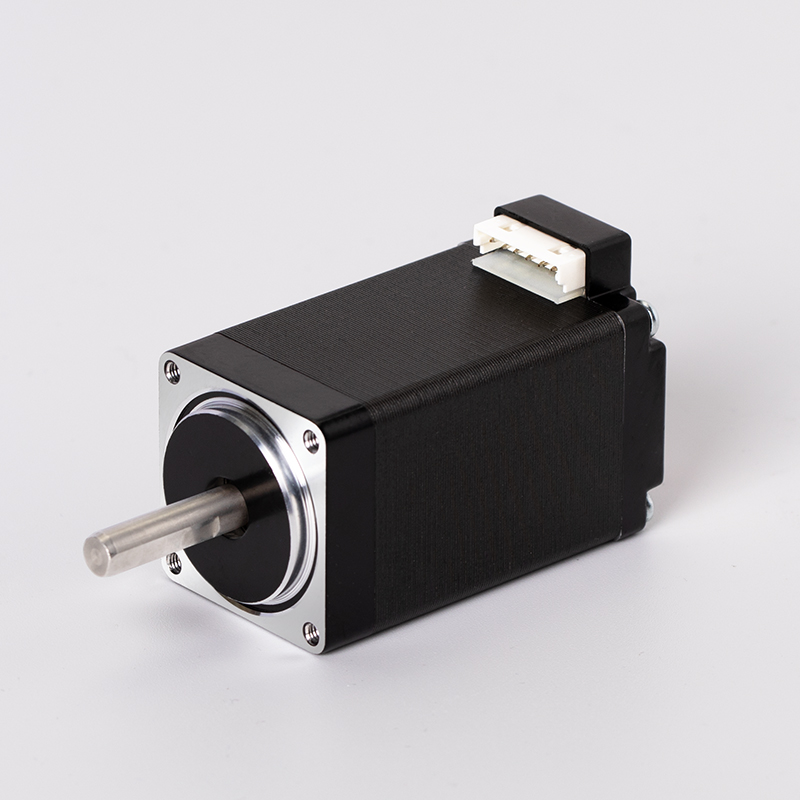

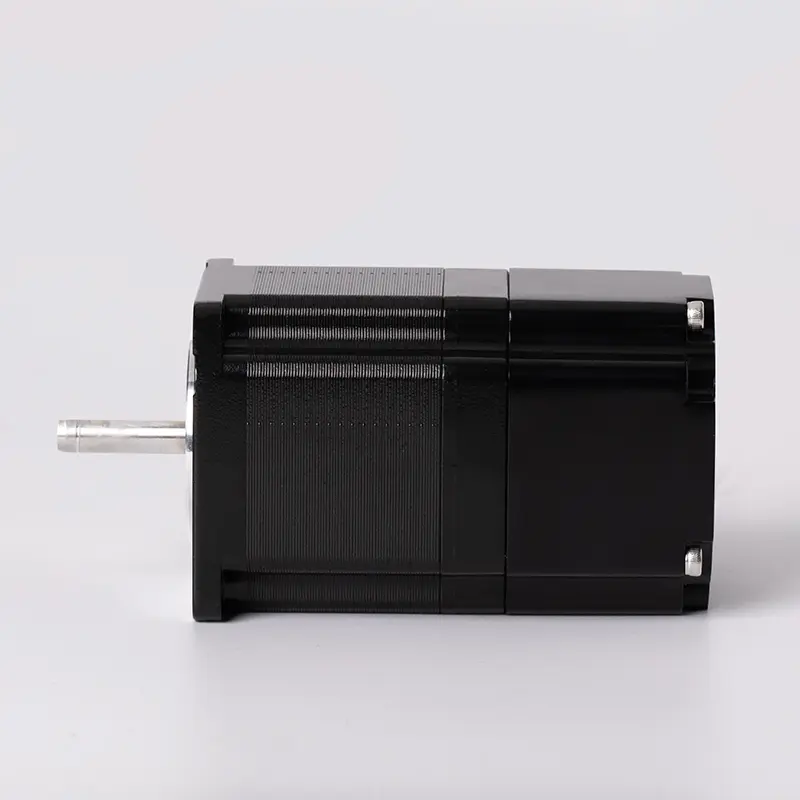

Y07-28D34-3011E Closed-loop Stepper Motor, 38mm Frame, 1.8° Step Angle
Y07-28D34-3011E Closed-loop Stepper Motor, 38mm Frame, 1.8° Step Angle

Y07-28D34-3011E Closed-loop Stepper Motor – 38mm Frame, 1.8° Step Angle

Y07-28D34-3011E closed-loop stepper motor, 38mm frame, 1.8° step angle, 1A current, low inertia, ideal for robotics & automation.

    Contact us Download
    Detail description
    Technical parameter
    Product size
    drawing

    The Y07-28D34-3011E is a compact and reliable closed-loop stepper motor featuring a 38mm frame size and a 1.8° step angle. This motor is designed for high precision and efficiency in space-constrained applications such as robotics, CNC machines, and automation systems. With a rated current of 1A, a resistance of 2.1Ω, and an inductance of 1.5mH, the Y07-28D34-3011E ensures stable performance and energy efficiency.

    The rotor inertia of just 9g.cm² allows for quick response times and smooth operation, making it ideal for systems requiring fast, precise motion control. Its 8mm shaft diameter and a total motor length of 68mm make this motor a compact yet powerful solution for your motion control needs.

    ●Motor configuration and performance parameters

    Frame size/mm

    38mm

    Model

    Y07-28D34-3011E

    Step Angle

    1.8

    Rated current/A

    1

    Resistance/Ω

    2.1

    Inductance/mH

    1.5

    Maintain torque/N.m Minimum thrust N

    0.05

    Rotor inertia/g.cm²

    9

    Number of leads

    4

    Shaft diameter

    8

    Axis length

    10

    Motor length/mm

    68

    Mass/g

    140
