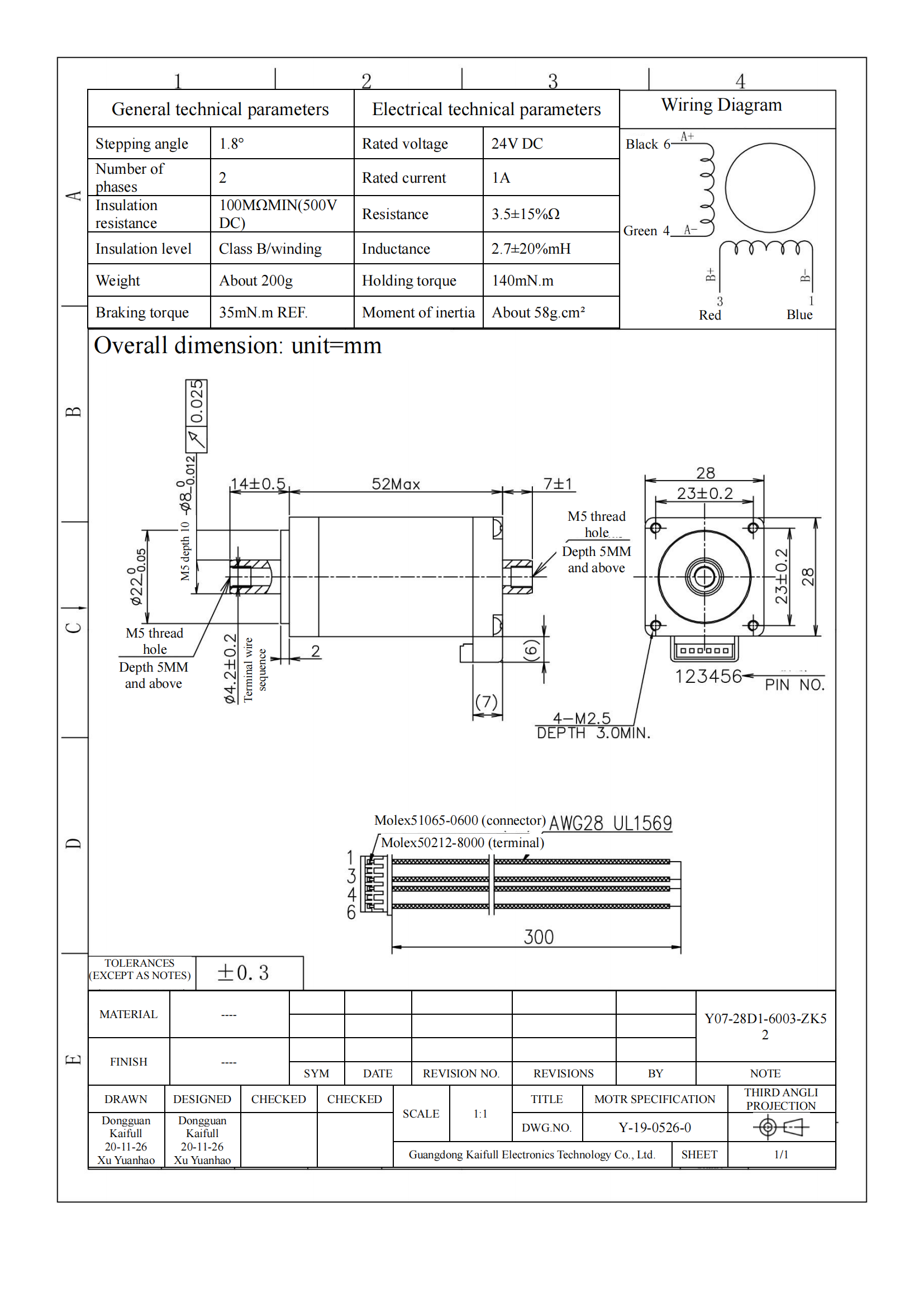

Y07-28D1-6003-ZK52 Stepping Motor: Reliable Torque for Diverse Applications

The Y07-28D1-6003-ZK52 stepping motor is designed for high-performance motion control with a stepping angle of 1.8° and a rated voltage of 24V DC. This two-phase motor operates efficiently at a rated current of 1A and features an impressive insulation resistance of 100MΩ minimum (500V DC), ensuring robust performance in various operational environments. With a resistance of 3.5±15Ω and an inductance of 2.7±20%mH, the motor is well-suited for precise control applications. Weighing around 200g, it provides a holding torque of 140mN.m and a braking torque of 35mN.m, along with a moment of inertia of about 58g.cm². This combination of characteristics makes the Y07-28D1-6003-ZK52 an ideal choice for automation and robotics, where reliable torque and precise positioning are crucial.
