Y07-28D1-5010D Stepper Motor | 28mm Frame, 1A Rated Current
Y07-28D1-5010D Stepper Motor | 28mm Frame, 1A Rated Current
Y07-28D1-5010D Stepper Motor | 28mm Frame, 1A Rated Current

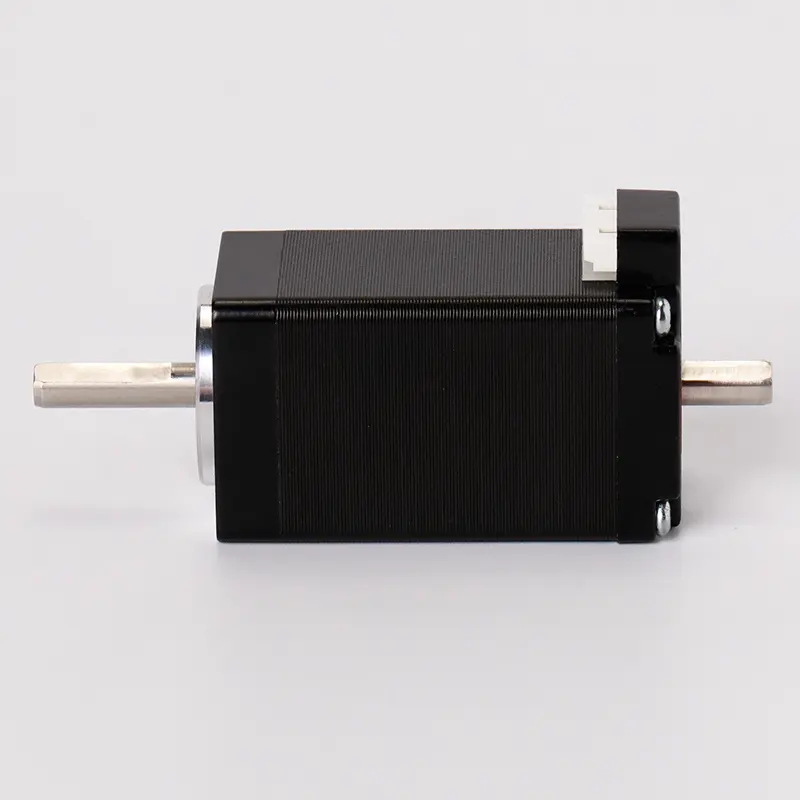

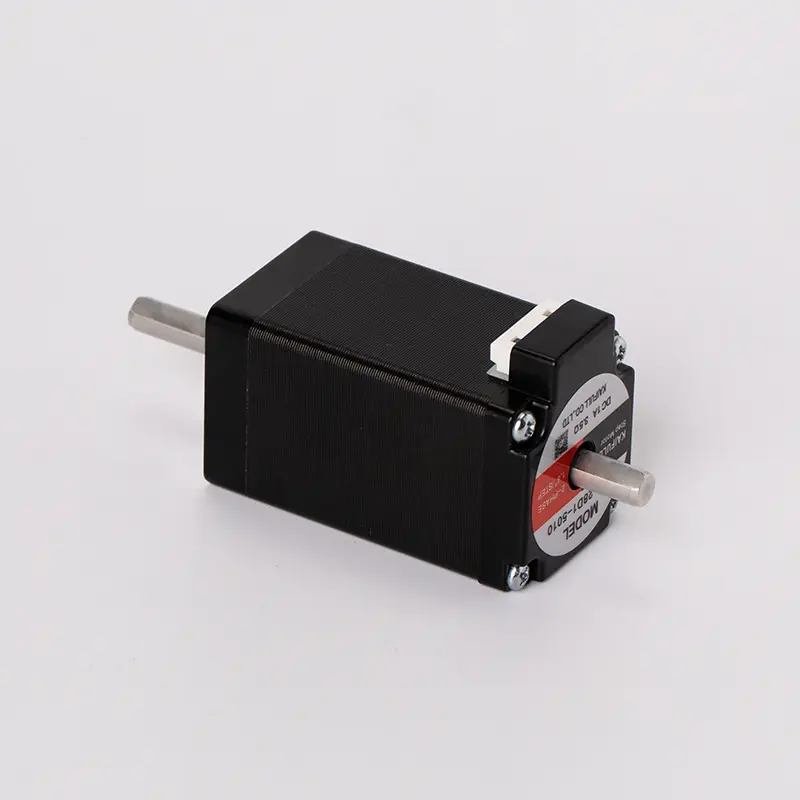

Y07-28D1-5010D Stepper Motor | 28mm Frame, 1.8° Step Angle, 1A Rated Current

Y07-28D1-5010D compact stepper motor with 1.8° step angle, 1A rated current, and 0.1N minimum thrust, perfect for robotics and small automation.

    Contact us Download
    Detail description
    Technical parameter
    Product size
    drawing

    The Y07-28D1-5010D stepper motor is designed for precision control and compact applications. With a 1.8° step angle, this motor provides smooth motion with high accuracy. It operates at a rated current of 1A, featuring a resistance of 3.5Ω and inductance of 2.3mH. The motor delivers a minimum thrust of 0.1N and has a rotor inertia of 18g·cm², making it ideal for small machines, robotics, and automation systems. The motor’s 5mm shaft diameter and 20mm axis length ensure compatibility with a wide range of devices. Weighing just 200g and measuring 51mm in length, it offers a perfect balance between performance and size.

    ●Motor configuration and performance parameters

    Frame size /mm

    28mm

    Model

    Y07-28D1-5010D

    Step Angle

    1.8

    Rated current /A

    1

    Resistance /Ω

    3.5

    Inductance /mH

    2.3

    Maintain torque /N.m
    Minimum thrust N

    0.1

    Rotor inertia /g.cm²

    18

    Number of leads

    4

    Shaft diameter

    5

    Axis length

    20

    Motor length /mm

    51

    Mass /g

    200

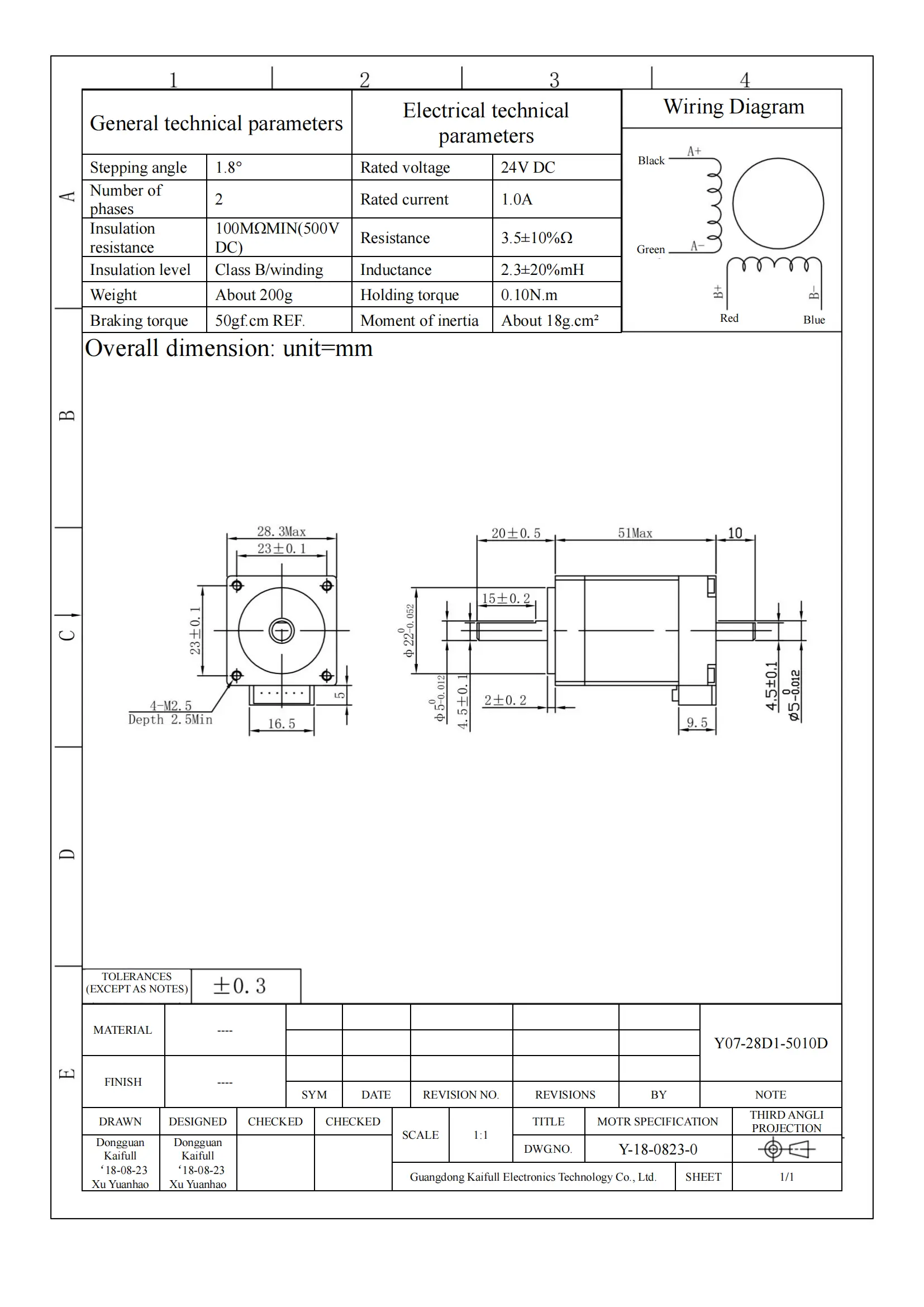

    Y07-28D1-5010D_00
