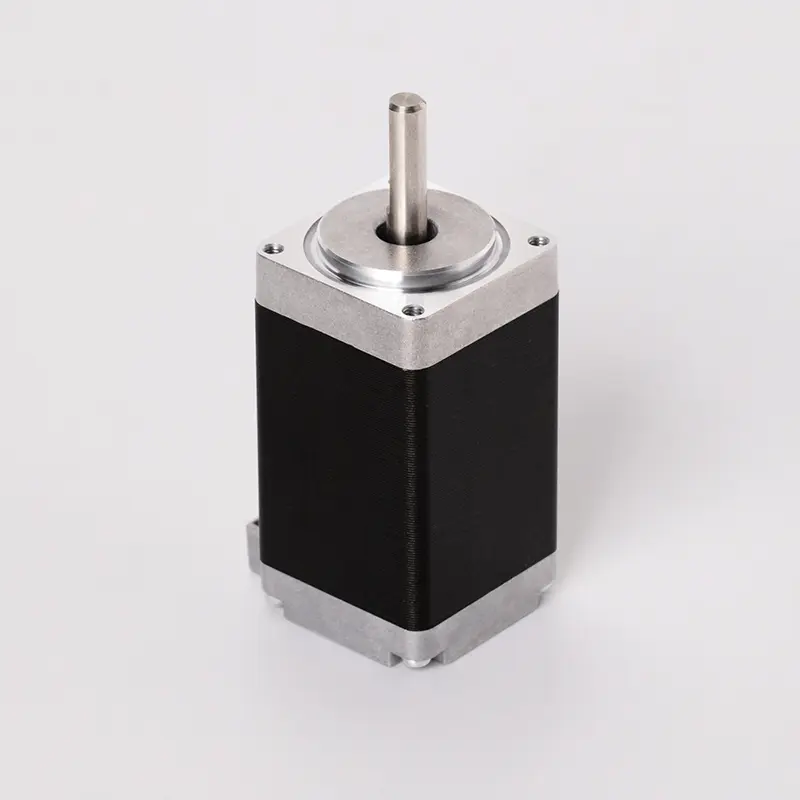

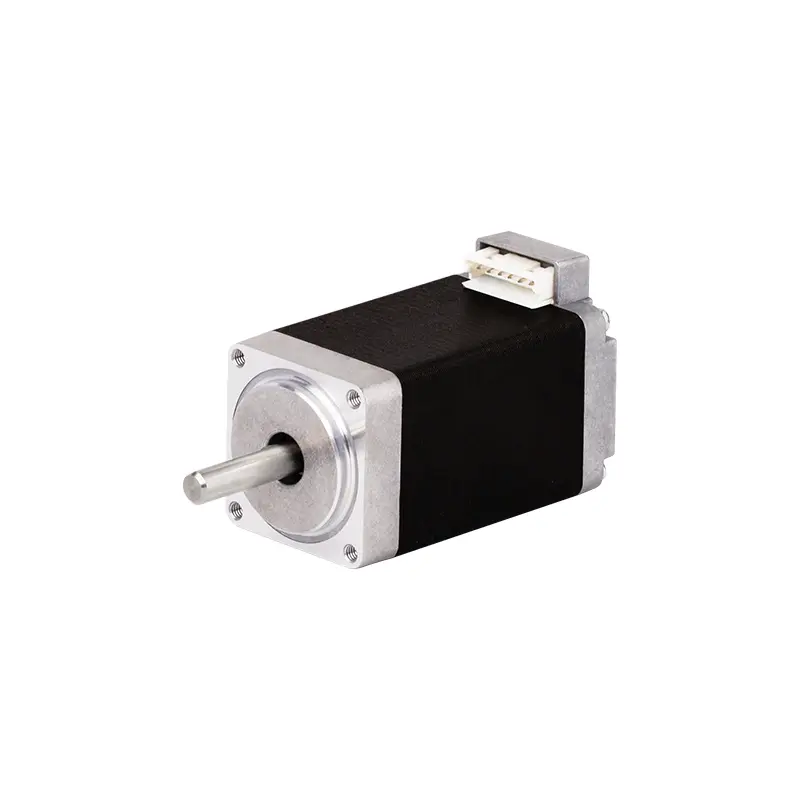

Y07-28D1-5008 Stepping Motor: Enhanced Torque for Precision Applications

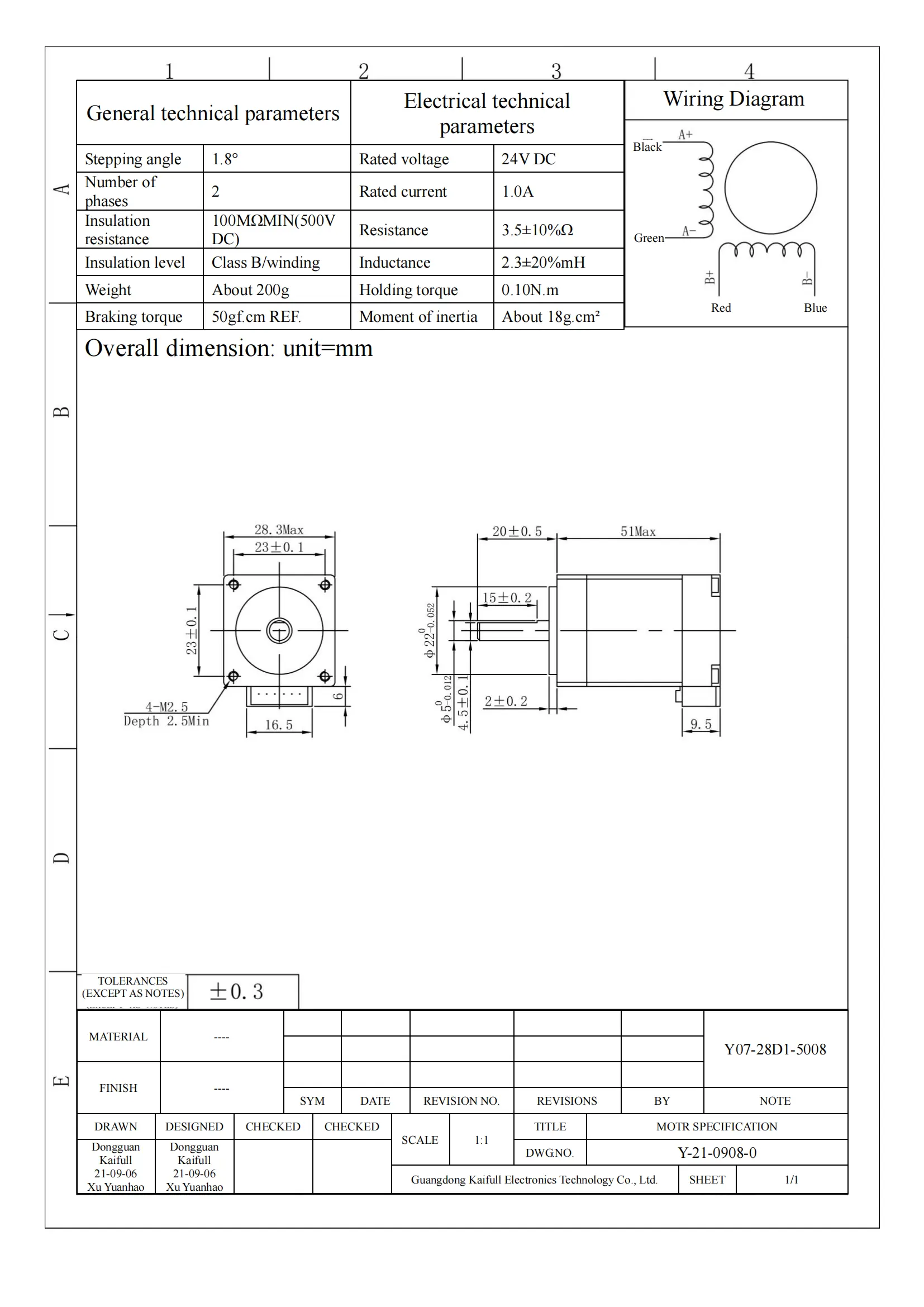

The Y07-28D1-5008 stepping motor is engineered to provide exceptional performance in precision motion control applications. With a stepping angle of 1.8° and rated for a voltage of 24V DC, this two-phase motor operates efficiently at a rated current of 1.0A. It boasts an insulation resistance of 100MΩ minimum (500V DC), ensuring reliable operation in various environments. The motor features a resistance rating of 3.5±10Ω and an inductance of 2.3±20%mH, making it suitable for demanding tasks. Weighing approximately 200g, the Y07-28D1-5008 offers a holding torque of 0.10N.m and a braking torque of 50gf.cm, along with a moment of inertia of about 18g.cm². This combination of features makes it an ideal choice for automation systems that require precise torque management and reliability, enhancing overall operational efficiency.
