Y07-28D1-2003-ZK52 Compact Closed-Loop Stepper Motor with 60mN.m Torque

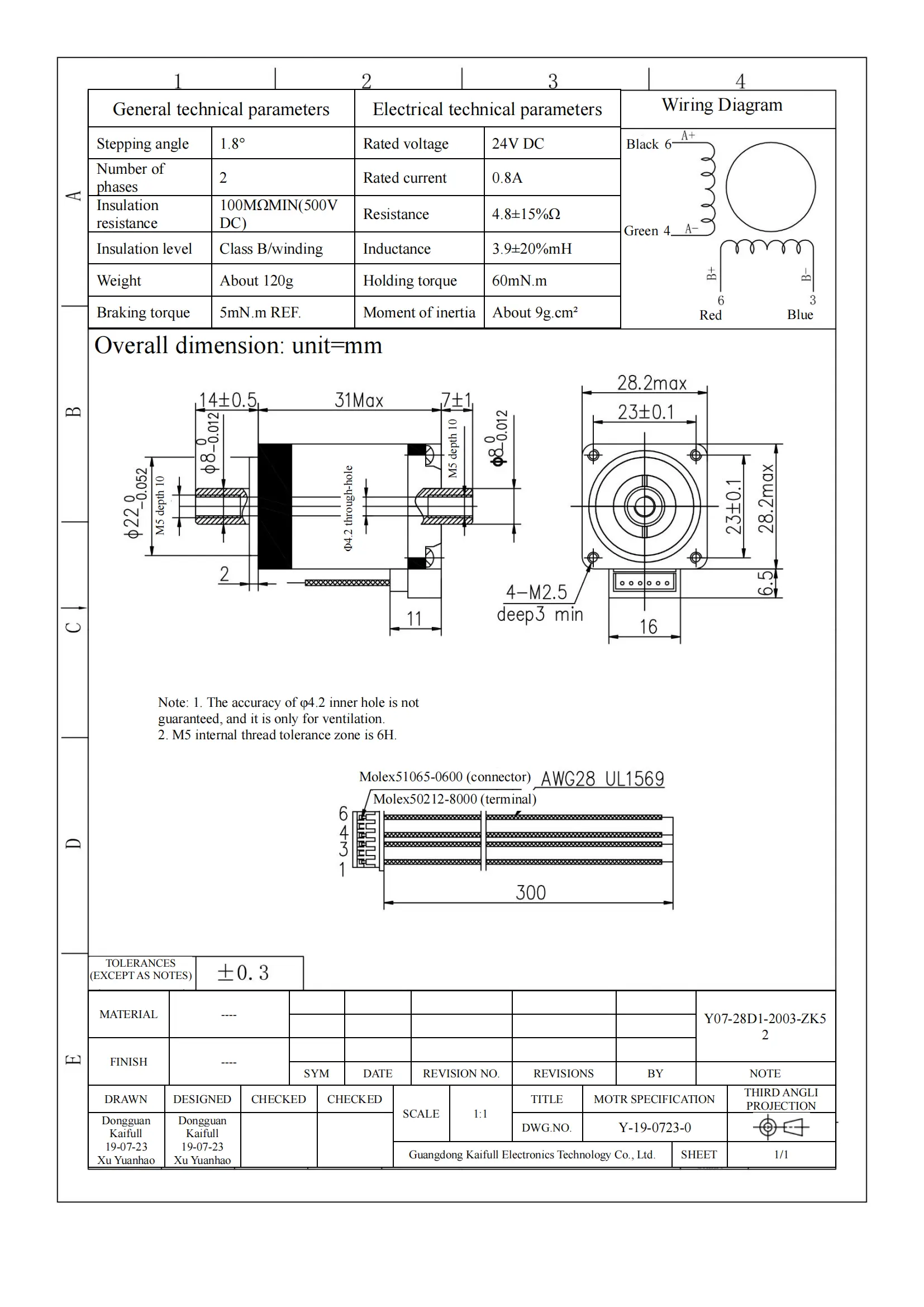

The Y07-28D1-2003-ZK52 Compact Closed-Loop Stepper Motor is designed for precision applications that demand compact size and reliable control. With a 1.8° stepping angle and two-phase operation, this motor provides consistent, accurate movement, supported by a holding torque of 60mN.m. Built with high-quality insulation (100MΩ minimum at 500V DC) and a Class B insulation level, it ensures safe, reliable performance. Operating at a 24V DC rated voltage with a current of 0.8A, the motor achieves efficient energy usage with a resistance of 4.8Ω±15% and inductance of 3.9mH±20%. Lightweight at only 120g, it offers a moment of inertia of approximately 9g.cm², making it suitable for small-scale applications that still require dependable torque. Its braking torque of 5mN.m ensures stability, making the Y07-28D1-2003-ZK52 an excellent choice for compact, precision-driven industrial tasks.
