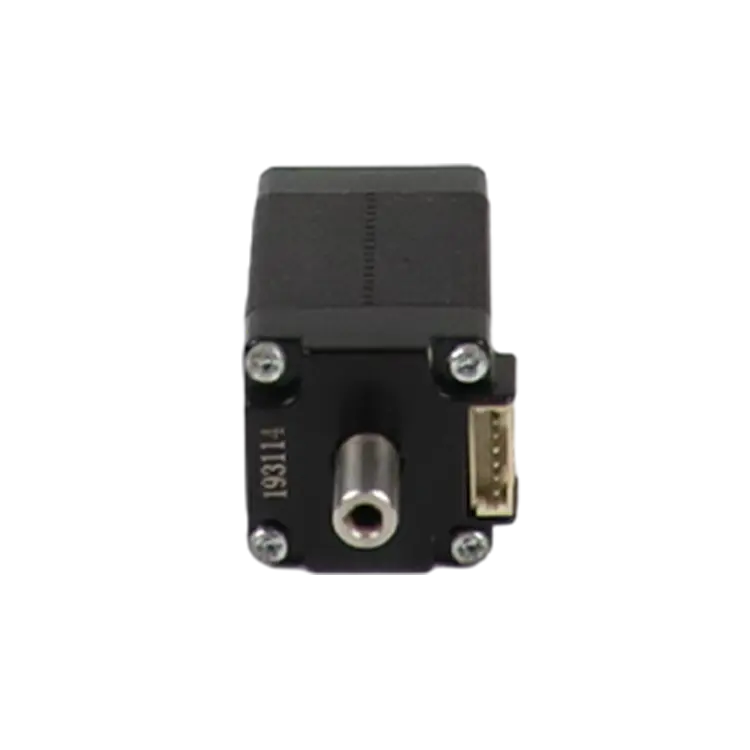

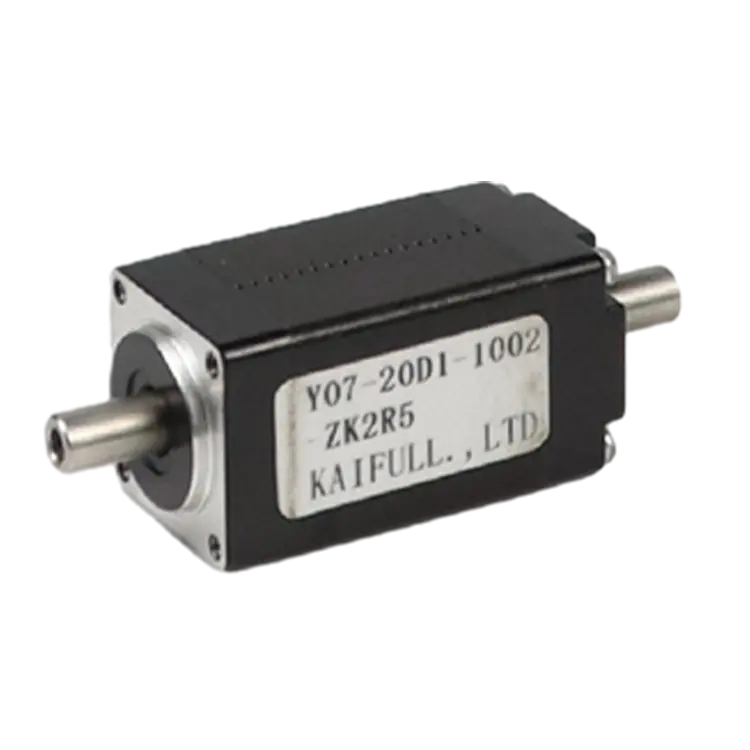

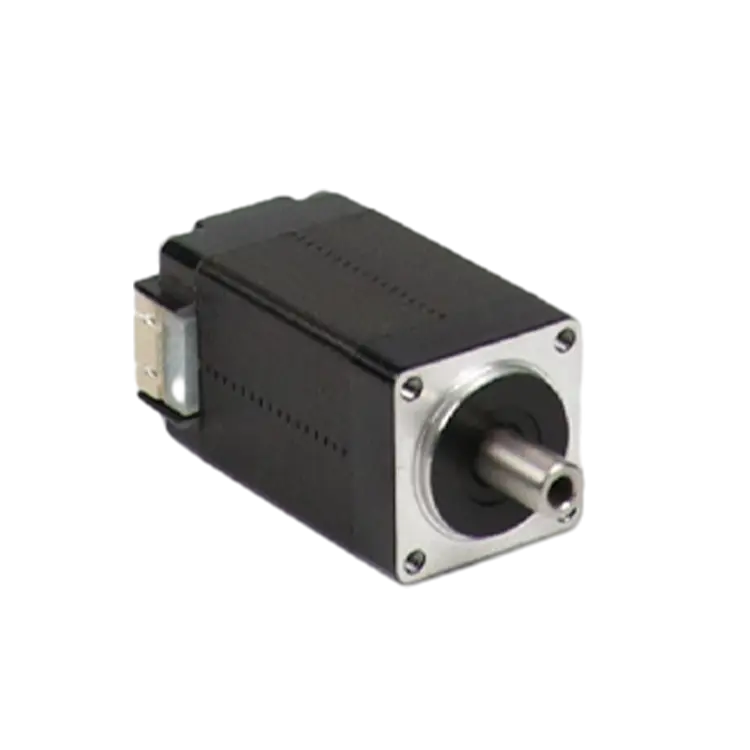

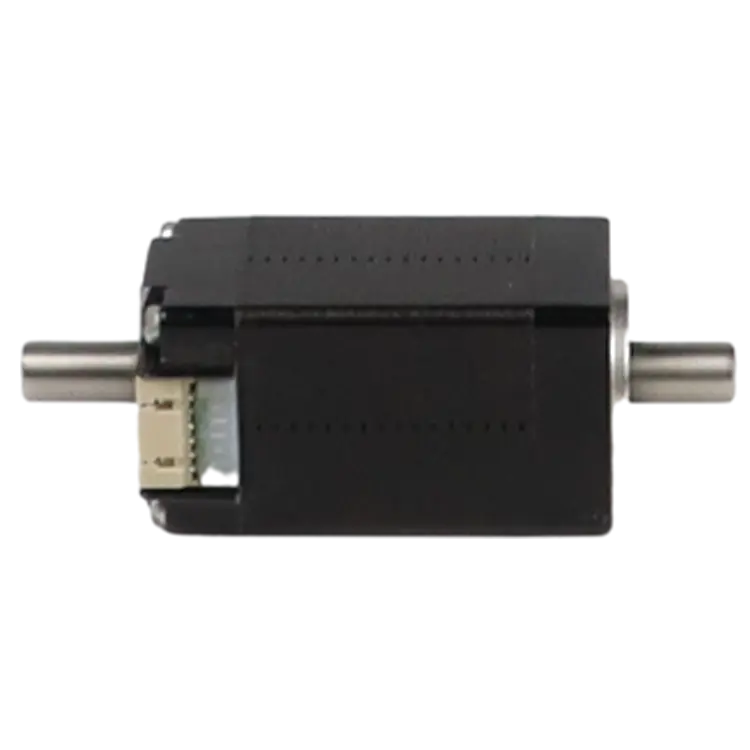

Y07-20D1-1002-ZK25 High-Precision Stepper Motor

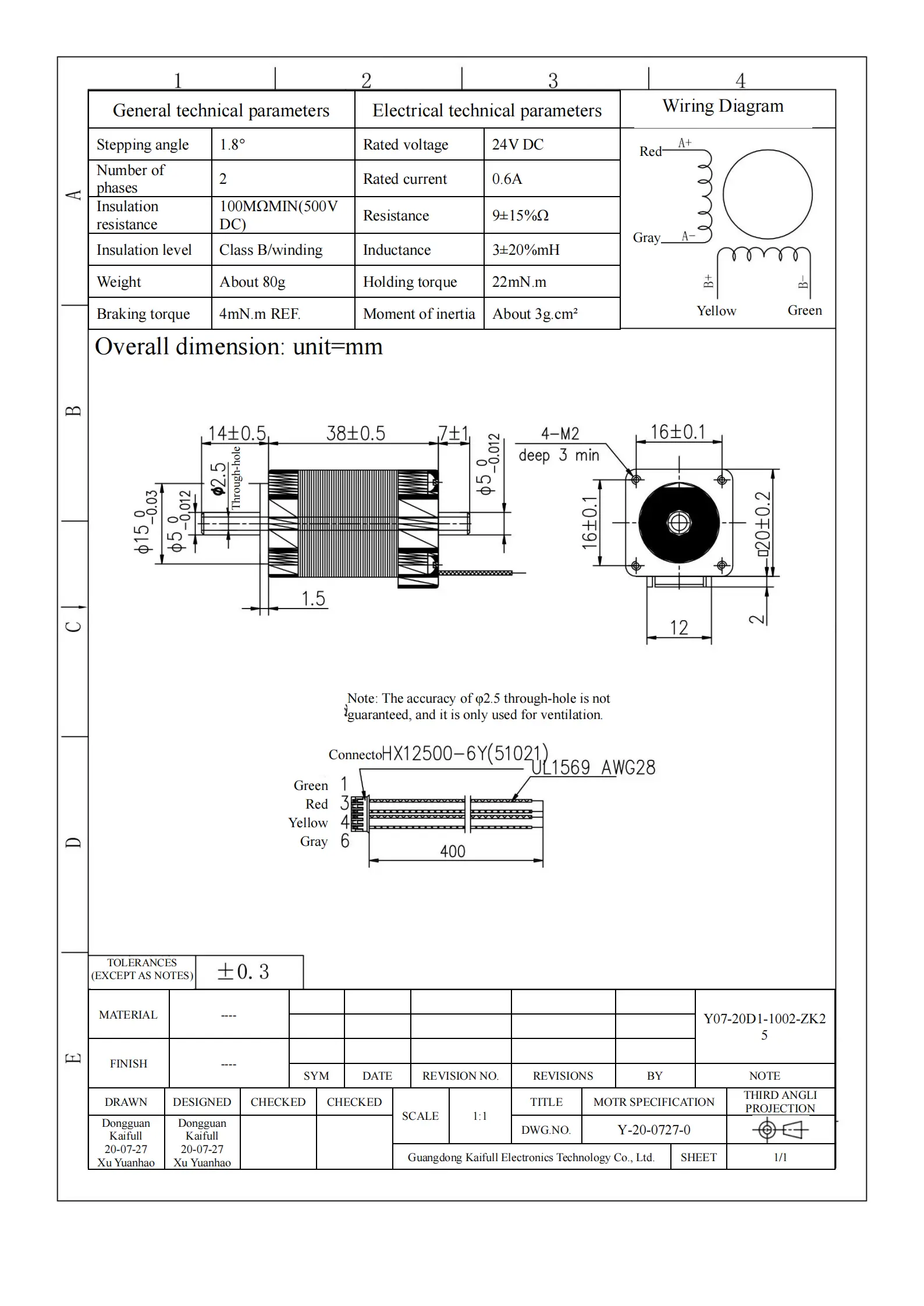

The Y07-20D1-1002-ZK25 stepper motor is a high-precision component designed to meet the rigorous demands of modern automation and control systems. With a stepping angle of 1.8°, this motor ensures accurate positioning, making it ideal for applications requiring meticulous control and movement. Its two-phase design enhances stability and efficiency, providing reliable operation across various tasks.

Operating at a rated voltage of 24V DC, the Y07-20D1-1002-ZK25 achieves a rated current of 0.6A, striking a balance between power consumption and performance. The motor features a resistance of 9 ± 15%, ensuring consistent electrical characteristics while maintaining operational integrity. With an insulation resistance of 100 MΩ minimum at 500V DC, this motor is built to withstand challenging environments, providing peace of mind in terms of durability and reliability.

Designed to meet Class B insulation standards, the winding construction protects against overheating, enhancing the longevity of the motor in demanding applications. The inductance is specified at 3 ± 20% mH, contributing to smooth operation and responsiveness during use. Weighing approximately 80 grams, this lightweight motor is easy to integrate into various systems without adding unnecessary bulk.

One of the standout features of the Y07-20D1-1002-ZK25 is its holding torque of 22 mN·m, which ensures that the motor can maintain its position under load, making it ideal for scenarios where precision is essential. Additionally, the braking torque of 4 mN·m (reference value) provides an extra layer of control, allowing for quick stops and enhanced safety during operation. The moment of inertia is around 3 g·cm², enabling rapid acceleration and deceleration, which is crucial for applications involving dynamic motion.

In conclusion, the Y07-20D1-1002-ZK25 stepper motor is an excellent choice for engineers and developers looking for a reliable and high-performance solution. Whether in robotics, CNC machining, or other automation applications, this motor delivers exceptional accuracy, torque, and efficiency. Upgrade your projects with the Y07-20D1-1002-ZK25 and experience the benefits of precision motion control technology.
