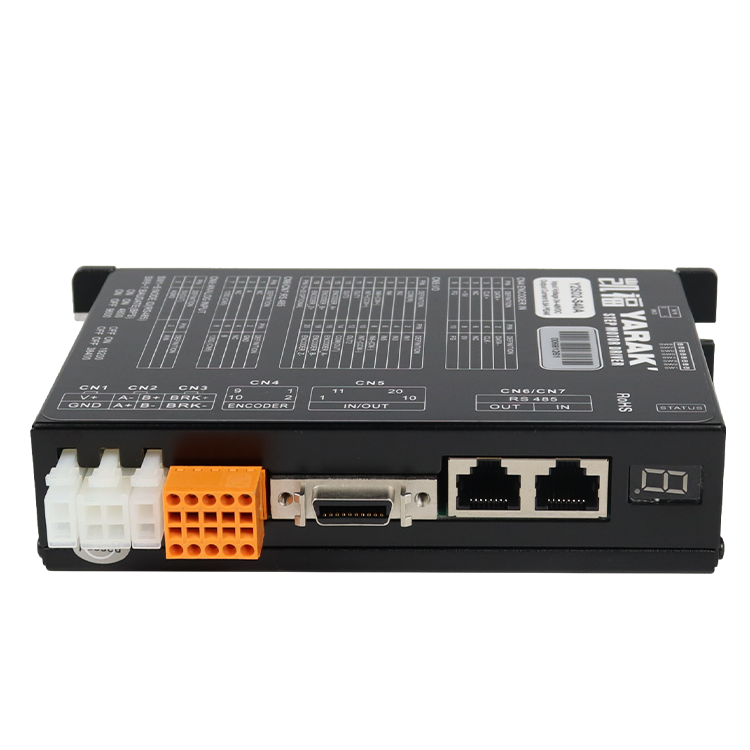

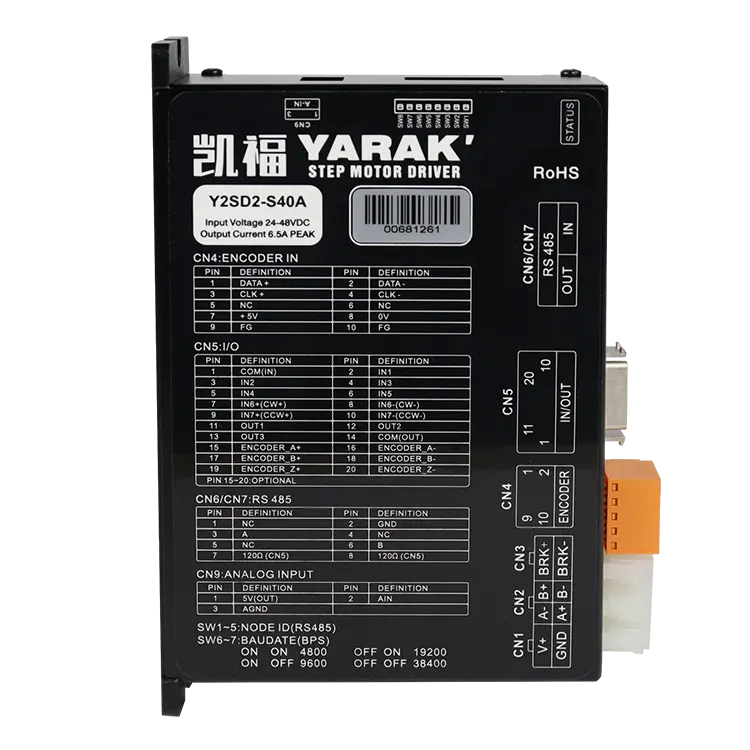

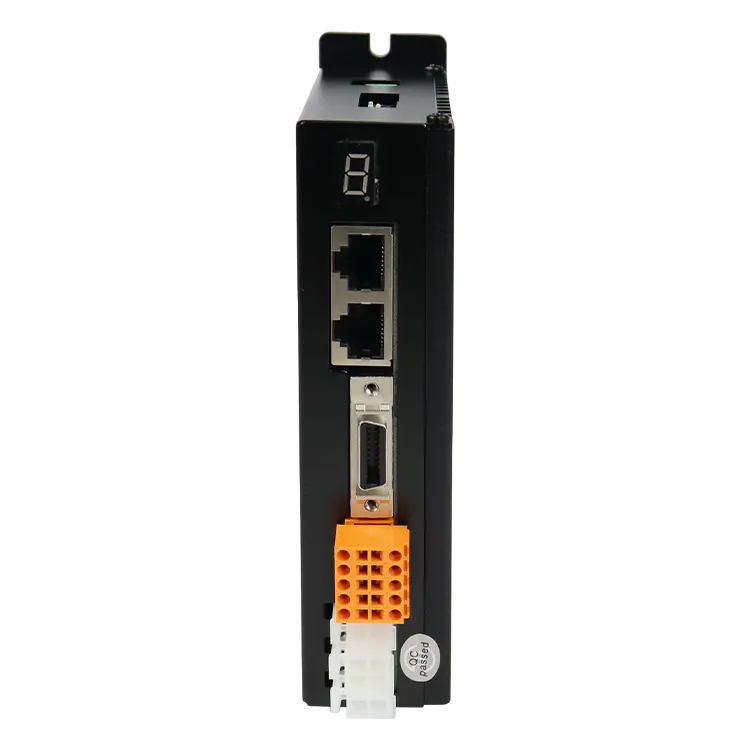

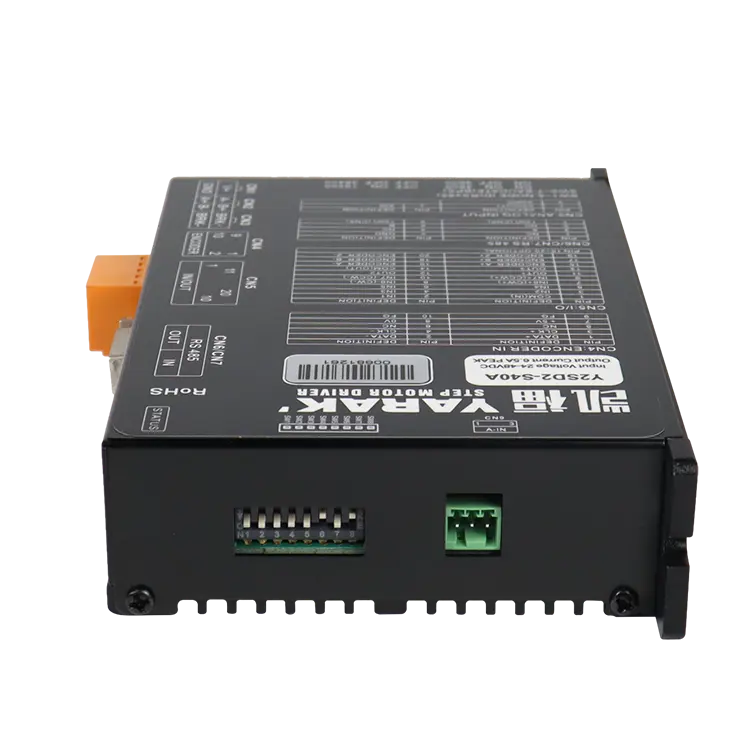

Versatile Y2SD2-S40A Stepper Motor Driver

The Y2SD2-S40A stepper motor driver is engineered to deliver high-performance control for 2-phase bipolar stepper motors equipped with encoders. With an input supply voltage range of DC 24V to 48V (±10%), this driver is designed to accommodate a variety of applications while ensuring reliability and efficiency. It features a maximum output current of 7.8A (peak), allowing it to effectively manage high-torque demands, making it suitable for complex automation tasks.

This driver supports both internal and external pulse modes, providing flexibility in operation. Users can easily switch between these modes based on their control requirements. The built-in communication interface includes digital inputs such as /SV ON (Servo On), /RESET (alarm reset), /START (motor start/stop), /JOG (motor point), and /HOME (return to zero), which facilitate straightforward control and monitoring of the motor’s status.

The Y2SD2-S40A also offers digital output signals for enhanced functionality, including /IN POSITION and /ALARM, ensuring that operators are promptly notified of the motor's status. LED indicators provide visual feedback on the operational state and any faults, enhancing user experience and ease of troubleshooting.

With dimensions of 156mm (L) x 97mm (W) x 33.5mm (H) and a weight of approximately 500g, this driver is compact enough for easy integration into various systems without compromising on performance. The RS485 communication interface supports up to 30 nodes, allowing for seamless connectivity in multi-device setups.

In summary, the Y2SD2-S40A stepper motor driver stands out for its robust features, versatility, and user-friendly interface, making it an excellent choice for both industrial and research applications. It’s designed to meet the rigorous demands of modern automation systems while ensuring precision and reliability.
