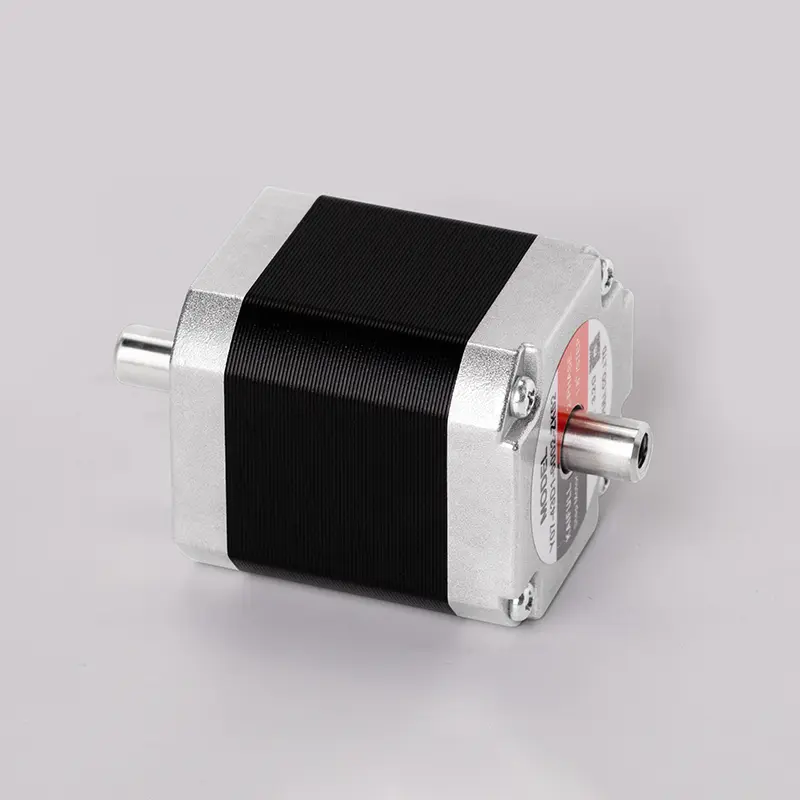

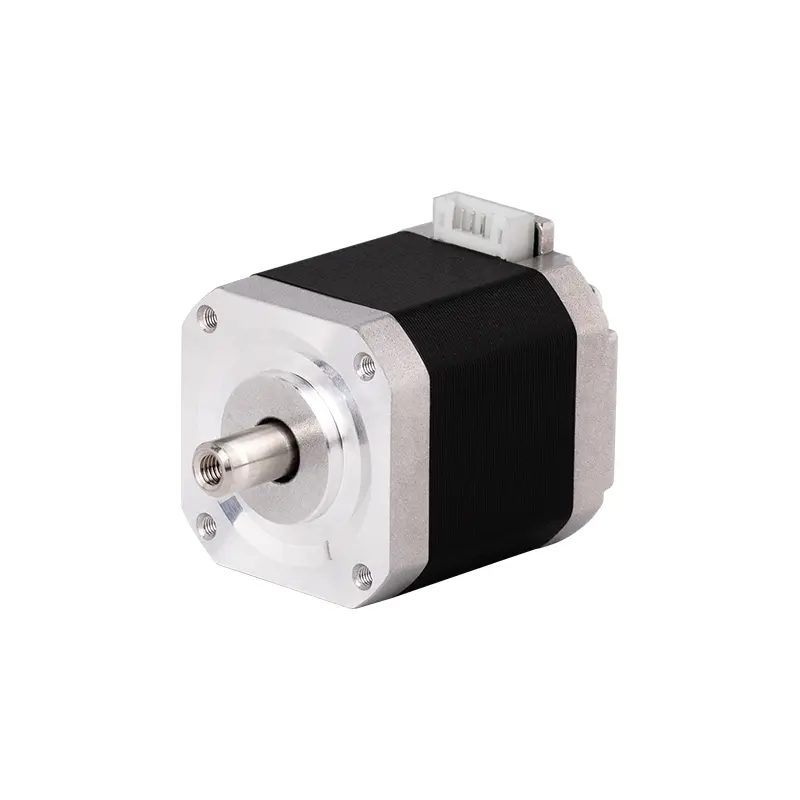

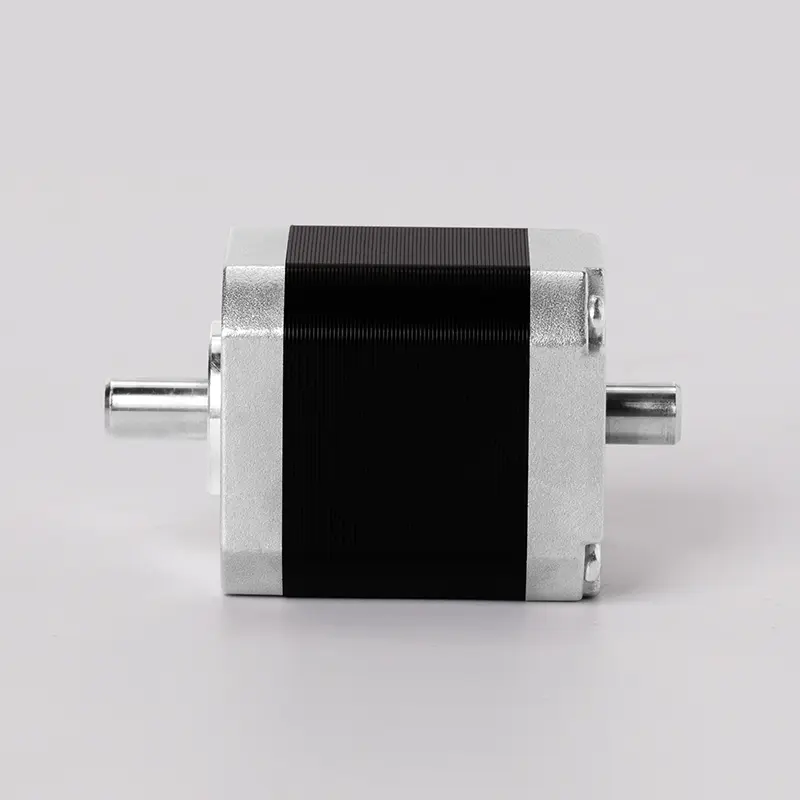

Reliable Y07-43D1-6002-ZK52 Stepper Motor – 530mN.m Holding Torque, 1.8° Step Angle

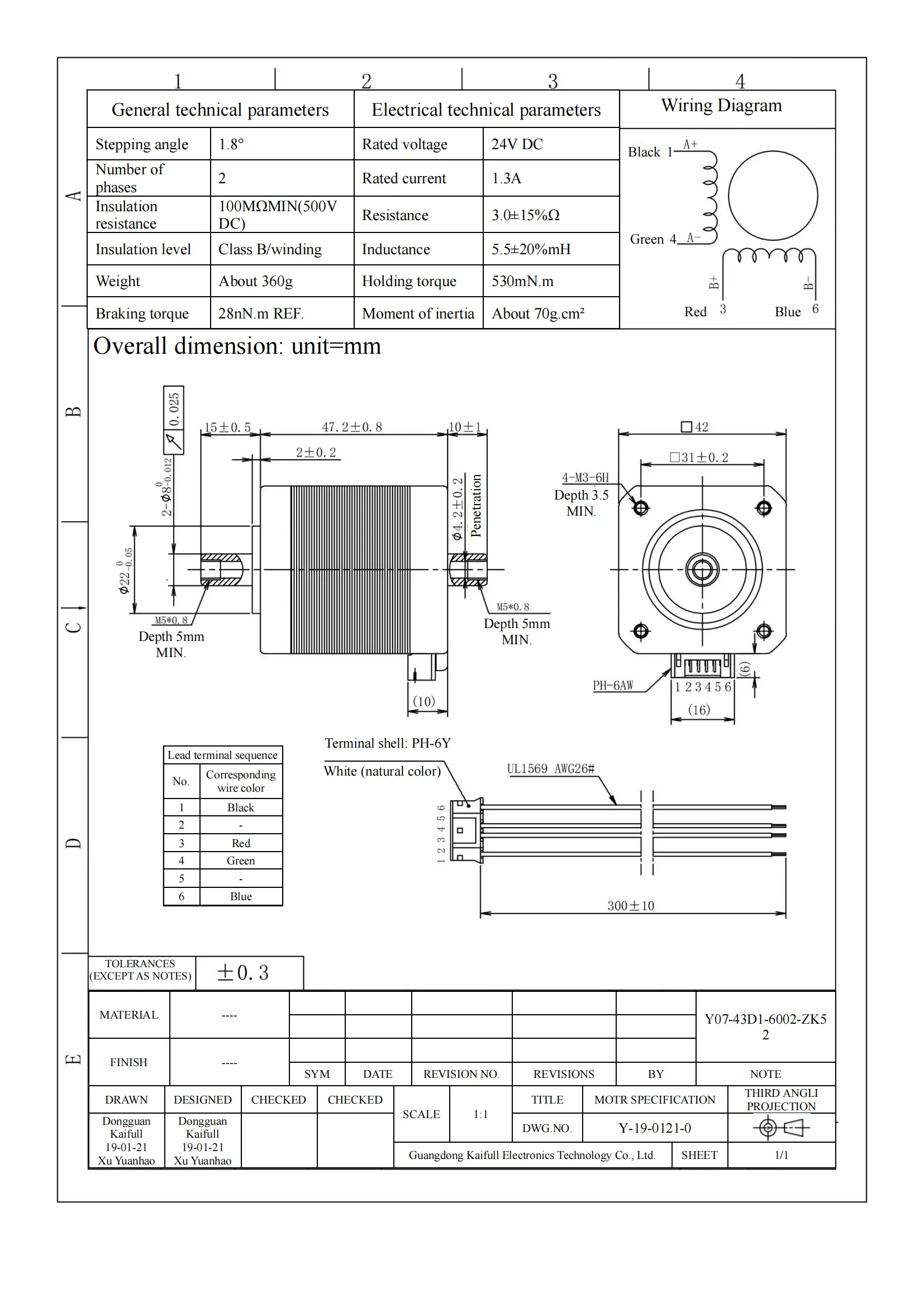

The Y07-43D1-6002-ZK52 stepper motor is engineered for precision and reliability in various industrial applications. With a step angle of 1.8° and a rated voltage of 24V DC, this 2-phase motor operates at a rated current of 1.3A, delivering a robust holding torque of 530mN.m and a braking torque of 28nN.m. Its Class B insulation level ensures a minimum insulation resistance of 100MΩ (at 500V DC), enhancing its durability and performance longevity. With an inductance of 5.5±20%mH and a resistance of 3.0±15%Ω, the motor is designed for smooth and efficient operation. Weighing approximately 360g and with a moment of inertia of about 70g.cm², it provides optimal performance for applications requiring precise motion control. The Y07-43D1-6002-ZK52 is perfect for robotics, automation, and various positioning systems, offering a combination of strength and accuracy.
