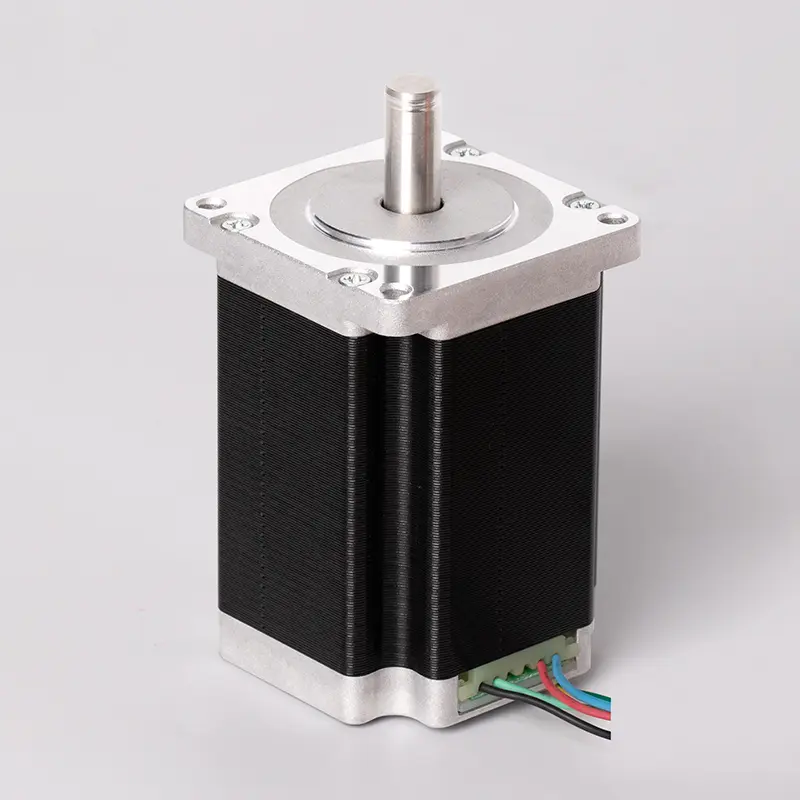

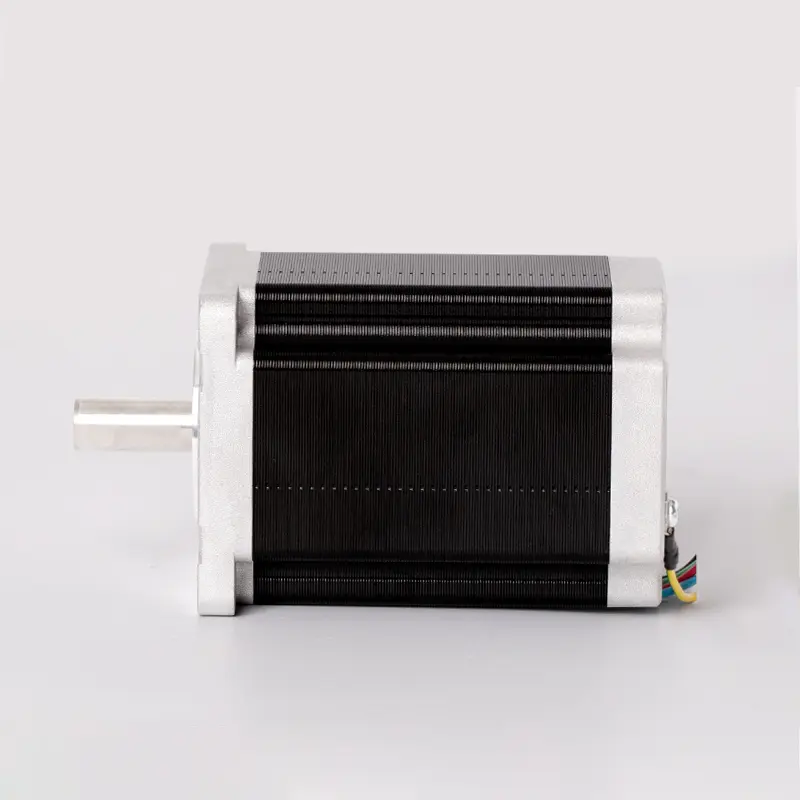

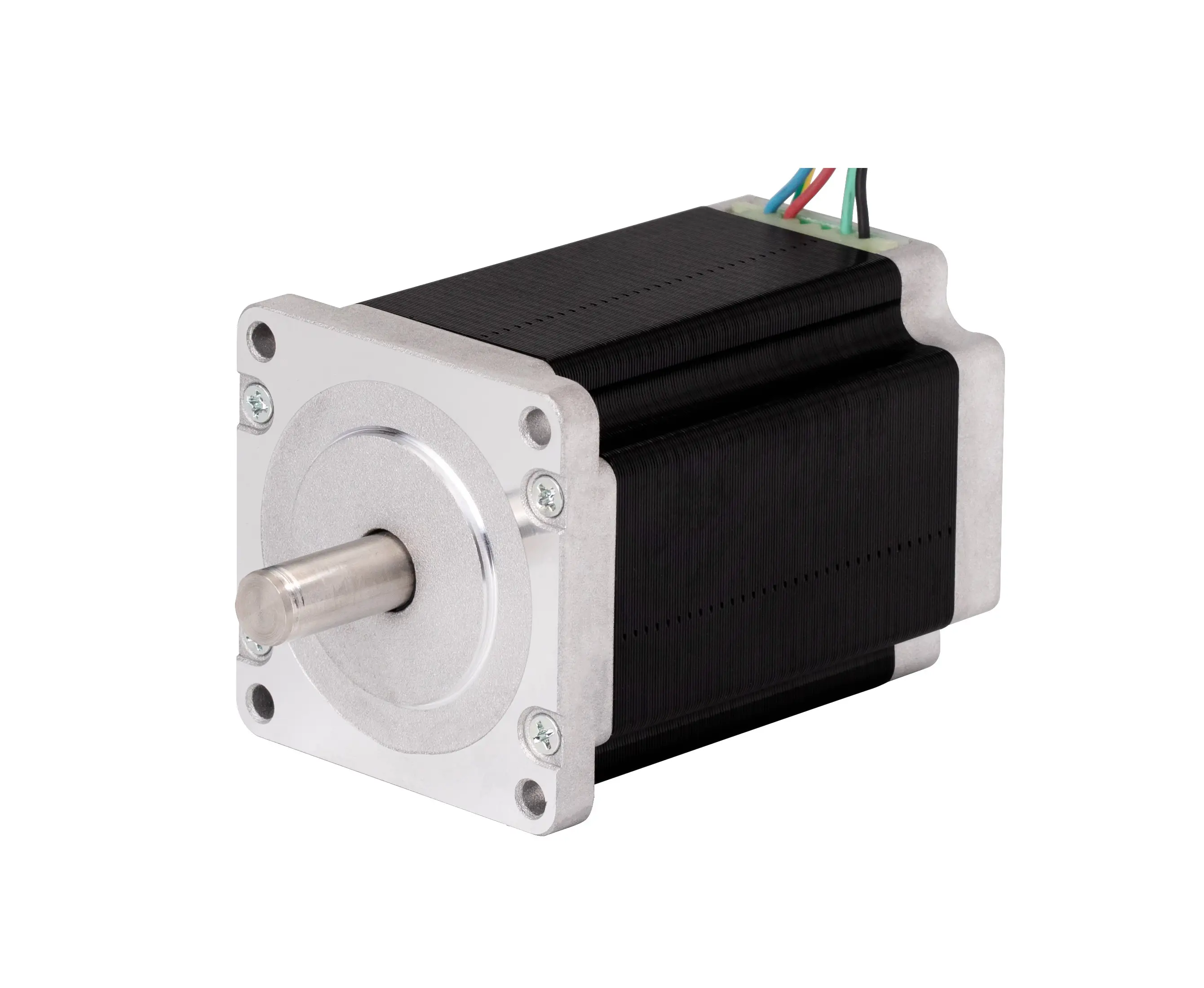

Reliable Stepper Motor Y09-59D3-5001-H for Precision Control

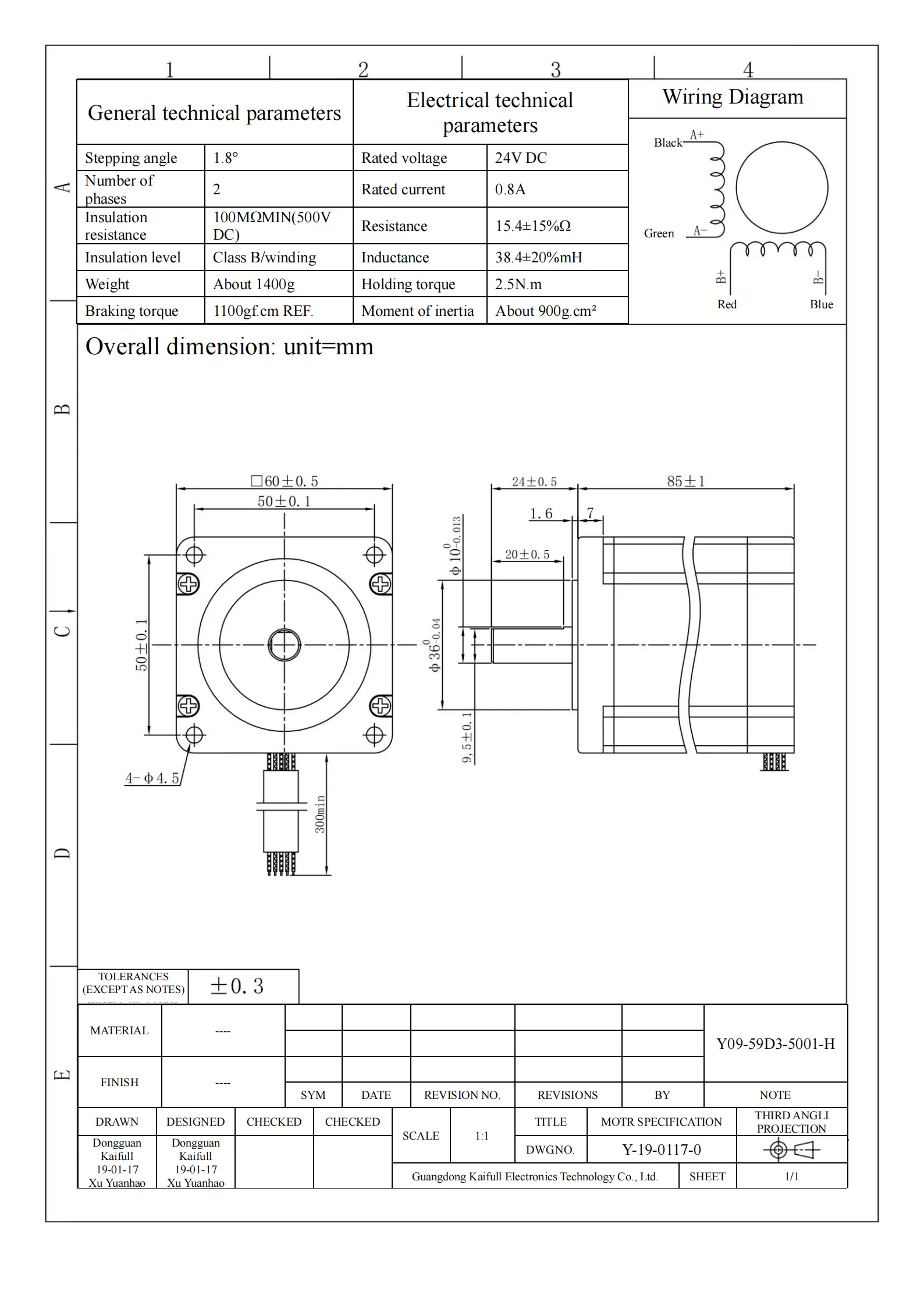

The Y09-59D3-5001-H stepper motor is engineered for high-performance applications, operating at a rated voltage of 24V DC and featuring a stepping angle of 1.8°. With a rated current of 0.8A, this motor is designed to provide reliable and precise motion control, making it suitable for various industrial automation tasks.

This two-phase motor offers a robust holding torque of 2.5N·m, ensuring stable positioning during operation. The braking torque is measured at 1100gf·cm, providing additional safety and control in dynamic applications. With a significant moment of inertia of approximately 900g·cm², the Y09-59D3-5001-H can handle demanding load conditions with ease.

The motor features a high insulation resistance of 100MΩ minimum at 500V DC, ensuring long-lasting performance even in challenging environments. Its Class B insulation level offers added thermal protection, making it suitable for continuous-duty cycles.

With an inductance of 38.4mH ±20%, this motor demonstrates effective energy management and rapid response to control signals. Weighing about 1400g, the Y09-59D3-5001-H is constructed for durability while maintaining a compact footprint, allowing for easy integration into existing systems.

The Y09-59D3-5001-H stepper motor is an excellent choice for applications such as CNC machinery, robotics, and automated equipment where precision and reliability are paramount.
