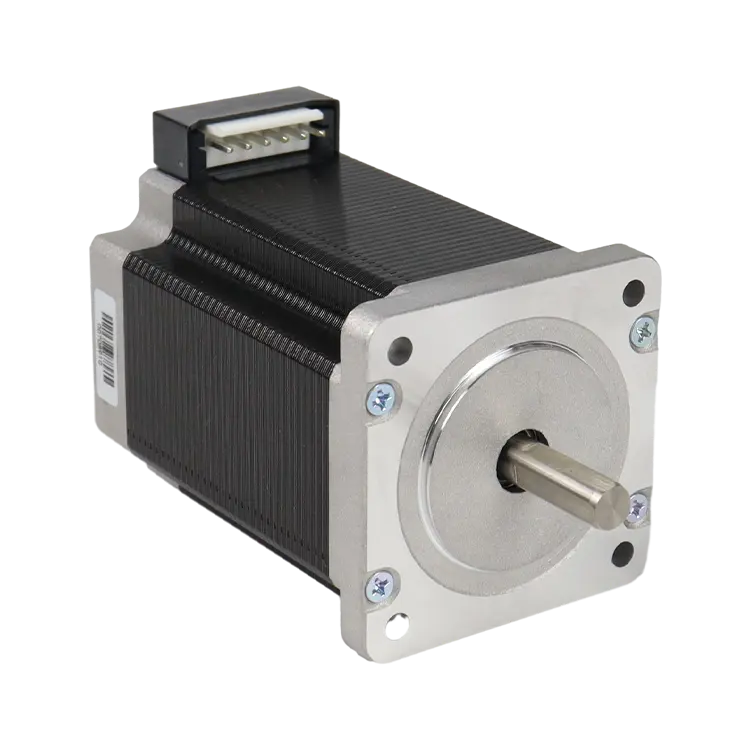

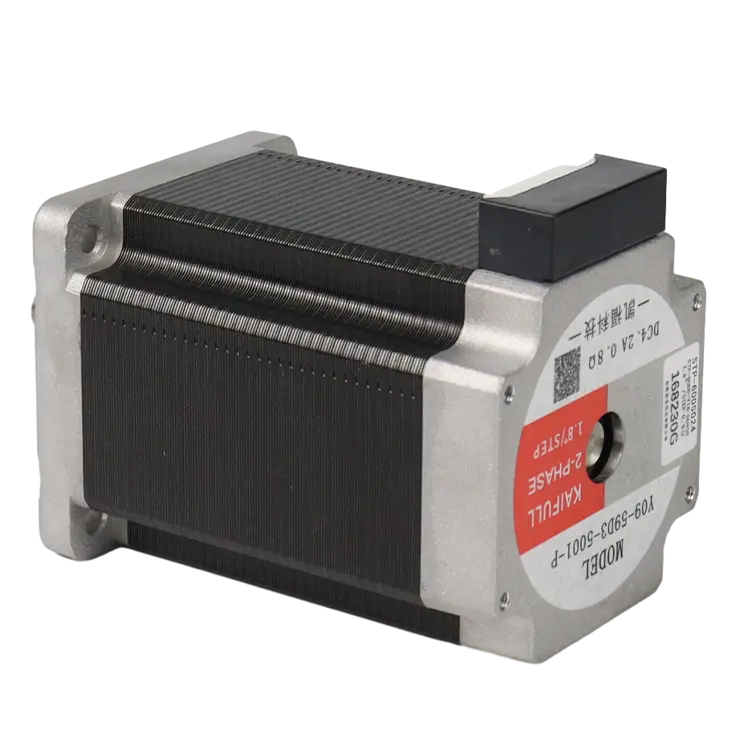

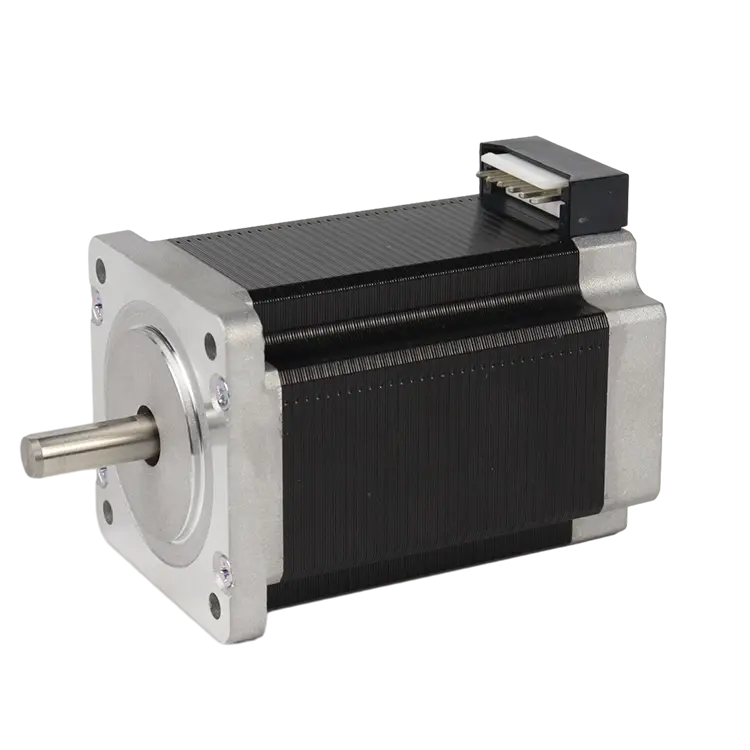

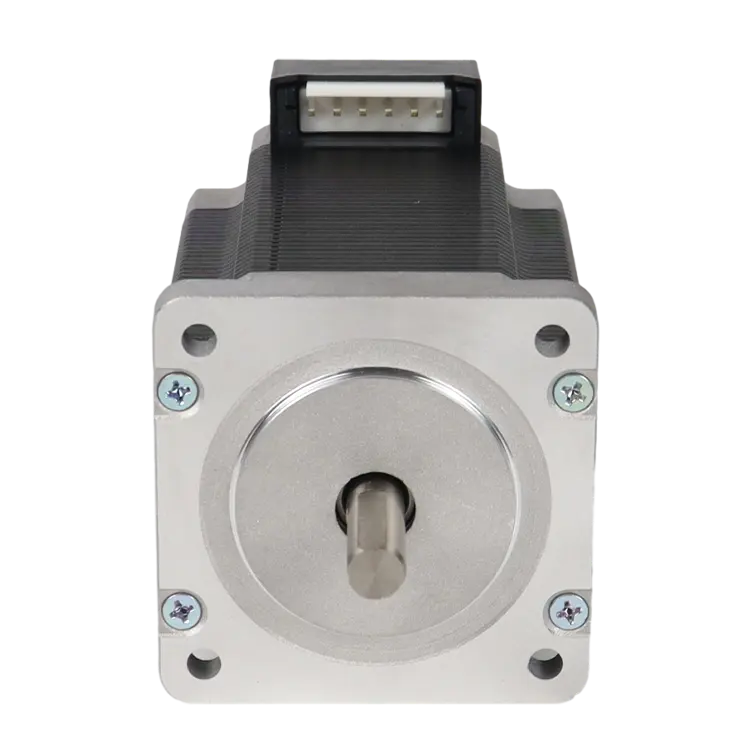

Reliable 24V DC Stepper Motor Y09-59D3-5001-P for Precision Control

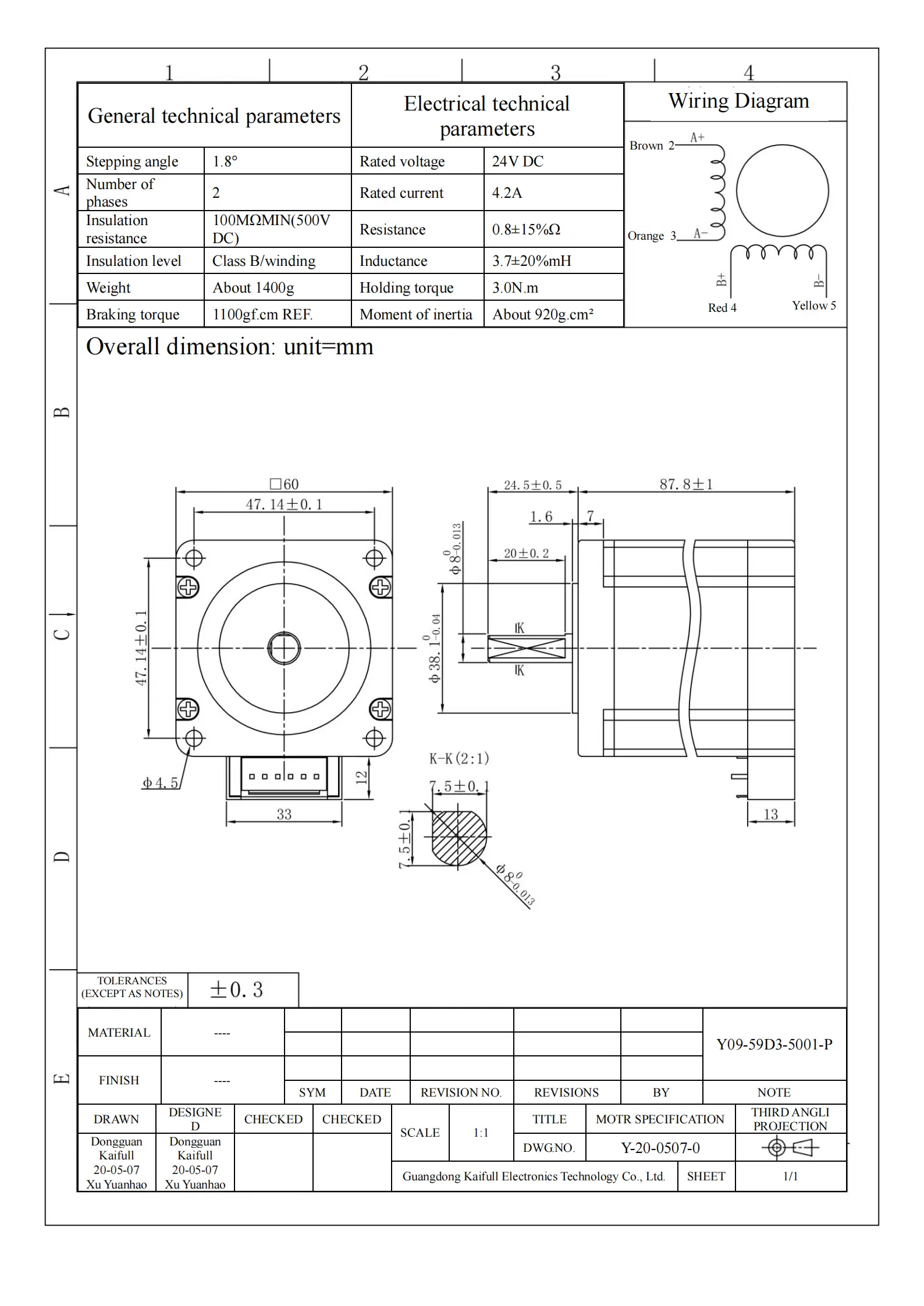

The Y09-59D3-5001-P stepper motor is designed for high-performance applications requiring precise motion control. With a stepping angle of 1.8° and a rated voltage of 24V DC, this motor provides excellent torque and responsiveness, making it ideal for automation, robotics, and CNC machinery.

This model operates with a rated current of 4.2A, offering a robust holding torque of 3.0N.m, which ensures stability during operation. The braking torque of 1100gf.cm enhances its ability to maintain position, even under dynamic load conditions.

Engineered with exceptional insulation resistance of 100MΩ minimum (at 500V DC) and a resistance of 0.8±15Ω, the Y09-59D3-5001-P guarantees reliability and longevity. Its Class B insulation level ensures the motor operates efficiently within thermal limits, while the inductance rating of 3.7±20%mH aids in smooth motor operation.

Weighing approximately 1400g and possessing a moment of inertia of around 920g.cm², this stepper motor is built for durability without compromising on performance. The Y09-59D3-5001-P is an excellent choice for engineers seeking a dependable solution for their precision motion control needs.
