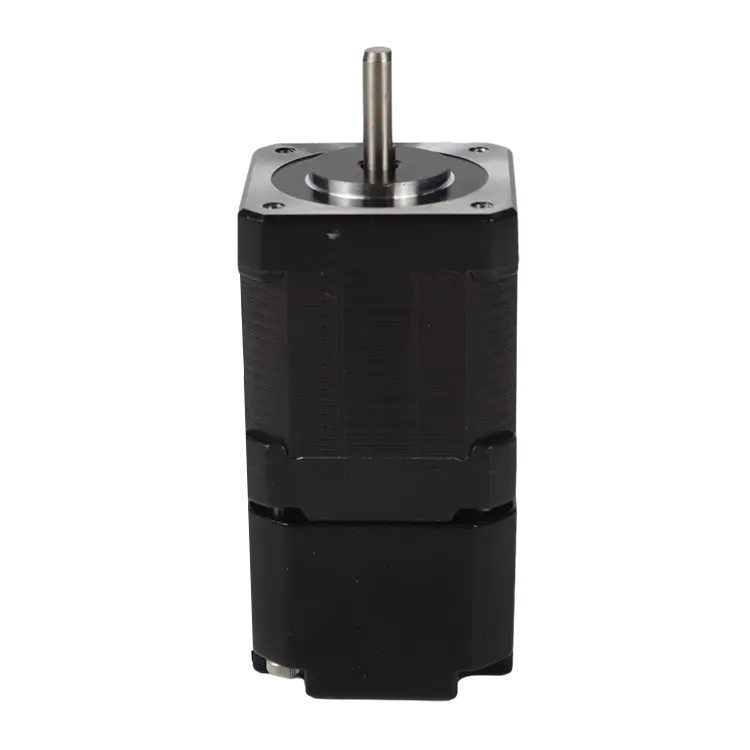

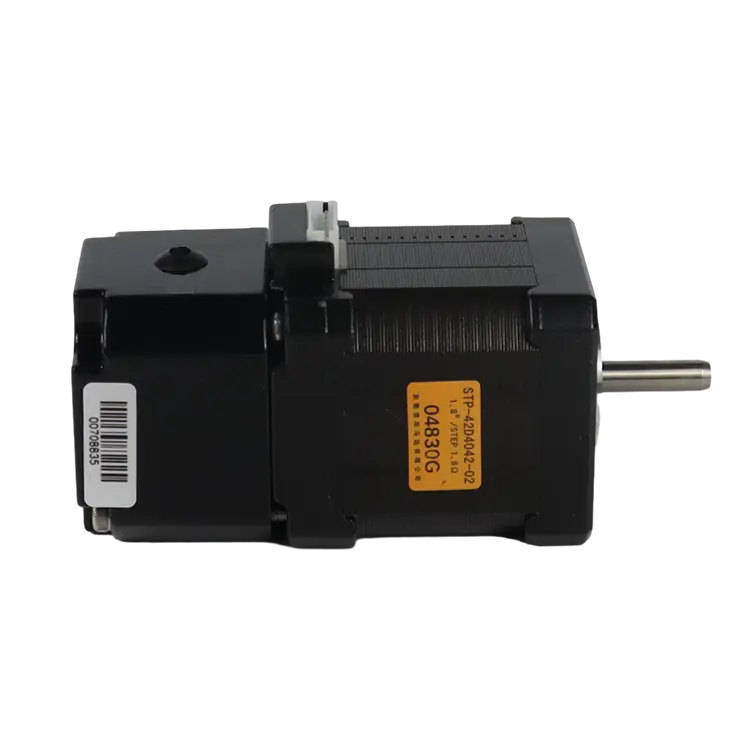

Reliable 24V Bipolar Stepper Motor Y07-43D4-5065M

The Y07-43D4-5065M stepper motor is engineered for high-performance applications requiring precision and reliability. With a step angle of 1.8° and a rated voltage of 24V DC, this bipolar stepper motor excels in various industrial and automation tasks. It operates at a rated current of 2.0A, delivering consistent torque and responsiveness.

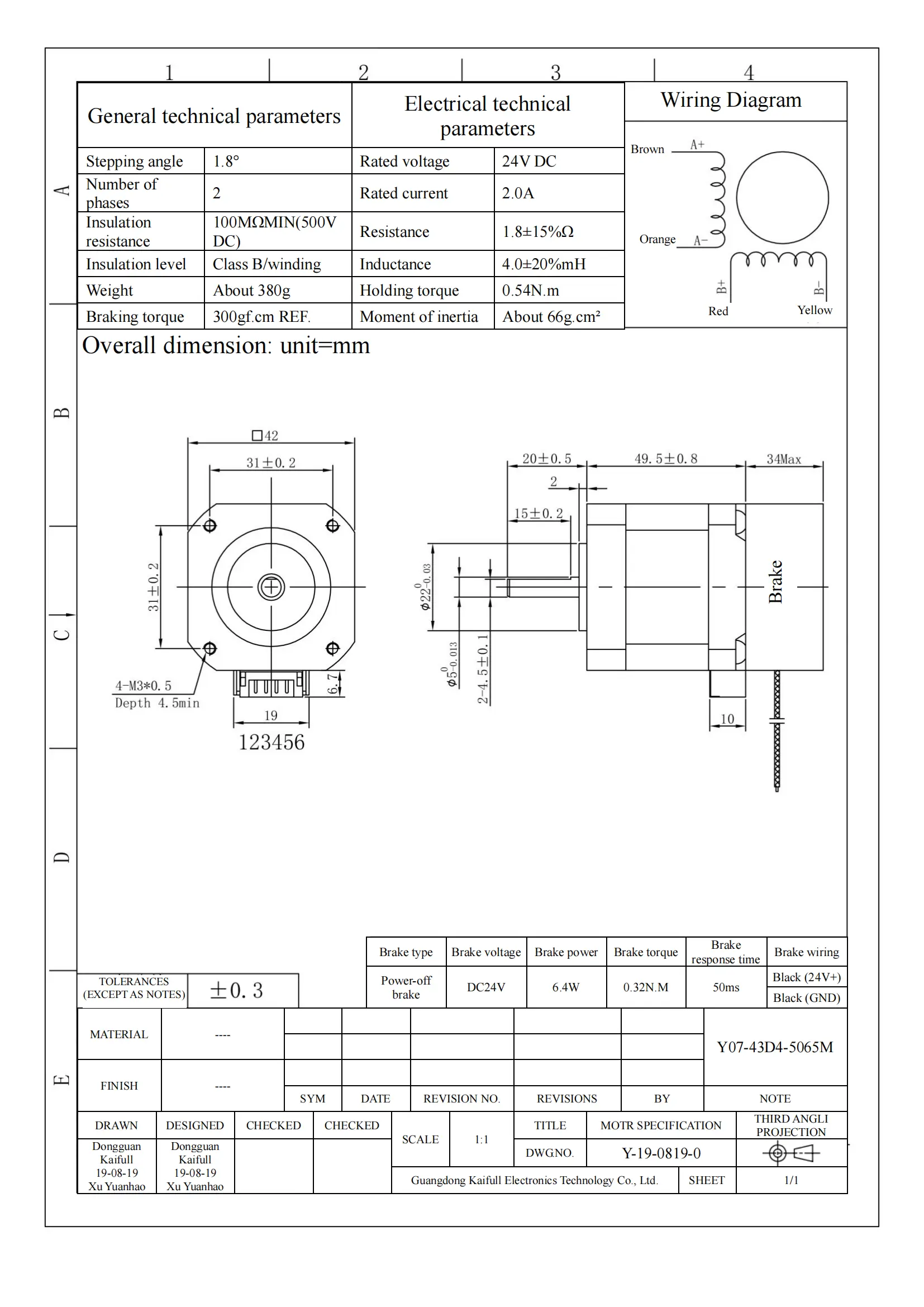

Designed with a winding resistance of 1.8Ω ±15% and an inductance of 4.0mH ±20%, the motor ensures efficient operation while minimizing energy loss. The Class B insulation level guarantees durability and reliability under demanding conditions. With a holding torque of 0.54N·m and a braking torque of 300gf·cm, the motor maintains its position effectively, making it suitable for applications such as CNC machinery, robotics, and automated systems.

This stepper motor also features an insulation resistance of 100MΩ minimum (500V DC), providing added safety against electrical faults. Weighing approximately 380g and with a moment of inertia of about 66g.cm², the Y07-43D4-5065M is designed for compact installations without compromising performance.

Ideal for applications demanding precise control and positioning, this stepper motor is a top choice for engineers and designers looking to enhance their systems with a dependable and efficient solution.
