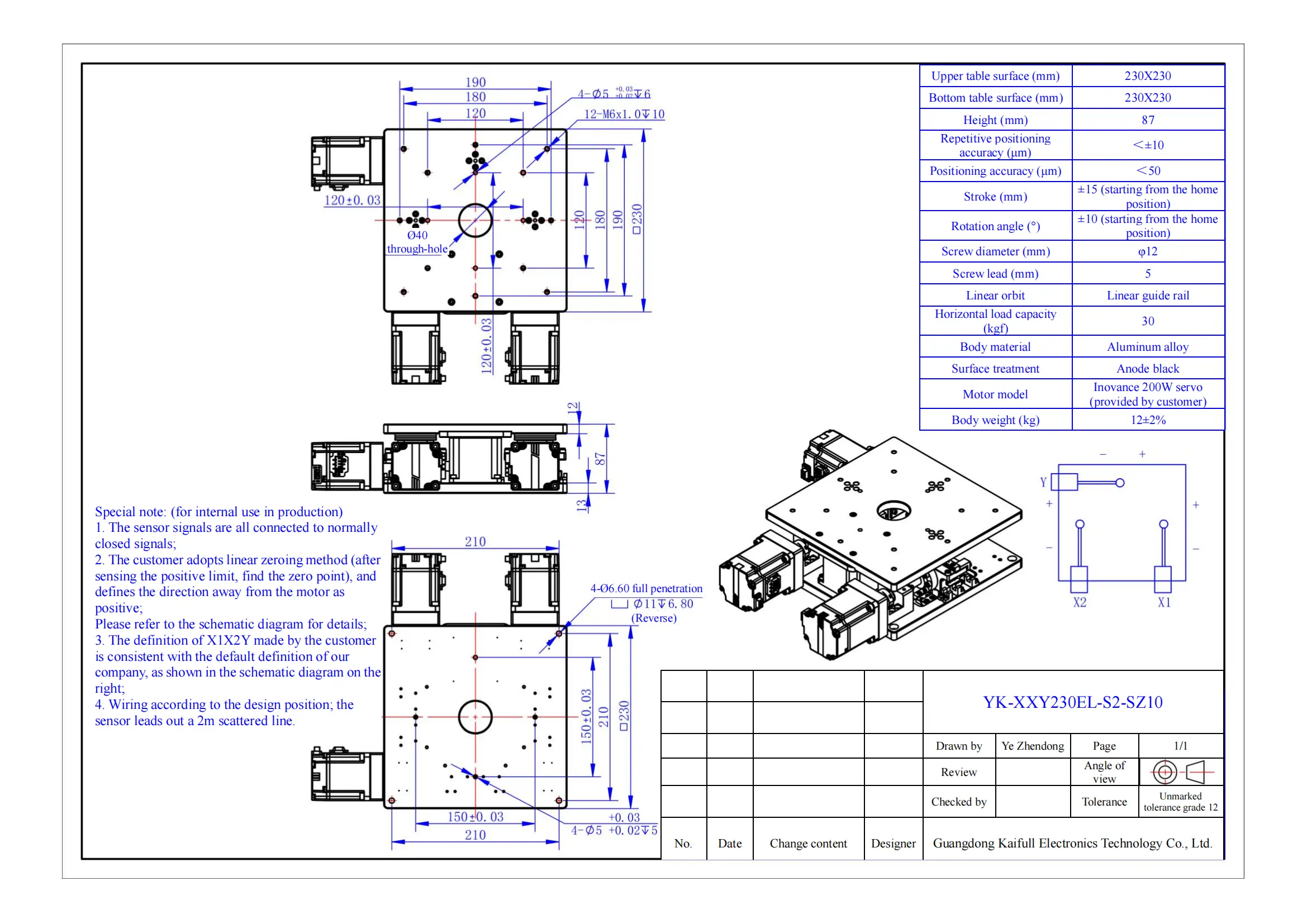

Precision XY Positioning Platform YK-XXY230EL-S2-SZ10

The YK-XXY230EL-S2-SZ10 is an advanced XY positioning platform engineered for high-precision applications. With a generous upper and bottom table surface of 230mm x 230mm, this platform is designed to accommodate substantial loads, offering a horizontal load capacity of up to 30kg. Its compact height of 87mm allows for versatile integration into various setups.

This platform achieves a remarkable repetitive positioning accuracy of less than ±10μm and a positioning accuracy of less than 50μm, ensuring precise and reliable performance. The stroke of ±15mm, starting from the home position, combined with a rotation angle of ±10°, provides the flexibility needed for a wide range of operational tasks.

The platform utilizes a 12mm diameter screw with a lead of 5mm, coupled with linear guide rails, for smooth and efficient linear motion. Constructed from high-strength aluminum alloy, the YK-XXY230EL-S2-SZ10 features an anodized black surface treatment, enhancing its durability and aesthetic appeal.

Powered by an Inovance 200W servo motor (provided by the customer), this platform is capable of delivering exceptional performance in applications such as automation, assembly, and precise scientific measurements. Weighing in at approximately 12kg, with a tolerance of ±2%, this robust platform is a reliable choice for professionals requiring accuracy and stability in their operations.
