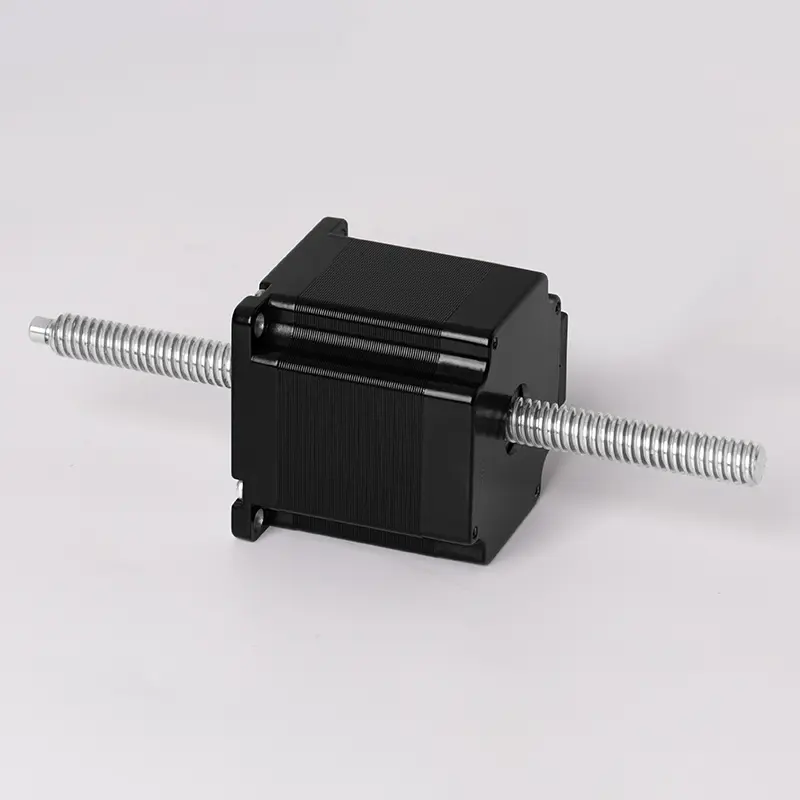

Precision-Engineered Y07-59D1-4404-04GC-170 Screw Stepper Motor for High-Torque Applications

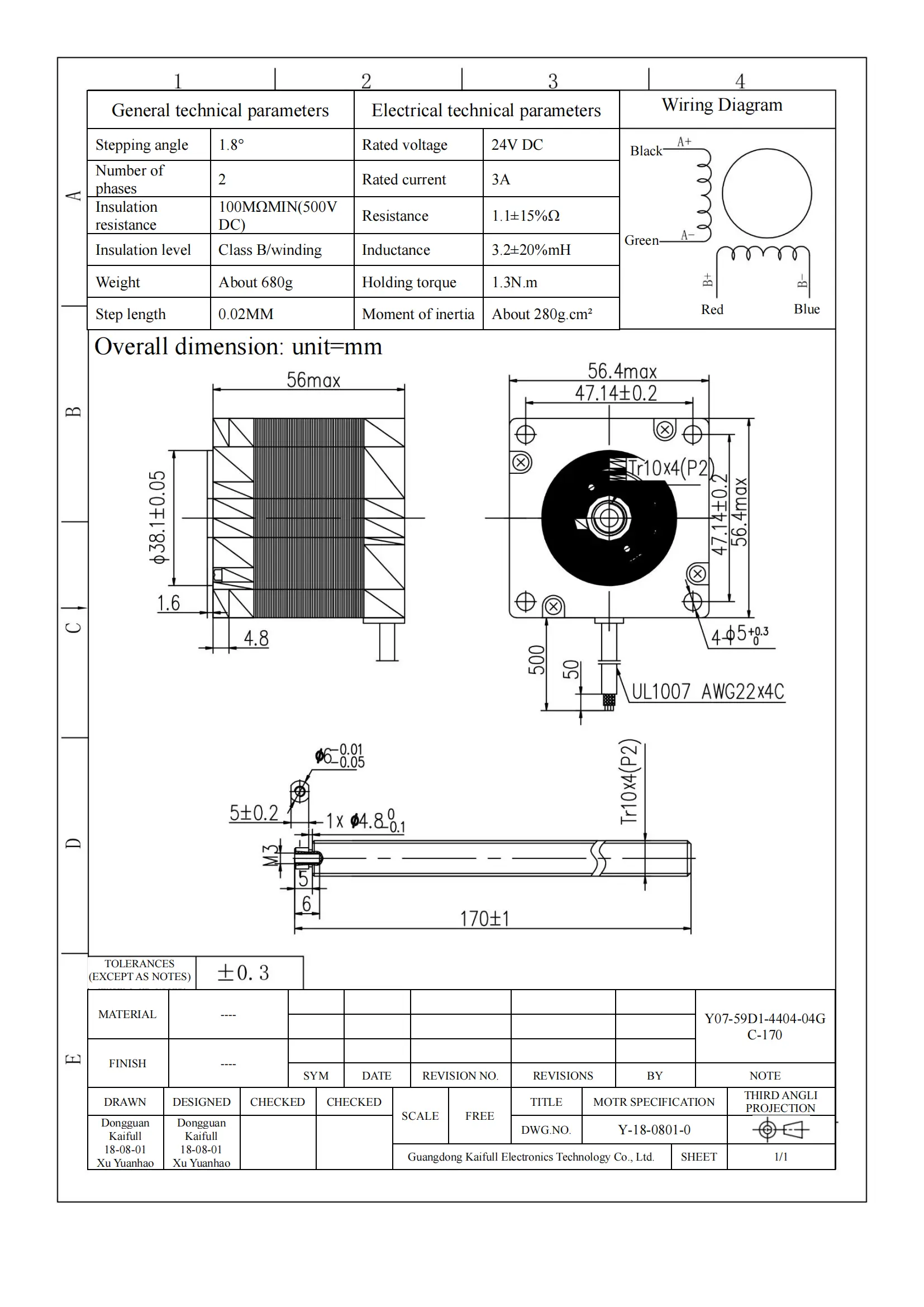

The Y07-59D1-4404-04GC-170 screw stepper motor is designed to meet the demanding requirements of precision applications in robotics, automation, and CNC machinery. With a stepping angle of 1.8°, this motor delivers exceptional accuracy and repeatability, making it an ideal choice for intricate tasks that require meticulous control.

This motor operates on a rated voltage of 24V DC and features a two-phase configuration, ensuring smooth and efficient operation. With a rated current of 3A, it is capable of generating significant power while maintaining stability under load. The motor’s insulation resistance is rated at a minimum of 100 MΩ at 500V DC, enhancing its durability and reliability in a variety of industrial settings.

The Y07-59D1-4404-04GC-170 has a resistance of 1.1 ±15% Ω and an inductance of 3.2 ±20% mH, facilitating consistent performance across different operating conditions. The Class B insulation level allows the motor to endure higher temperatures, making it suitable for high-performance applications. Weighing approximately 680g, this robust motor strikes an excellent balance between durability and manageability.

With a holding torque of 1.3 N·m, this stepper motor excels in maintaining position during operation, which is crucial for applications requiring precise movement. The step length of 0.02 mm enables fine adjustments, while the moment of inertia is approximately 280 g·cm², contributing to its responsive performance during dynamic operation.

In summary, the Y07-59D1-4404-04GC-170 screw stepper motor is a powerful and reliable component, perfect for applications that demand high torque and precision control, enhancing the efficiency and effectiveness of your systems.
