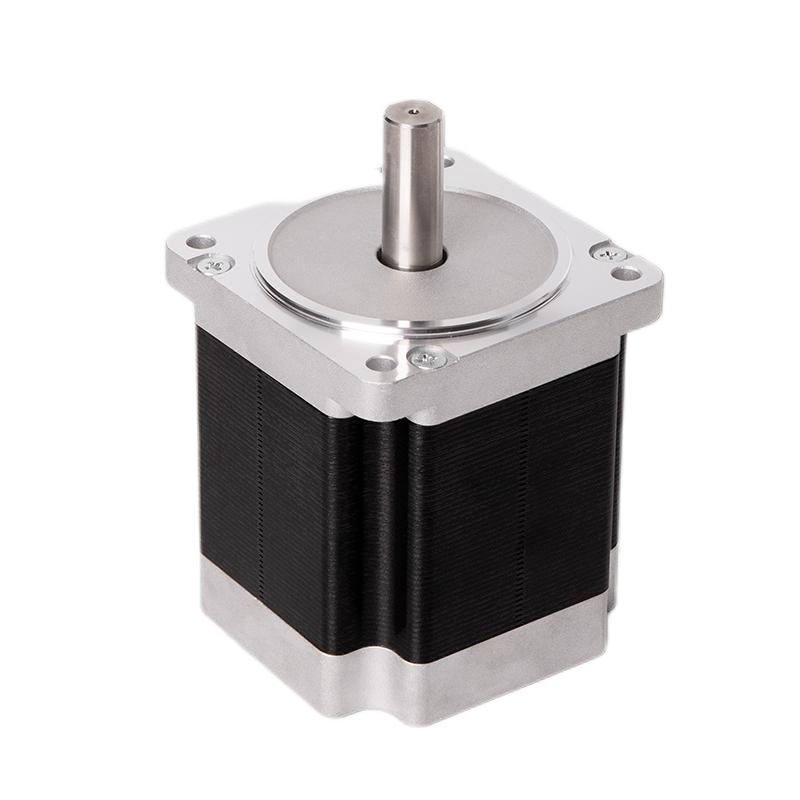

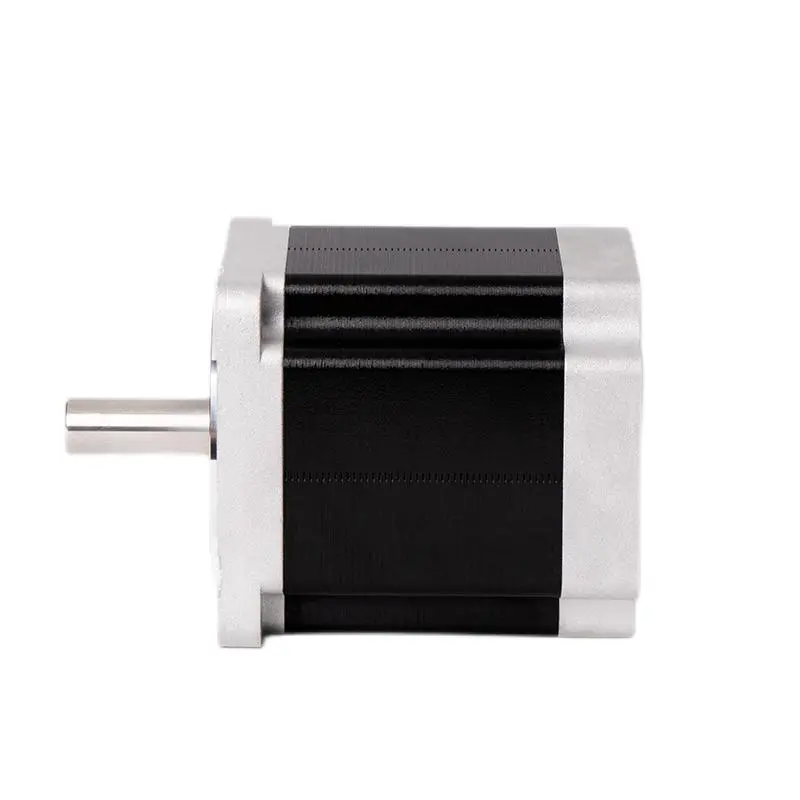

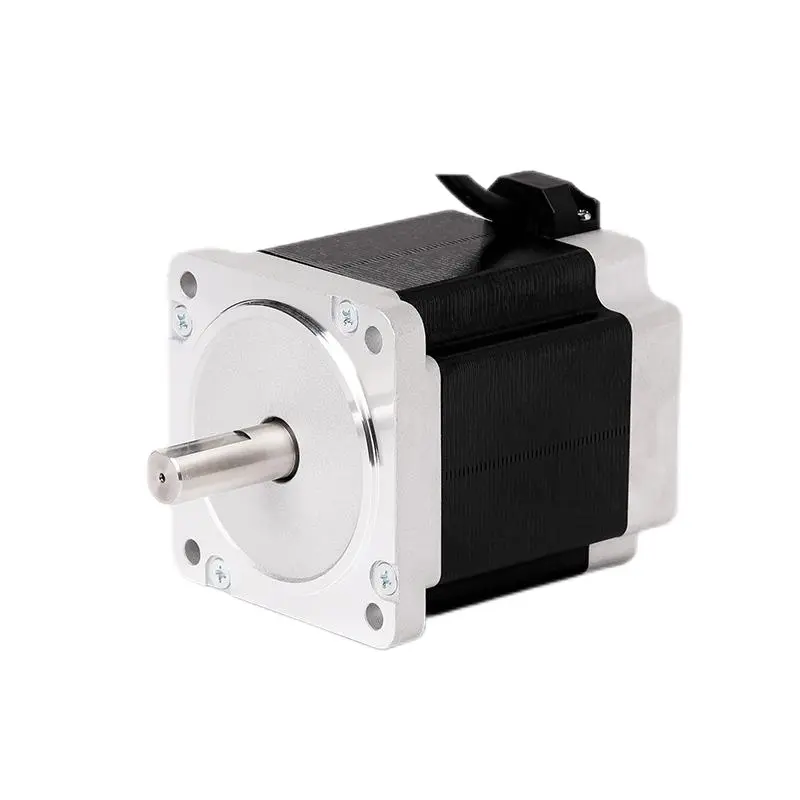

KST-86D64-0004 1.8° Two-Phase Stepper Motor with 6.3N·m Holding Torque, 3.6A Rated Current, 24V DC Drive Voltage

The KST-86D64-0004 is a reliable and high-performance two-phase stepper motor, designed to deliver excellent precision and torque for a variety of industrial applications. With a step angle of 1.8° and a holding torque of 6.3N·m, this motor is ideal for systems requiring accurate positioning and control, including CNC machines, robotics, and automation.

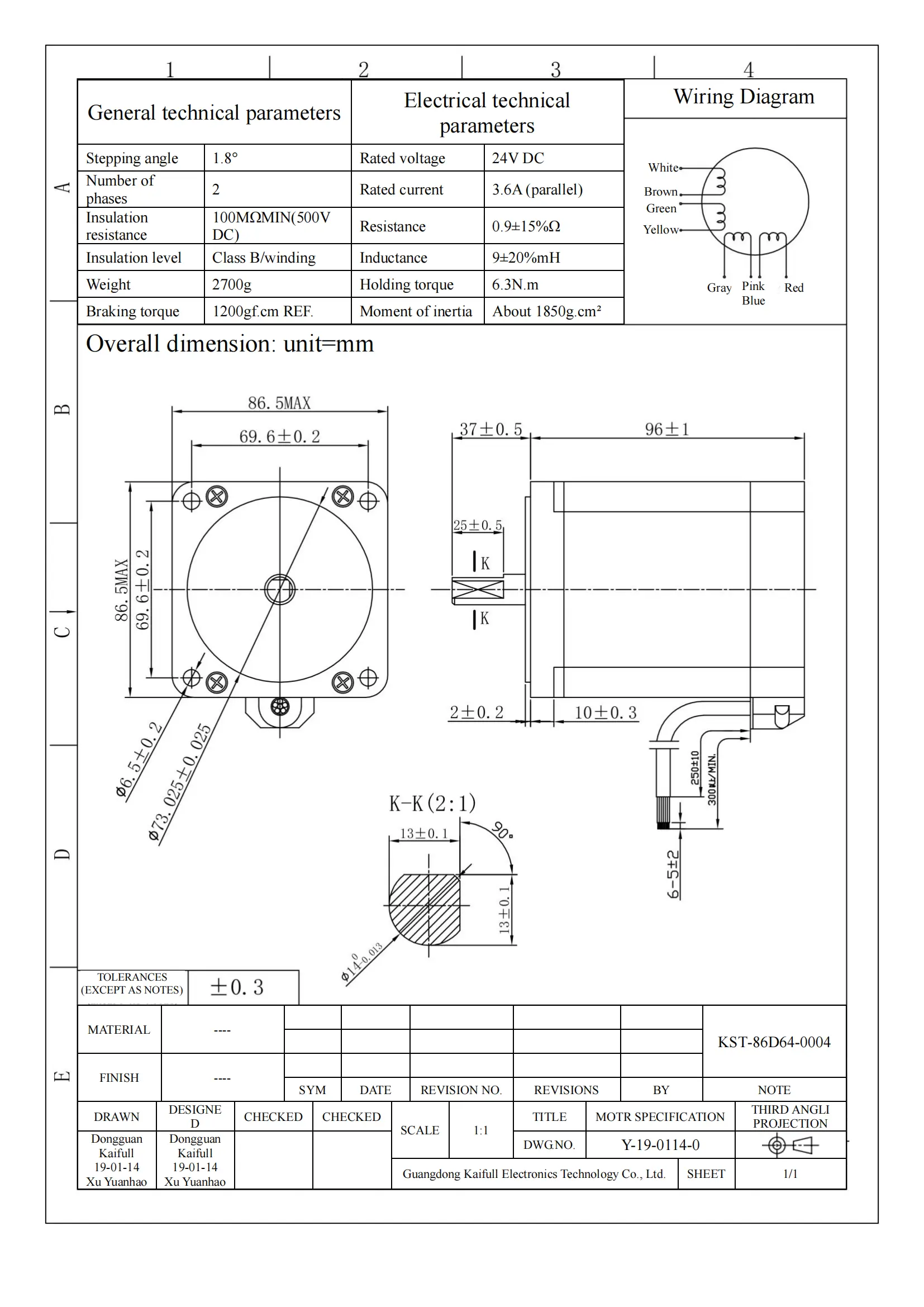

Operating at a rated current of 3.6A (parallel) and a 24V DC drive voltage, the KST-86D64-0004 offers efficient performance with minimal power loss. The phase resistance is 0.9Ω±15%, and the inductance is 9mH±20%, ensuring smooth and reliable operation even in demanding applications.

With Class B insulation and an insulation resistance of 100MΩ minimum at 500V DC, this motor is built for durability and long-term reliability. The braking torque is 1200gf·cm, and the moment of inertia is approximately 1850g·cm², providing smooth and precise control during operation.

Weighing 2700g, the KST-86D64-0004 is a compact, high-torque solution that is well-suited for a wide range of high-performance applications in industrial automation and other precision motion control systems.
