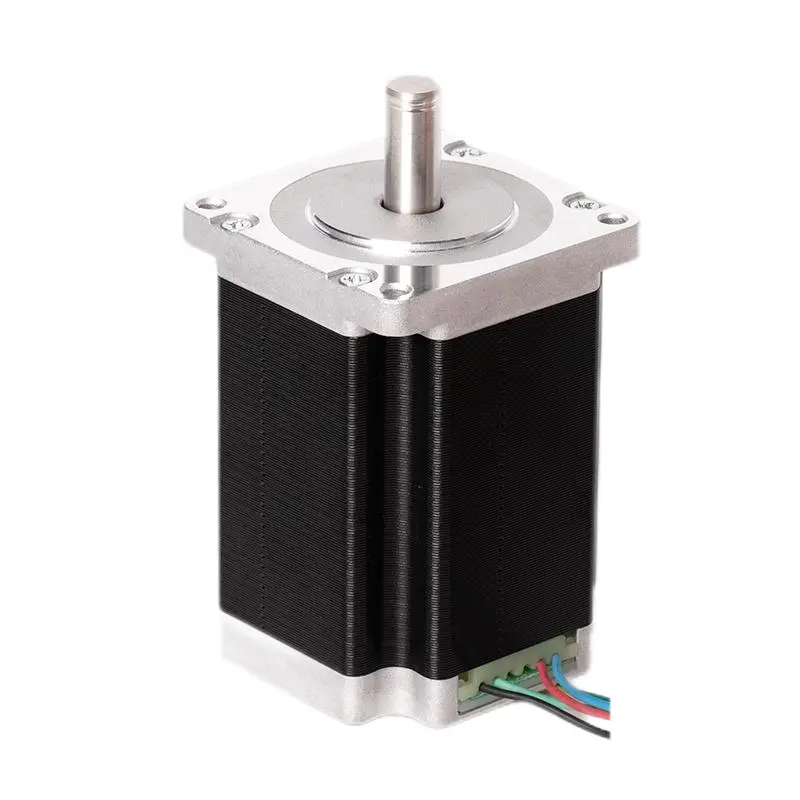

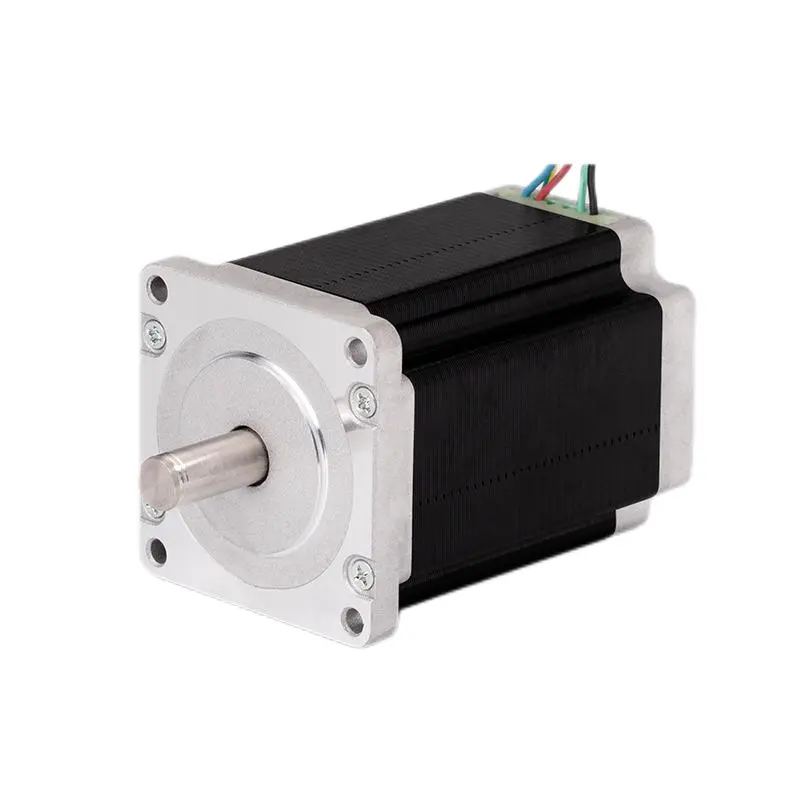

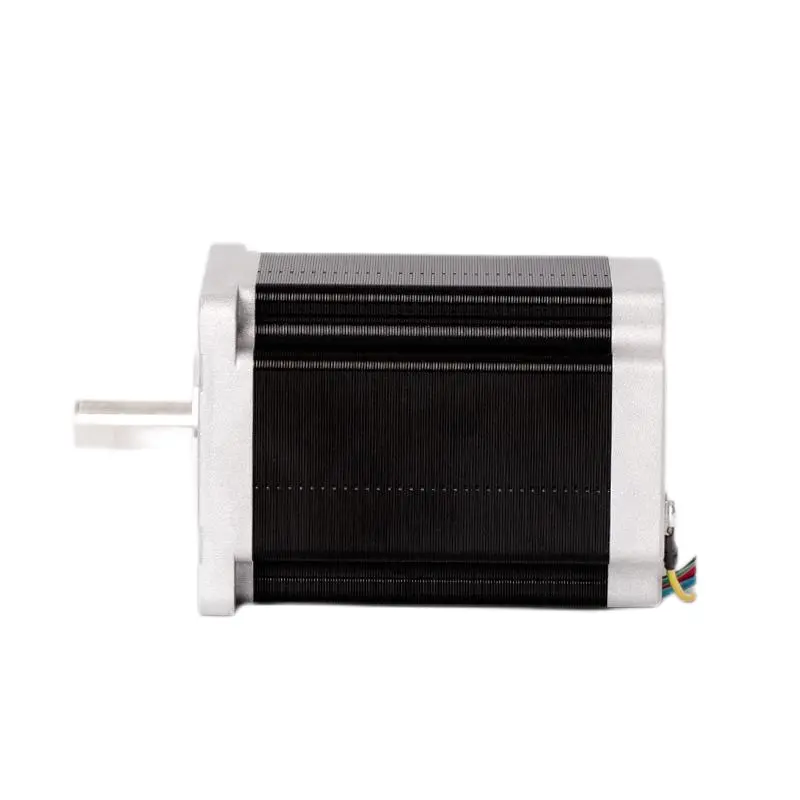

KST-60D65-0003 1.8° Two-Phase Stepper Motor with 2.5N·m Holding Torque, 0.8A Rated Current, 24V DC Drive Voltage

The KST-60D65-0003 is a highly efficient two-phase stepper motor designed for a wide range of industrial applications requiring moderate torque and high accuracy. With a step angle of 1.8° and a holding torque of 2.5N·m, this motor provides excellent precision and reliable performance, making it ideal for automation, robotics, and CNC machinery.

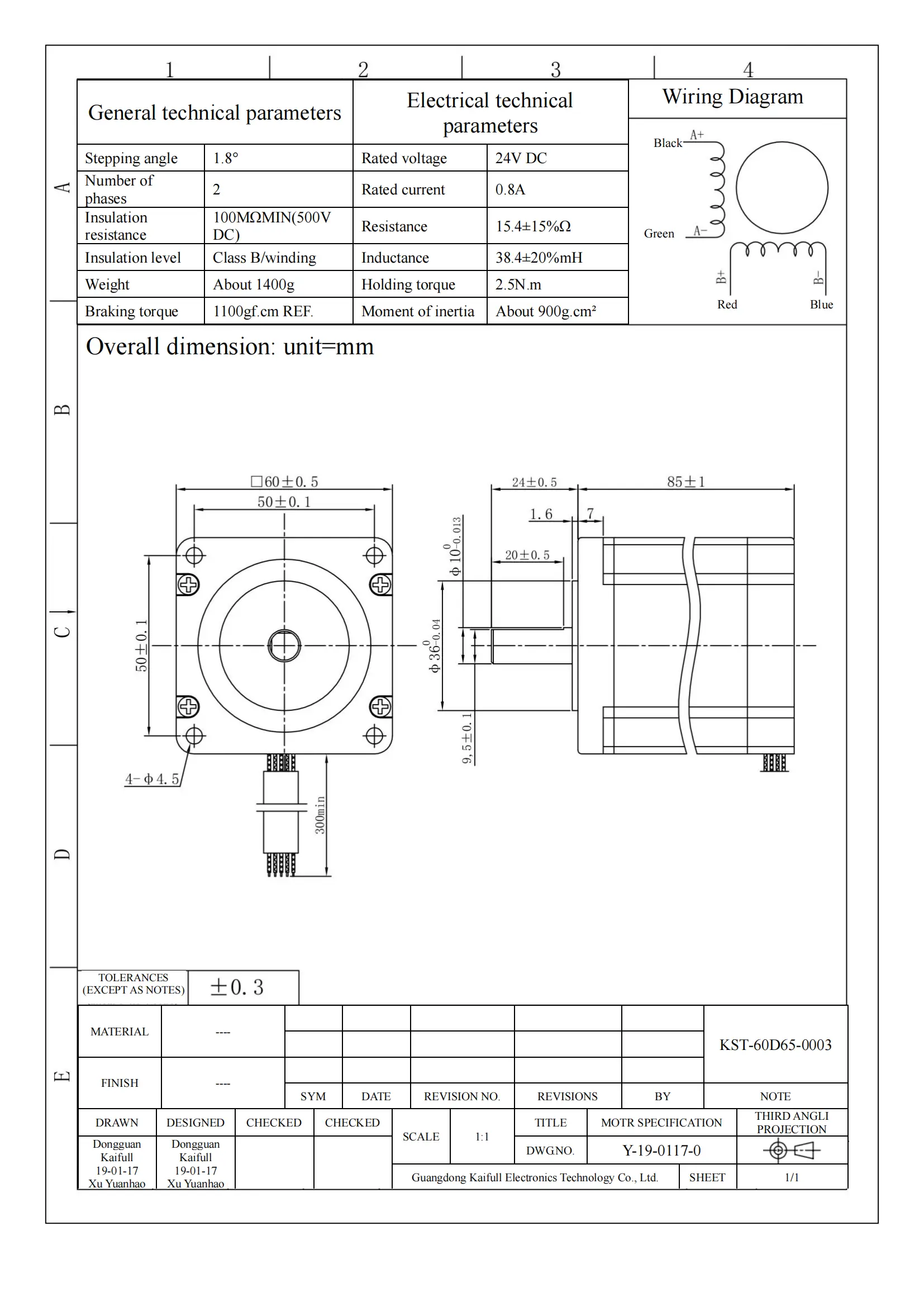

Operating at a rated current of 0.8A and powered by a 24V DC drive voltage, the KST-60D65-0003 delivers efficient and smooth operation, even under demanding conditions. It features a phase resistance of 15.4Ω±15% and an inductance of 38.4mH±20%, ensuring stable performance and energy-efficient operation.

This motor is equipped with Class B insulation and offers an insulation resistance of 100MΩ minimum at 500V DC, ensuring long-term durability and reliability. The braking torque is 1100gf·cm, and the moment of inertia is approximately 900g·cm², providing smooth and controlled braking for precise movements.

Weighing about 1400g, the KST-60D65-0003 is a reliable, high-performance motor that is suitable for various applications requiring moderate torque and high precision in compact, lightweight configurations.
