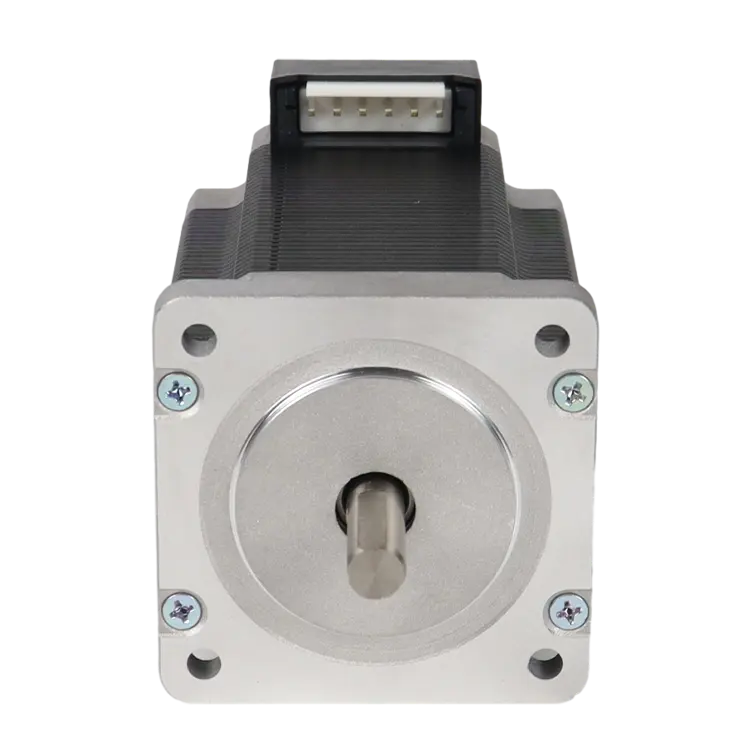

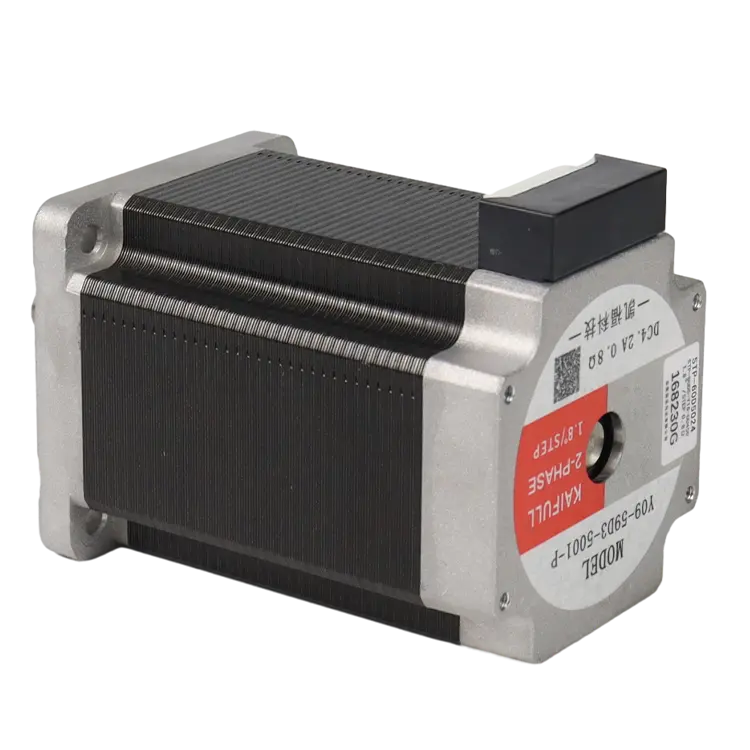

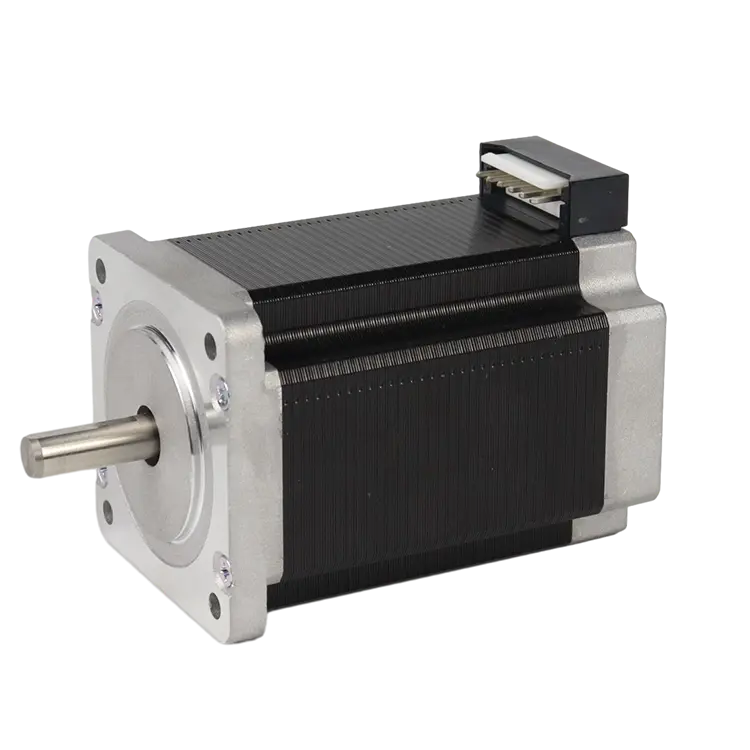

KST-60D65-0001 1.8° Stepper Motor, 4.2A Rated Current, 3.0N·m Holding Torque, 60mm Frame Size

The KST-60D65-0001 stepper motor is a robust and reliable solution for high-torque, precision motion control applications. With a 1.8° step angle and 3.0N·m holding torque, it delivers exceptional performance, making it ideal for use in CNC machines, robotics, automation, and industrial equipment.

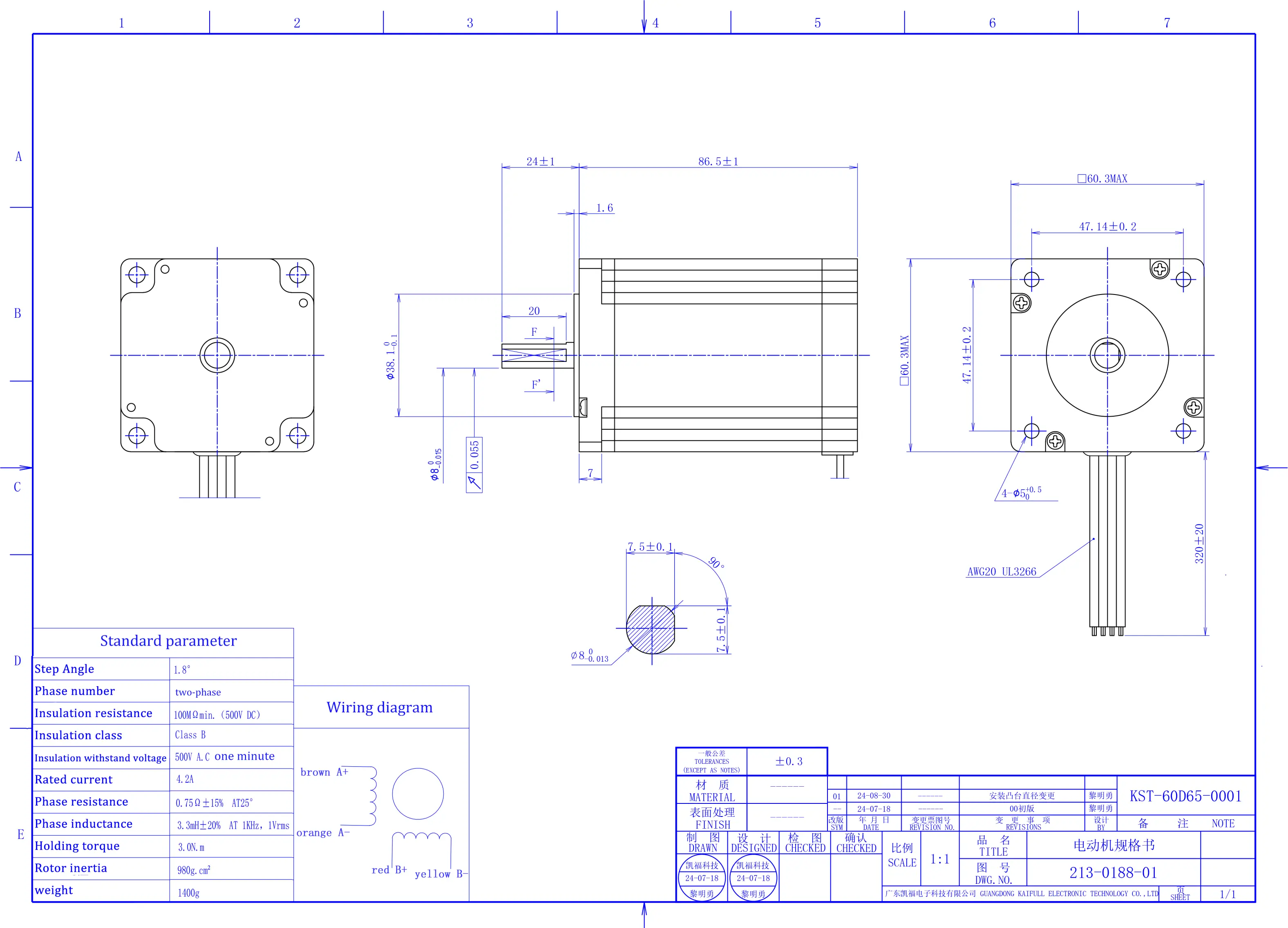

The motor operates with a 4.2A rated current, ensuring high efficiency and precision. Its phase resistance of 0.75Ω ± 15% at 25°C and phase inductance of 3.3mH ± 20% (measured at 1KHz, 1Vrms) provide smooth operation with minimal energy loss. With a rotor inertia of 980g·cm², the motor is capable of handling heavier loads while maintaining accuracy.

Constructed with Class B insulation, the motor offers an insulation resistance of 100MΩ minimum (at 500V DC) and is capable of withstanding 500V AC for 1 minute, ensuring long-lasting durability and safety in demanding environments. Weighing 1400g, the motor fits into a 60mm frame size, making it versatile for a variety of motion control systems requiring high performance and precision.
