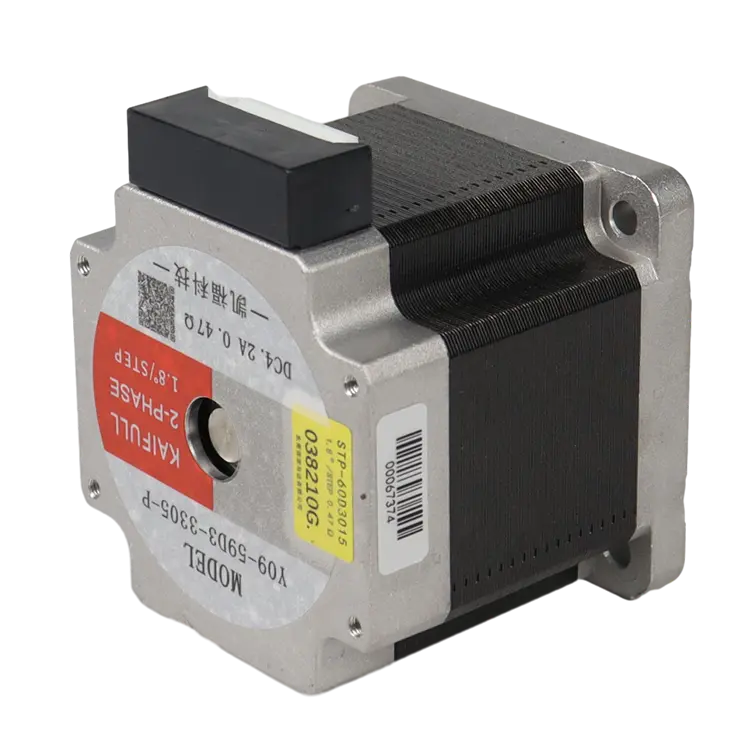

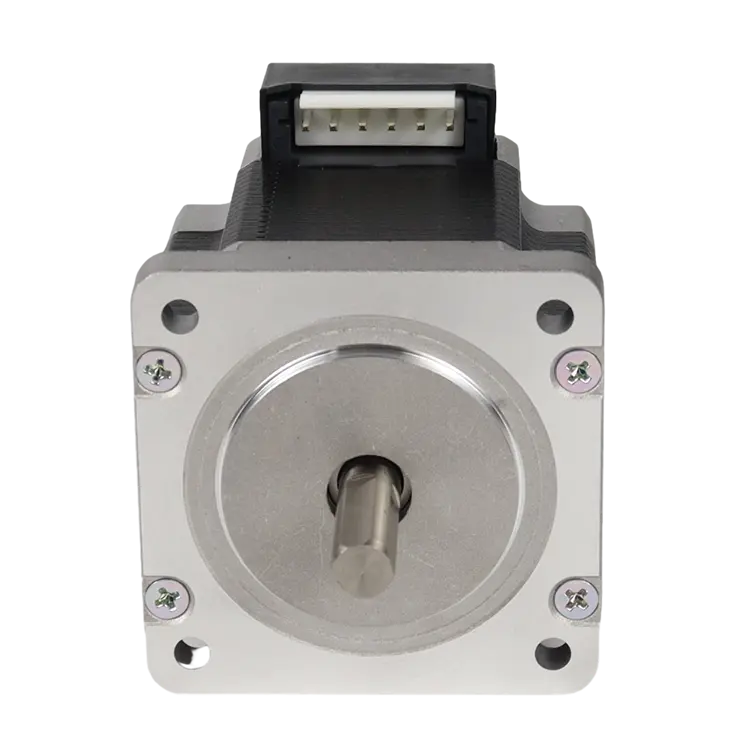

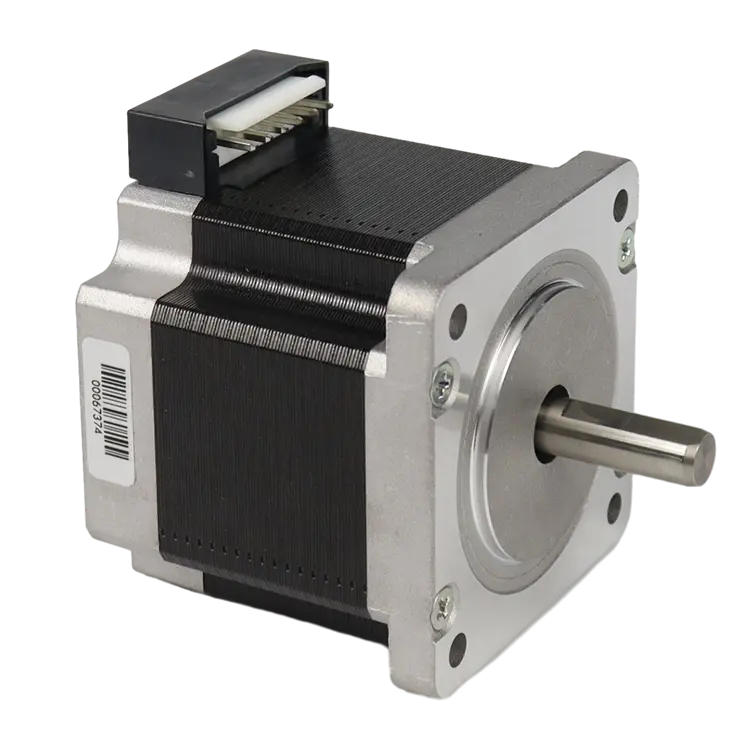

KST-60D34-0002 1.8° Stepper Motor, 4.2A Rated Current, 1.4N·m Holding Torque, 60mm Frame Size

The KST-60D34-0002 stepper motor is a powerful and reliable motion control solution, designed for demanding applications requiring high torque and precision. With a 1.8° step angle and 1.4N·m holding torque, this motor offers superior performance for industrial automation, CNC machinery, robotics, and other motion control systems.

Operating at a rated current of 4.2A, the KST-60D34-0002 ensures smooth operation and high efficiency. Its phase resistance of 0.5Ω ± 15% at 25°C and phase inductance of 1.8mH ± 20% at 1KHz, 1Vrms deliver optimized power delivery and performance. The rotor inertia of 440g·cm² makes this motor highly effective for handling moderate loads while maintaining precise control.

Built with Class B insulation, it offers an insulation resistance of 100MΩ minimum (at 500V DC) and withstands 500V AC for 1 minute, ensuring durability and reliability even in demanding operating environments. Weighing 800g, this motor is housed in a 60mm frame size, making it ideal for applications where compactness, reliability, and torque are essential.
