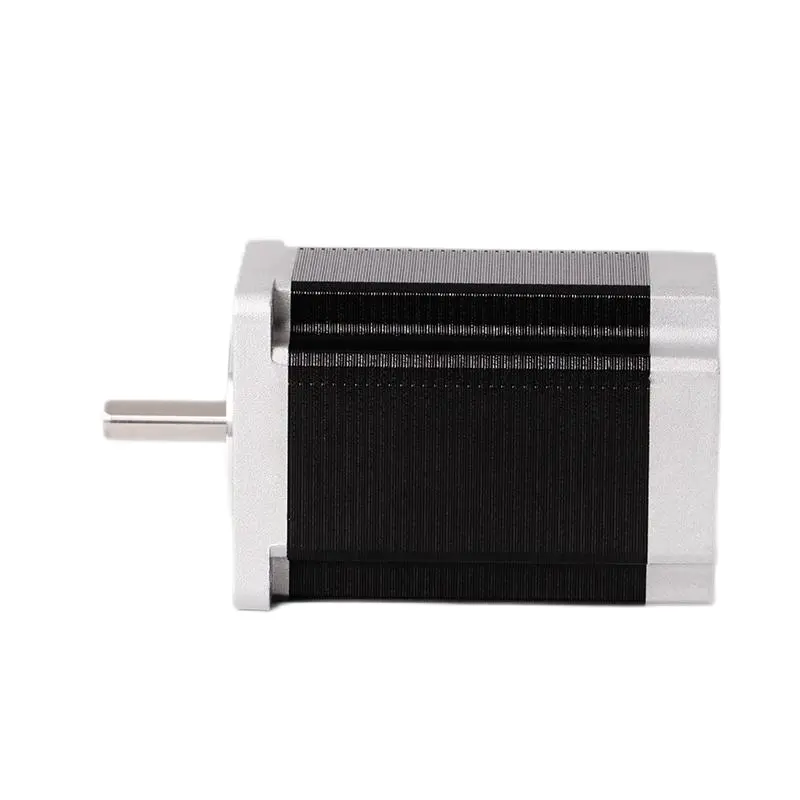

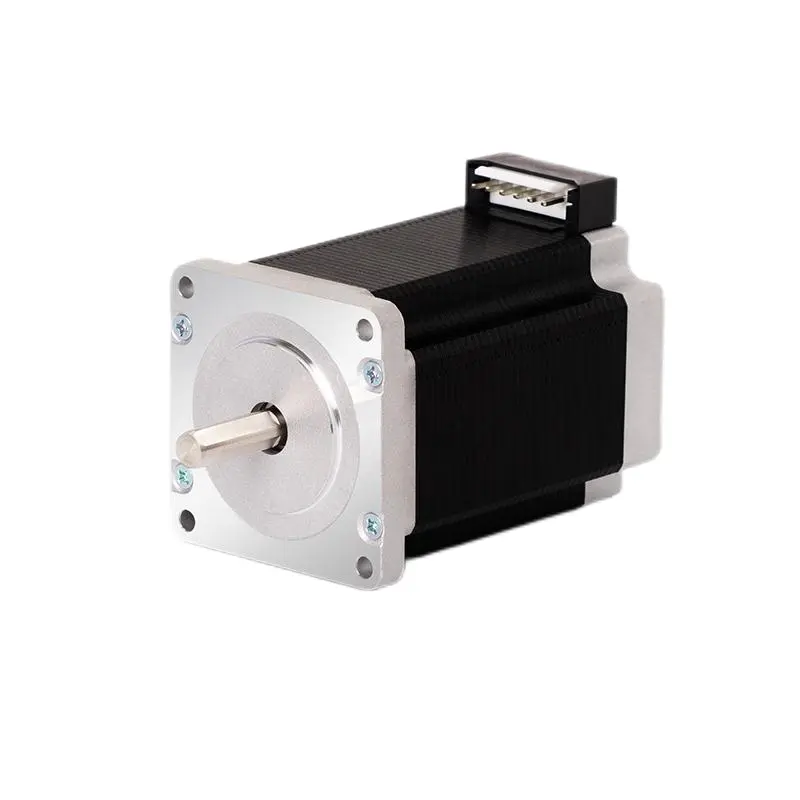

KST-60B68-0002 NEMA 24 5-Phase Stepper Motor – 0.72° Step Angle, 2.4A, 1.6N·m Holding Torque, 60mm Frame

The KST-60B68-0002 is a robust and precise 5-phase stepper motor with a 60mm frame size (NEMA 24), designed for high-torque and fine-resolution industrial applications. Featuring a 0.72° step angle, it delivers exceptional positioning accuracy and smoother operation compared to traditional 2-phase motors.

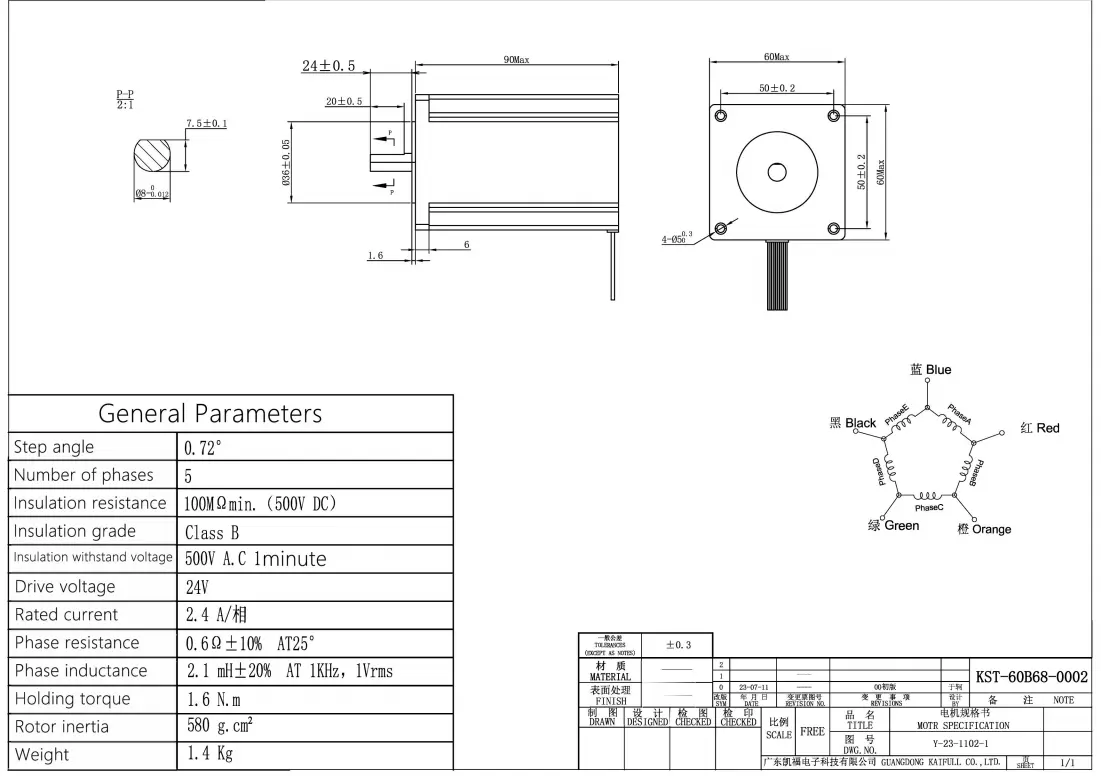

Operating at a rated current of 2.4A, this model offers a holding torque of 1.6N·m, making it ideal for heavy-duty motion control tasks. The rotor inertia of 580 g·cm² ensures steady performance during acceleration and deceleration, while the 8mm shaft diameter and 24mm shaft length provide compatibility with a wide range of mechanical systems. The motor's total length is 90mm, and it weighs 1400g, suitable for CNC machines, automated tools, semiconductor equipment, and more.
