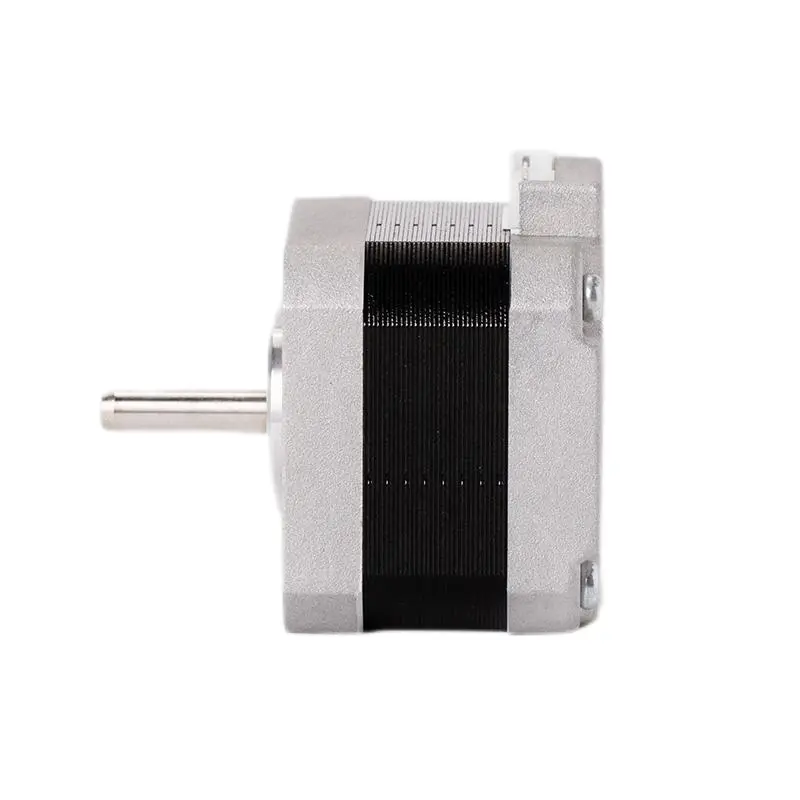

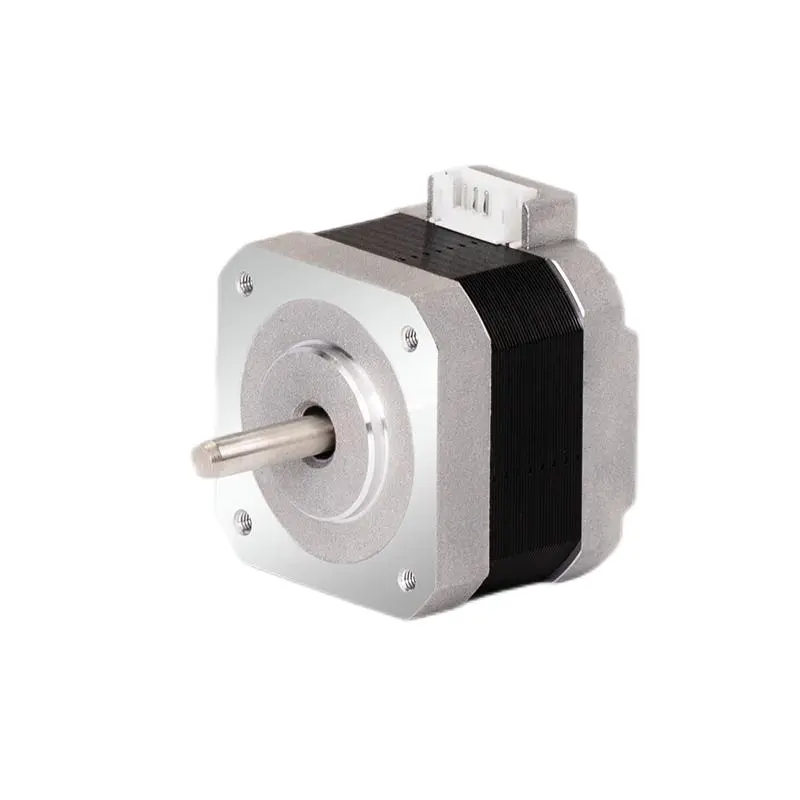

KST-42D16-0001 1.8° Stepper Motor, 0.85A Rated Current, 0.24N·m Holding Torque, 42mm Frame Size
KST-42D16-0001 1.8° Stepper Motor, 0.85A Rated Current, 0.24N·m Holding Torque, 42mm Frame Size
KST-42D16-0001 1.8° Stepper Motor, 0.85A Rated Current, 0.24N·m Holding Torque, 42mm Frame Size

KST-42D16-0001 1.8° Stepper Motor, 0.85A Rated Current, 0.24N·m Holding Torque, 42mm Frame Size

The KST-42D16-0001 stepper motor features 1.8° step angle, 0.85A rated current, and 0.24N·m holding torque. Ideal for small-scale CNC, robotics, and automated devices requiring precise motion control.

    Contact us Download
    Detail description
    Technical parameter
    Product size
    drawing

    The KST-42D16-0001 is a compact 1.8° two-phase stepper motor ideal for low current applications in precise motion control systems. With a rated current of 0.85A and a holding torque of 0.24N·m, this motor offers efficient and reliable performance for smaller devices and automation solutions.

    Key specifications for the KST-42D16-0001 stepper motor include:

    • Phase resistance of 5.7Ω ± 15% and phase inductance of 8.1mH ± 20% at 1KHz, ensuring stable operation for light-duty applications.
    • Insulation resistance of 100MΩ min. at 500V DC, providing excellent electrical insulation for extended safety.
    • Class B insulation with a 500V AC withstand voltage, offering industrial-grade reliability.
    • Rotor inertia of 35g·cm² and a weight of 230g, ideal for applications requiring low inertia and space efficiency.

    This motor is suitable for use in small-scale CNC machines, robotic systems, automated devices, and low-power motion control applications that require compact size, reliability, and precision.

    ●Motor configuration and performance parameters

    Standard parameter

    Step Angle

    1.8°

    Phase number

    two-phase

    Insulation resistance

    100MΩmin.(500V DC)

    Insulation class

    Class B

    Insulation withstand voltage

    500V A.C 1 min

    Rated current

    0.85A

    Phase resistance

    5.7Ω±15%  AT25°

    Phase inductance

    8.1mH±20% AT 1KHz, 1Vrms

    Holding torque

    0.24N.m

    Rotor inertia

    35g.cm²

    weight

    230g

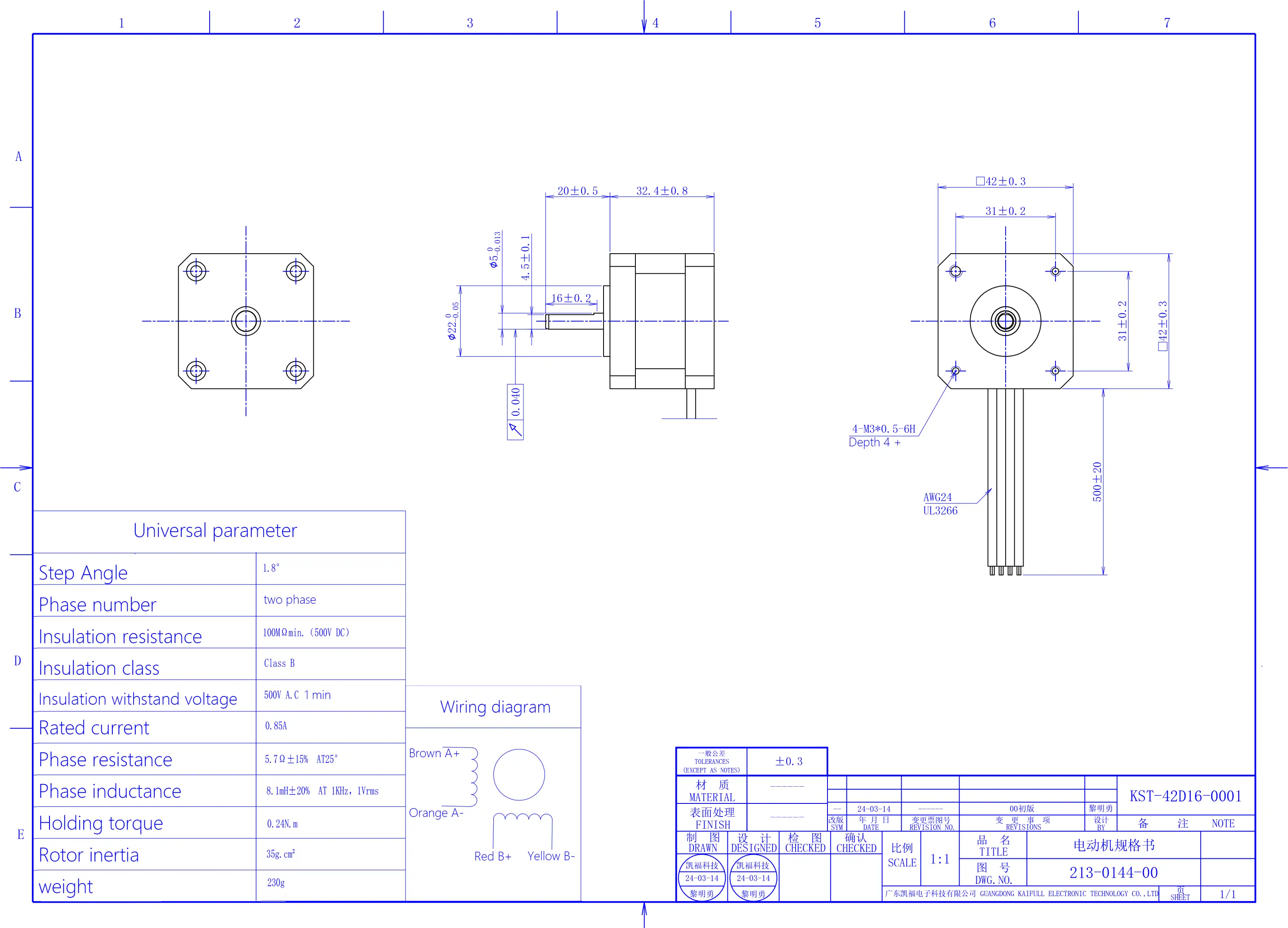

    KST-42D16-0001_00
